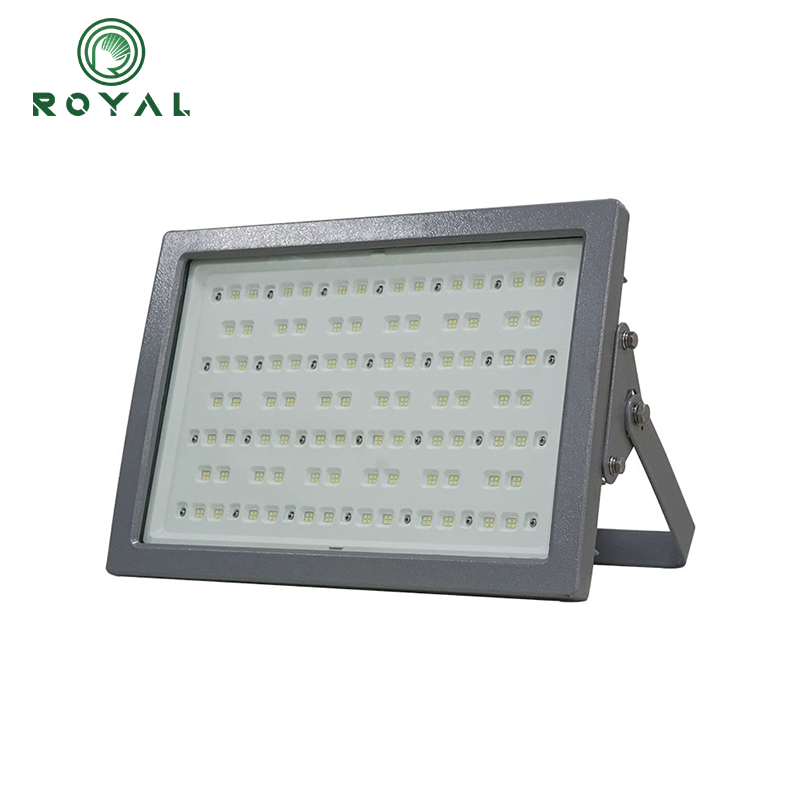

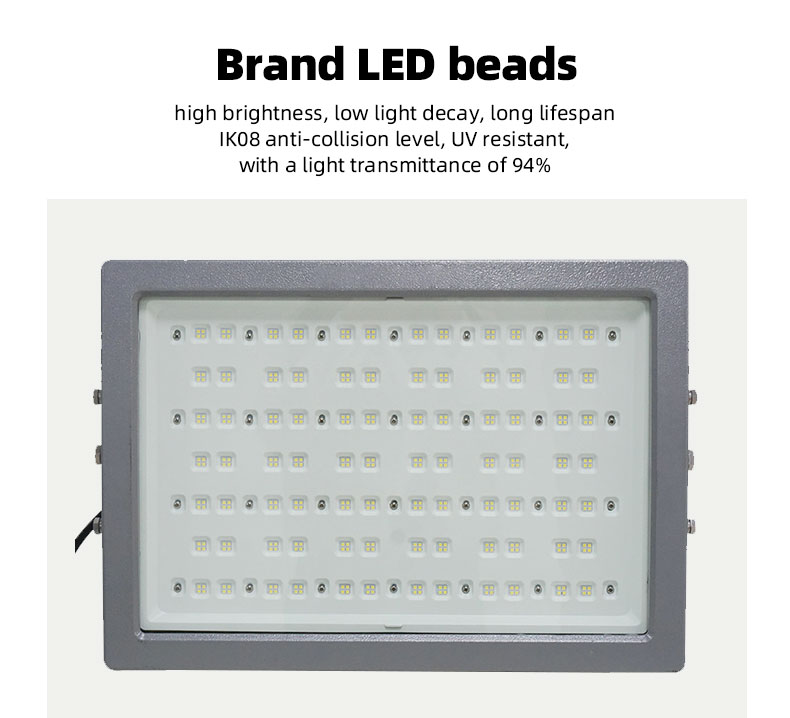

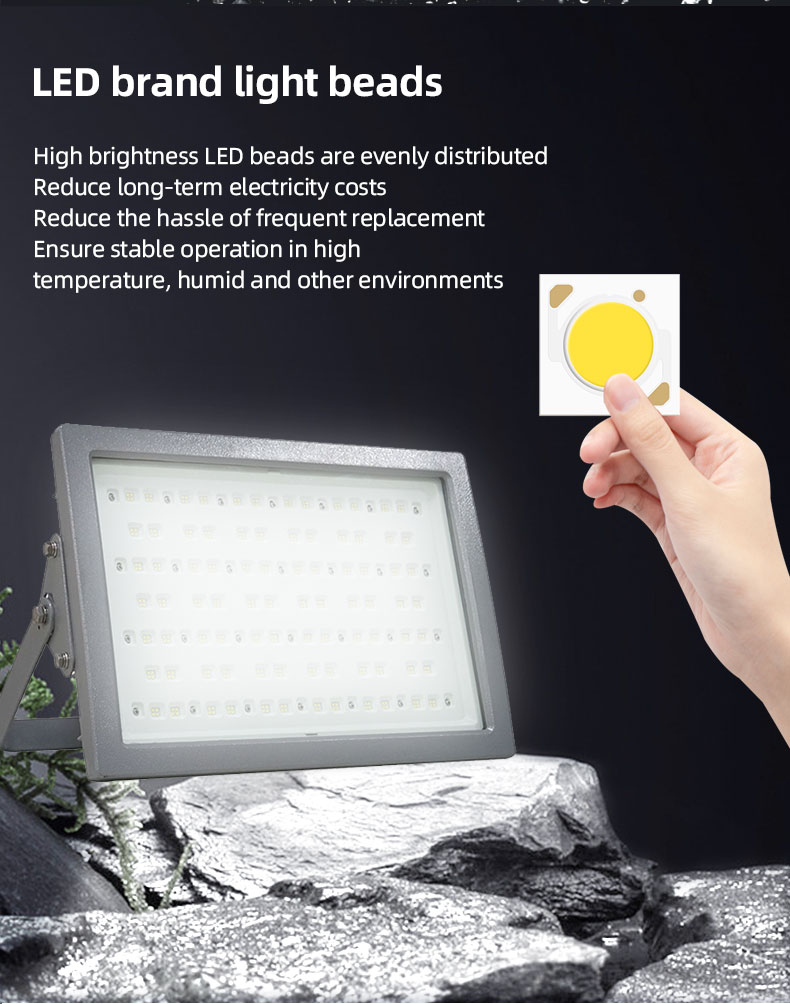

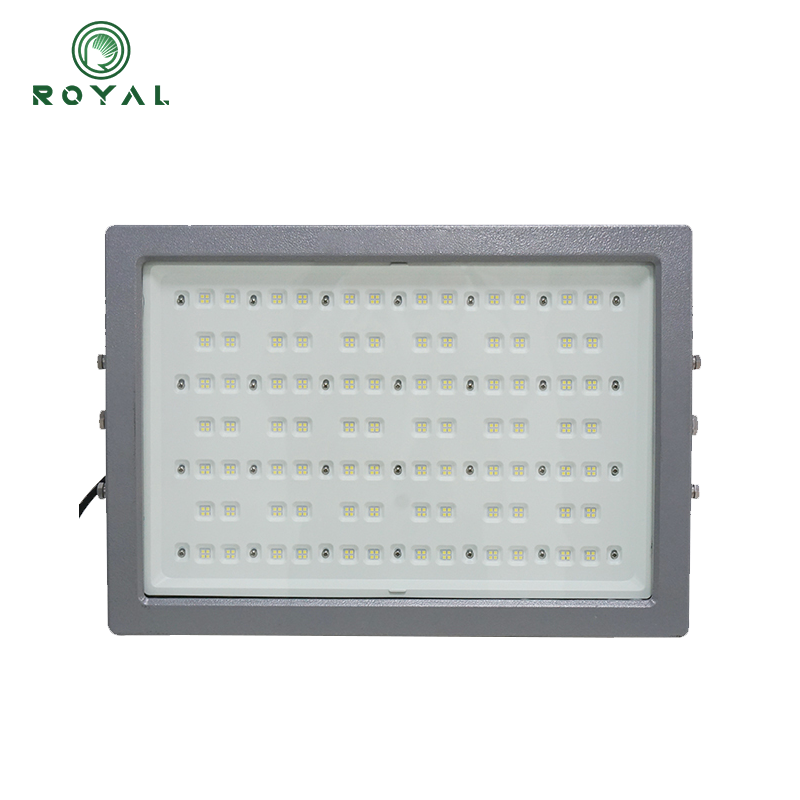

Adopting imported LUMILEDS light source, high brightness, low light decay, and long lifespan
Driven by top international brands, it features over temperature protection, high conversion rate, high power factor, and high lightning protection;
ADC12 is die cast and has high thermal conductivity, allowing heat to be quickly dissipated from the body and balancing the temperature inside and outside the lamp body,Reduce temperature difference, lower junction temperature of light source, and minimize light attenuation of light source;

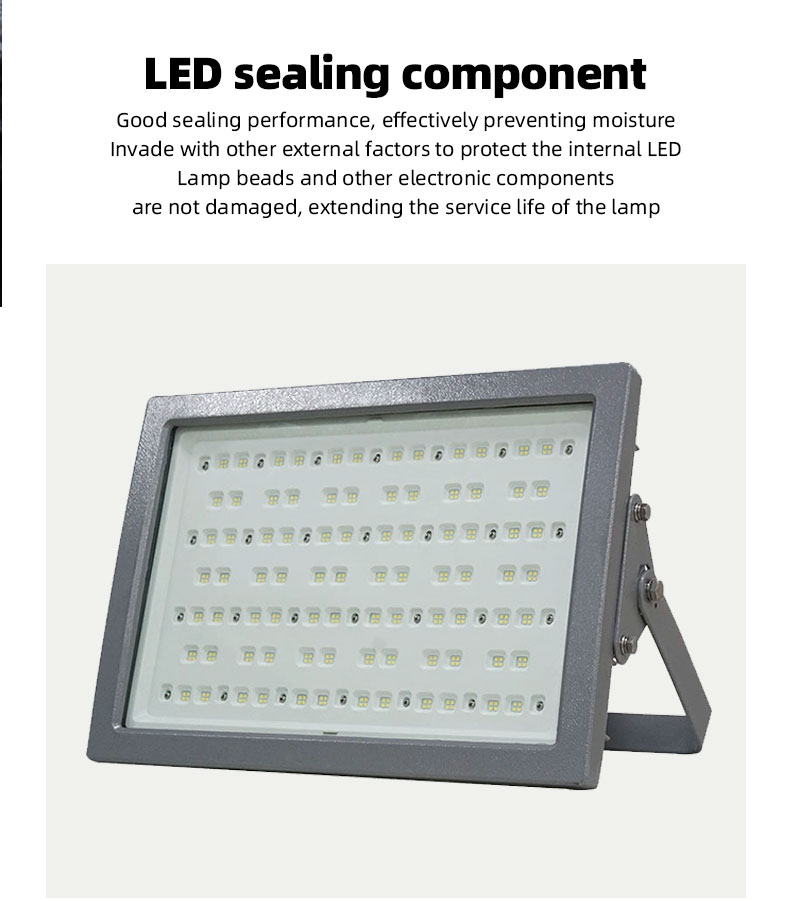

The protection level can reach IP66, completely preventing dust from entering and high-pressure water spraying, suitable for humid, dusty or corrosive environments (such as ports, mines, chemical plants);
PARAMETER | |||||||||||
Model | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A | ROF03-A |
Power | 50W | 80W | 100W | 120W | 150W | 200W | 240W | 300W | 400W | 500W | 600W |
Lumen | 5500LM | 8800LM | 11000LM | 13200LM | 16500LM | 22000LM | 26400LM | 33000LM | 44000LM | 55000LM | 66000LM |
Input voltage | AC100-265V | ||||||||||
LED driver | SUNCOM | ||||||||||
LED Chips | PHILIPS | ||||||||||
CCT | 6000K (CUSTOMIZABLE 3000-6500K) | ||||||||||
CRI | Ra≥70 | ||||||||||
PF | ≥0.9 | ||||||||||
Beam angle | 110 | ||||||||||
Body material | ALUMINUM SHELL | ||||||||||
IP Rating | IP66 | ||||||||||
Working Temp | -25℃~+50℃ | ||||||||||
Life Span | 50000h | ||||||||||
Warranty | 5 YEARS | ||||||||||
Installation method | Bracket installation | ||||||||||
Applicable scenarios | Steel mills, chemical factories, shipyards, oil factories, etc |
