Features for explosion proof high bay lightapplication: zone 1 zone2 , zone 21, zone 22Ex mark: Ex de mbPower range: 50w 100w 150w 200wWide voltage:AC100-277V , 50/60Hz

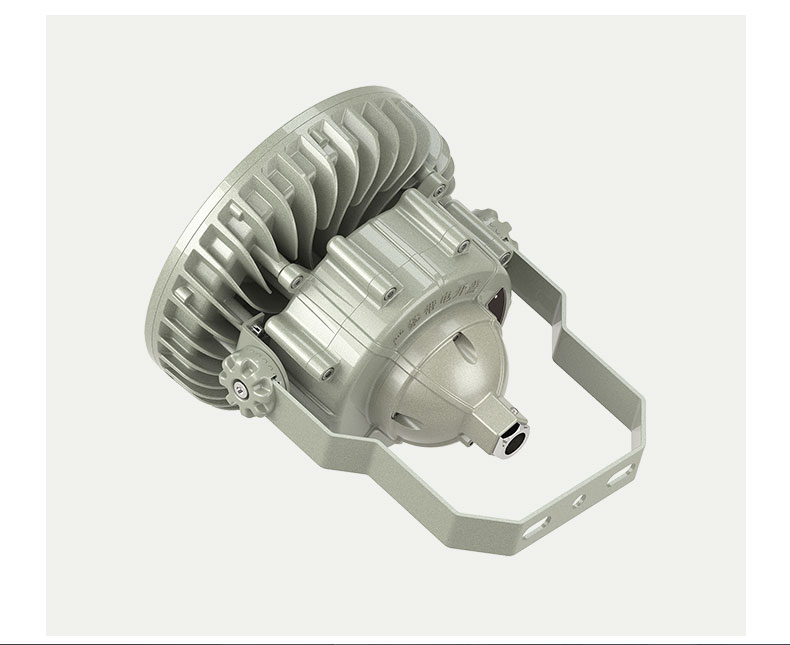

Features for explosion proof high bay light
application: zone 1 zone2 , zone 21, zone 22
Ex mark: Ex de mb
Power range: 50w 100w 150w 200w
Wide voltage:AC100-277V , 50/60Hz
| photoelectric parameters | ||||
| Model | ROF01-50 | ROF01-100 | ROF01-150 | ROF01-200 |
| Power | 50W | 100W | 150W | 200W |
| Lumen | 5500LM | 11000LM | 16500LM | 22000LM |
| Input voltage | AC100-277V | |||
| Light efficiency | 110LM/W | |||
| LED driver | MeanWell | |||
| Lumileds | Cree | |||
| CCT | 6000K(selectable3000-6500K） | |||
| CRI | Ra≥70 | |||
| PF | ≥0.9 | |||
| Beam angle | 110 | |||

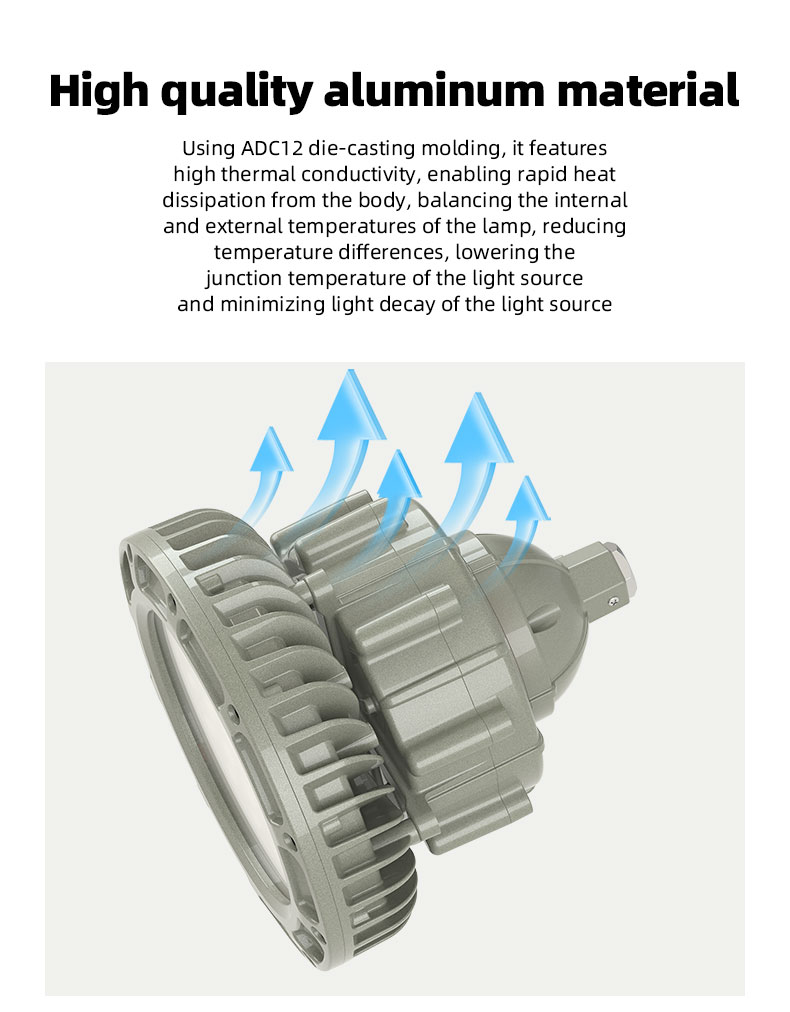

| Body material | Aluminum shell material | |||
| IP Rating | IP65 | |||
| Working Temp. | ’-25℃~+50℃ | |||
| Life Span | 50000hrs | |||
| Warranty | 8 years | |||
| Size and Application | ||||
| Model | ROF01-50 | ROF01-100 | ROF01-150 | ROF01-200 |
| Power | 50W | 100W | 150W | 200W |
| Product size(mm) | 265*245 | 265*245 | 300*245 | 300*245 |
| Net weight(kg) | 8 | 8.5 | 10.5 | 10.5 |
| Installation method | Brackets | |||
| Application | Oil extraction, refining, chemical industry, military industry | |||
Drawing for the IECEX Explosion Proof High Bay Light
