Features for Explosion proof flood light1.Power range: 50w-400w2. Emergency type can be customized3.Application: Zone 1 Zone 2 Zone 21 zone 22
Features for Explosion proof flood light
1.Power range: 50w-400w
2. Emergency type can be customized
3.Application: Zone 1 Zone 2 Zone 21 zone 22
| photoelectric parameters | ||||||
| Model | ROF03-70 | ROF03-100 | ROF03-150 | ROF03-200 | ROF03-300 | ROF03-400 |
| Power | 70W | 100W | 150W | 200W | 300W | 400W |
| Lumen | 7700LM | 11000LM | 16500LM | 22000LM | 33000LM | 44000LM |
| Input voltage | AC100-265V | |||||
| Light efficiency | 110LM/W | |||||
| LED driver | Sosen/Net | |||||

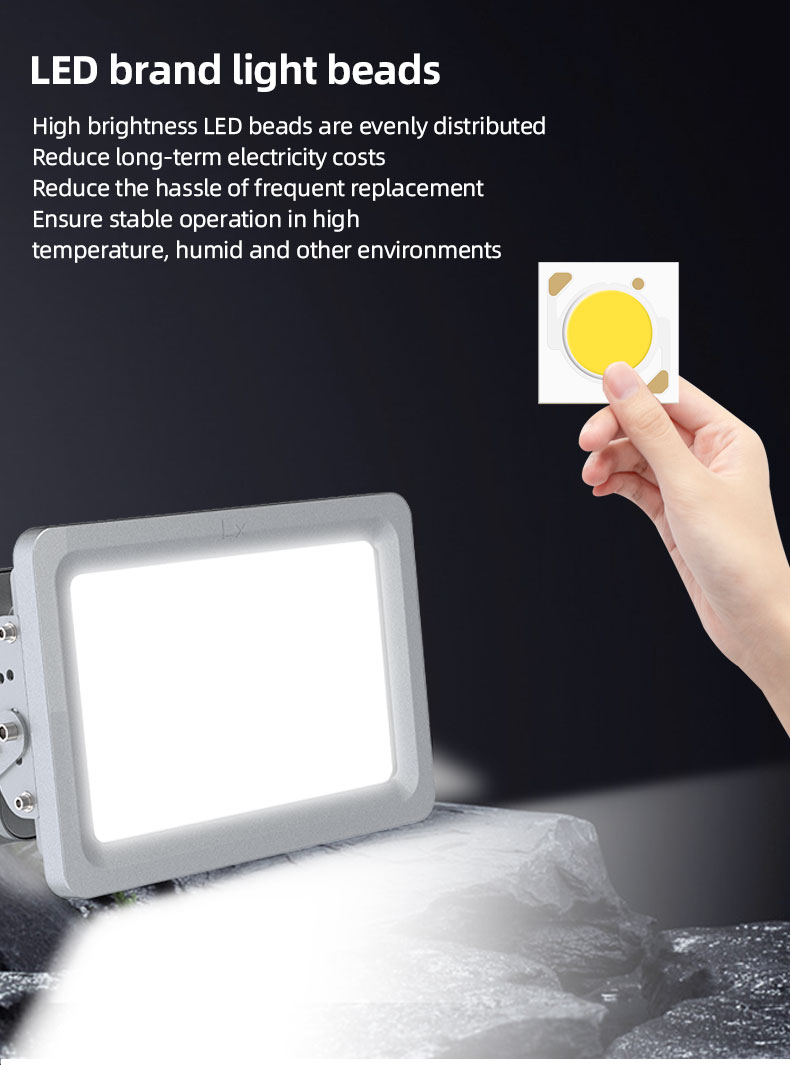

| Lumileds | Philips3030 | |||||
| CCT | 6000K(selectable3000-6500K） | |||||
| CRI | Ra≥70 | |||||
| PF | ≥0.9 | |||||
| Beam angle | 110 | |||||

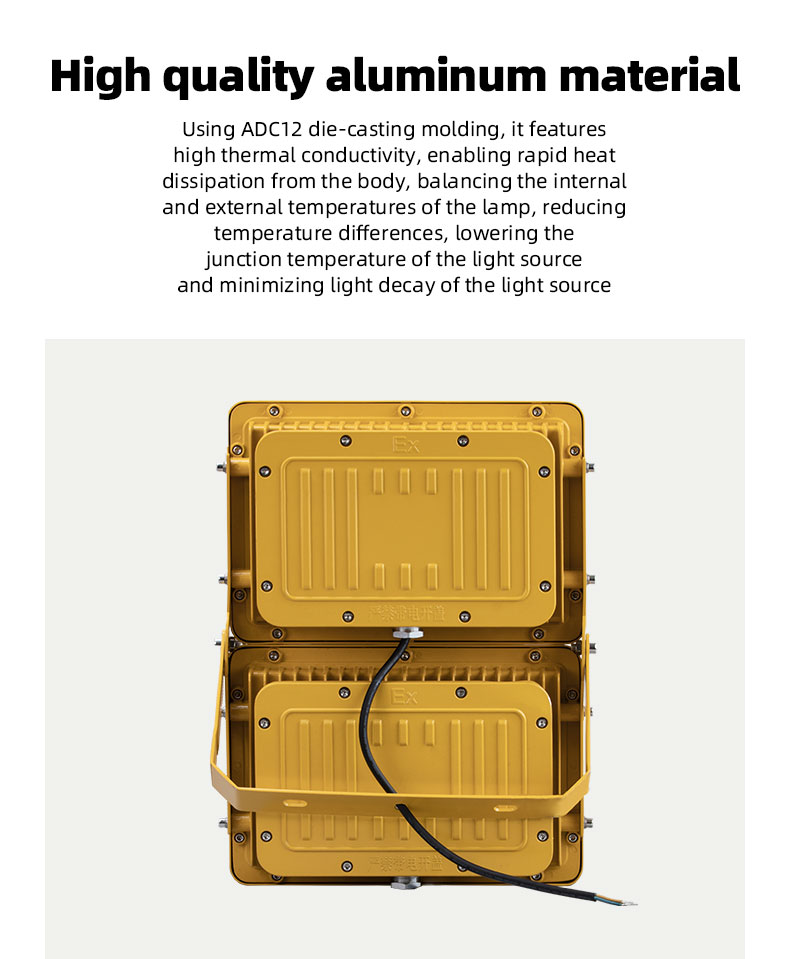

| Body material | Aluminum shell material | |||||

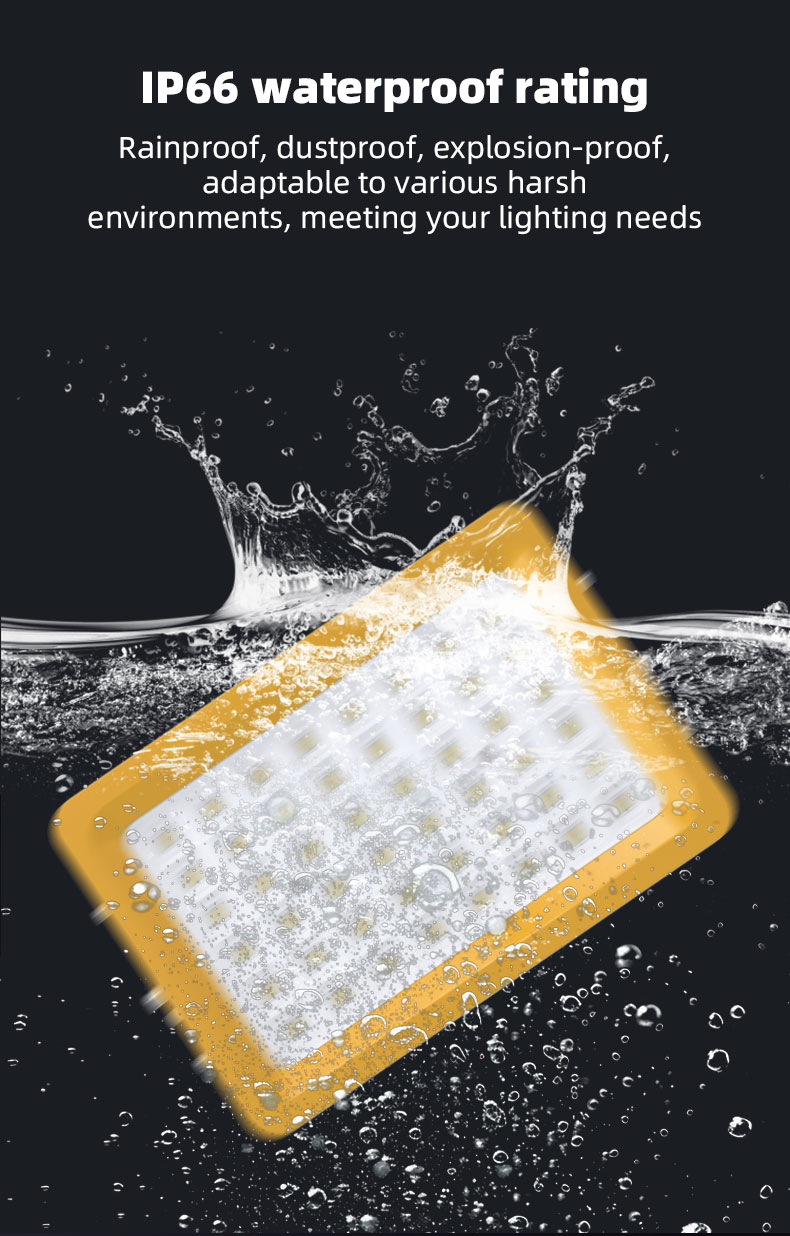

| IP Rating | IP66 | |||||
| Working Temp. | ’-25℃~+50℃ | |||||
| Life Span | 50000h | |||||
| Warranty | Three years | |||||
| Size and Application | ||||||
| Model | ROF03-70 | ROF03-100 | ROF03-150 | ROF03-200 | ROF03-300 | ROF03-400 |
| Power | 70W | 100W | 150W | 200W | 300W | 400W |
| Product size(mm) | 260*170*120 | 350*220*180 | 350*220*180 | 440*290*220 | 350*440*180 | 440*580*220 |
| Net weight(kg) | 1.9kg | 4.5kg | 4.7kg | 6.8kg | 9.6kg | 14kg |
| Packing size(mm) | 315*230*90 | 375*270*145 | 375*270*145 | 460*340*145 | 510*370*145 | 630*460*165 |

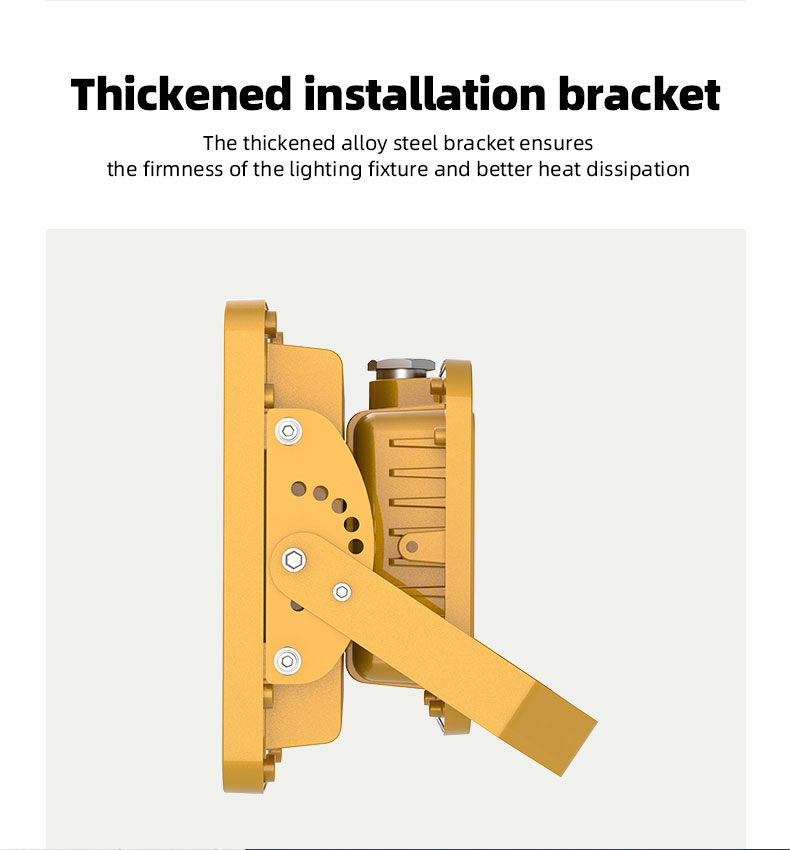

| Installation method | Brackets | |||||
| Application | Oil extraction, refining, chemical industry, military industry | |||||
Drawing for explosion proof light
