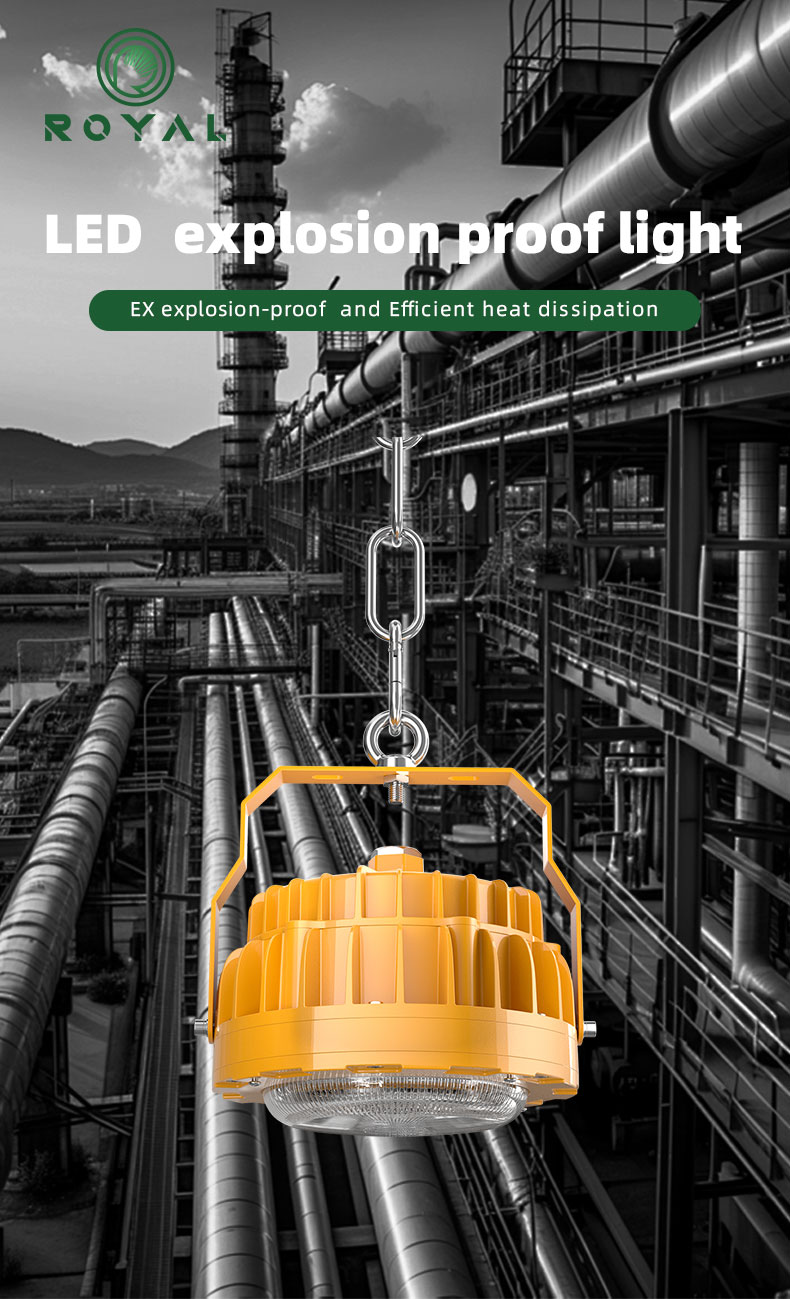

Features for explosion proof high bay lightBody color: Grey, YellowMaterial:Die casting aluminumProtective net: can be matchingEmergency type: can be customized
Features for explosion proof high bay light
Body color: Grey, Yellow
Material:Die casting aluminum
Protective net: can be matching
Emergency type: can be customized
| photoelectric parameters | ||||
| Model | ROF02-50 | ROF02-80 | ROF02-100 | ROF02-150 |
| Power | 50W | 80W | 100W | 150W |
| Lumen | 5500LM | 8800LM | 11000LM | 16500LM |
| Input voltage | AC100-277V | |||
| Light efficiency | 110LM/W | |||
| LED driver | Suncom, can be customized | |||
| CCT | 6000K(selectable3000-6500K） | |||
| CRI | Ra≥70 | |||
| PF | ≥0.9 | |||
| Beam angle | 110 | |||
| Body material | Aluminum shell material | |||

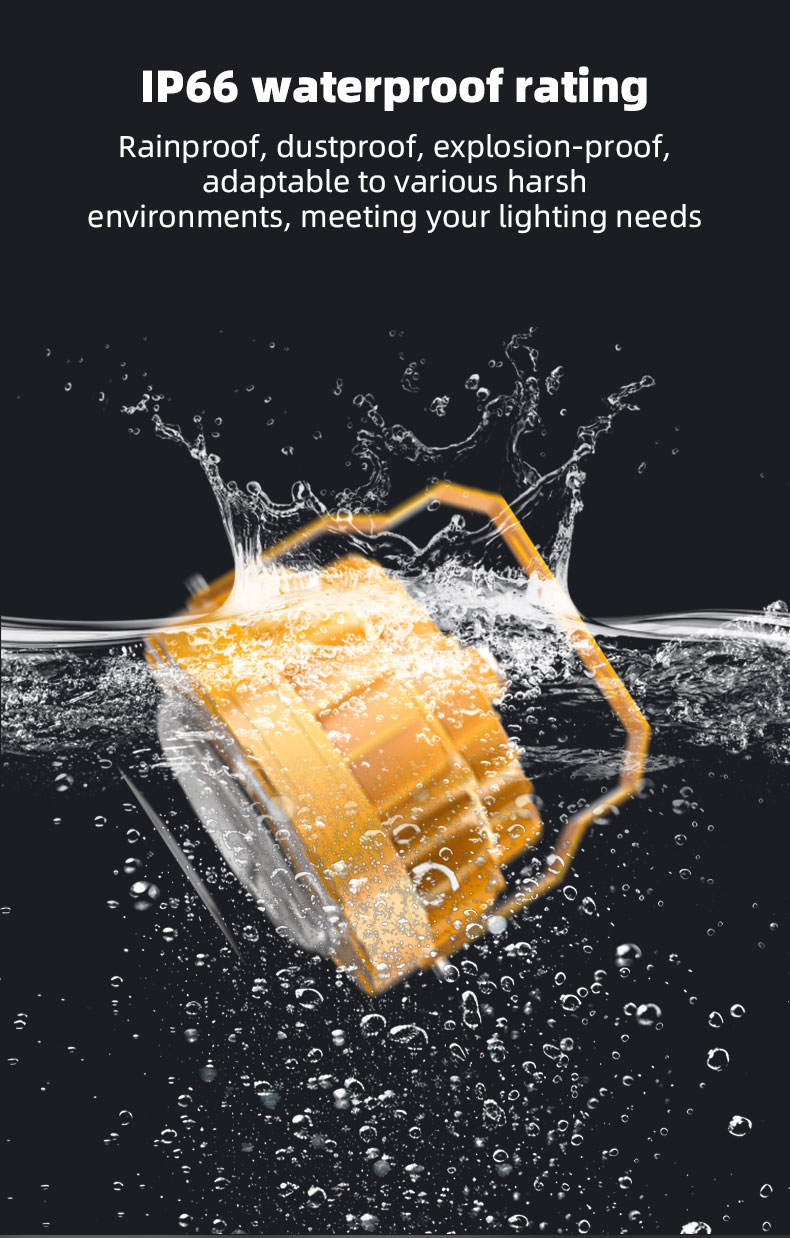

| IP Rating | IP66 | |||
| Working Temp. | ’-25℃~+50℃ | |||
| Life Span | 50000h | |||
| Warranty | 5 years | |||
| Size and Application | ||||
| Model | ROF02-50 | ROF02-80 | ROF02-100 | ROF02-150 |
| Power | 50W | 80W | 100W | 150W |
| Product size(mm) | 198*216 | 198*216 | 226*230 | 226*230 |
| Net weight(kg) | 3.2 | 3.2 | 4.5 | 4.7 |
| Packing size(mm) | 235*235*230 | 235*235*230 | 265*265*220 | 265*265*220 |

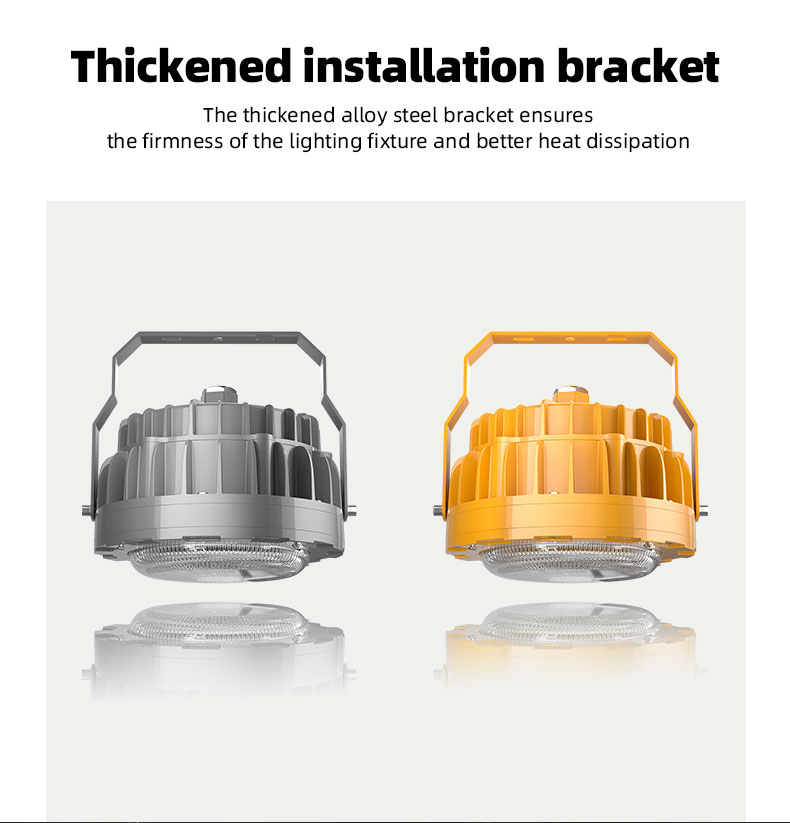

| Installation method | Brackets | |||

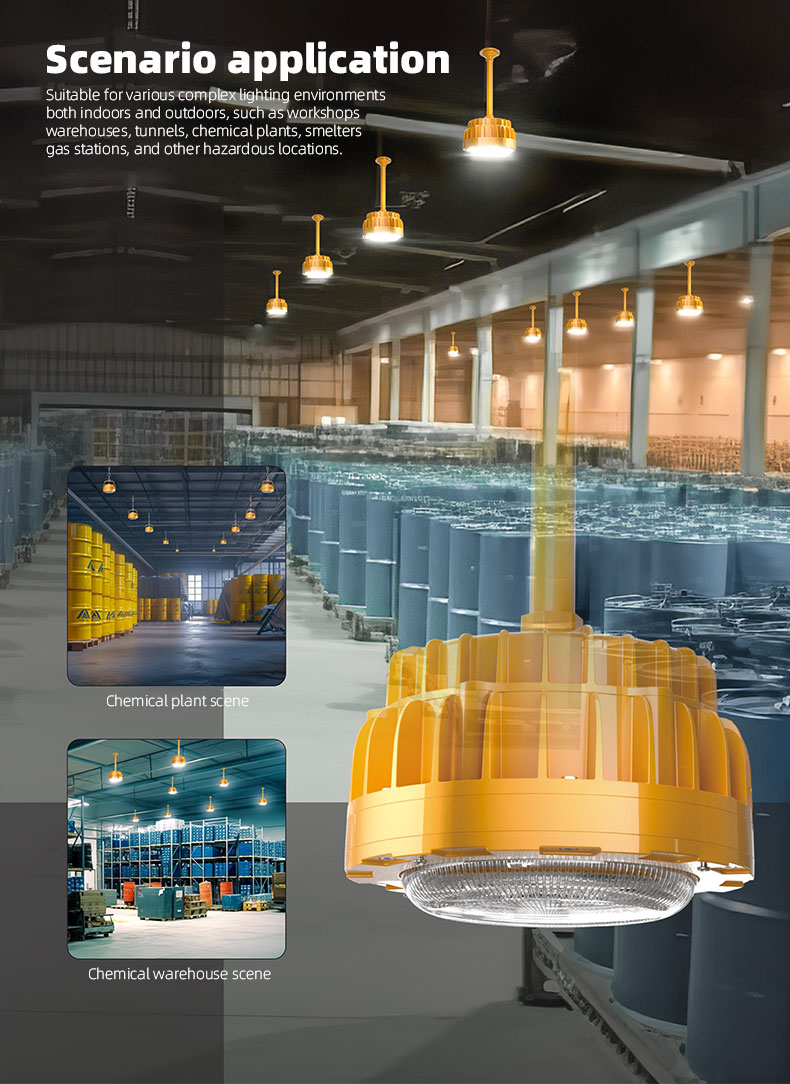

| Application | Oil extraction, refining, chemical industry, military industry | |||
Drawing for the explosion proof light
Installation for reference
