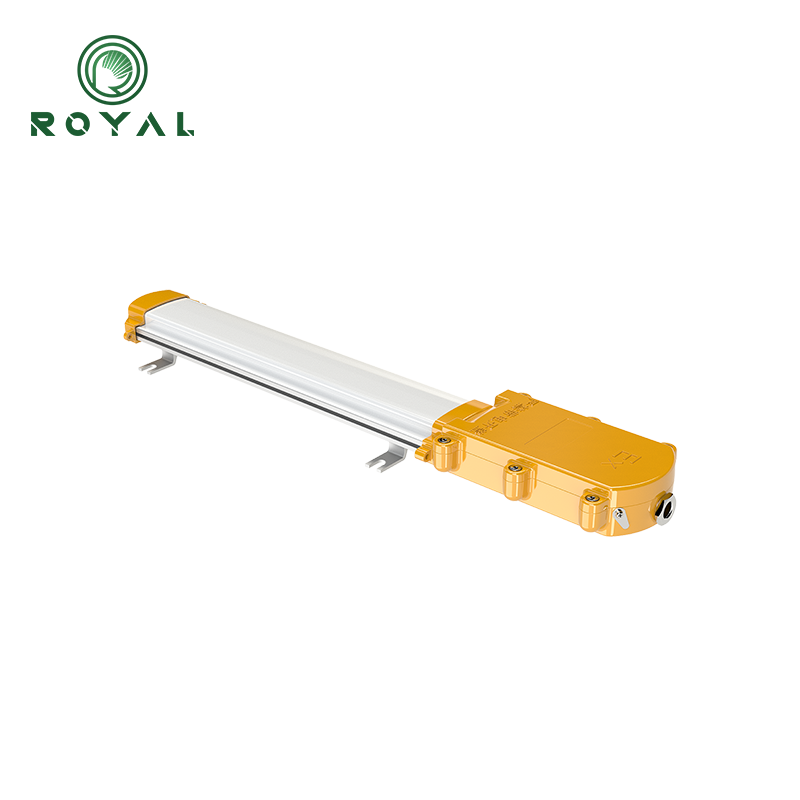

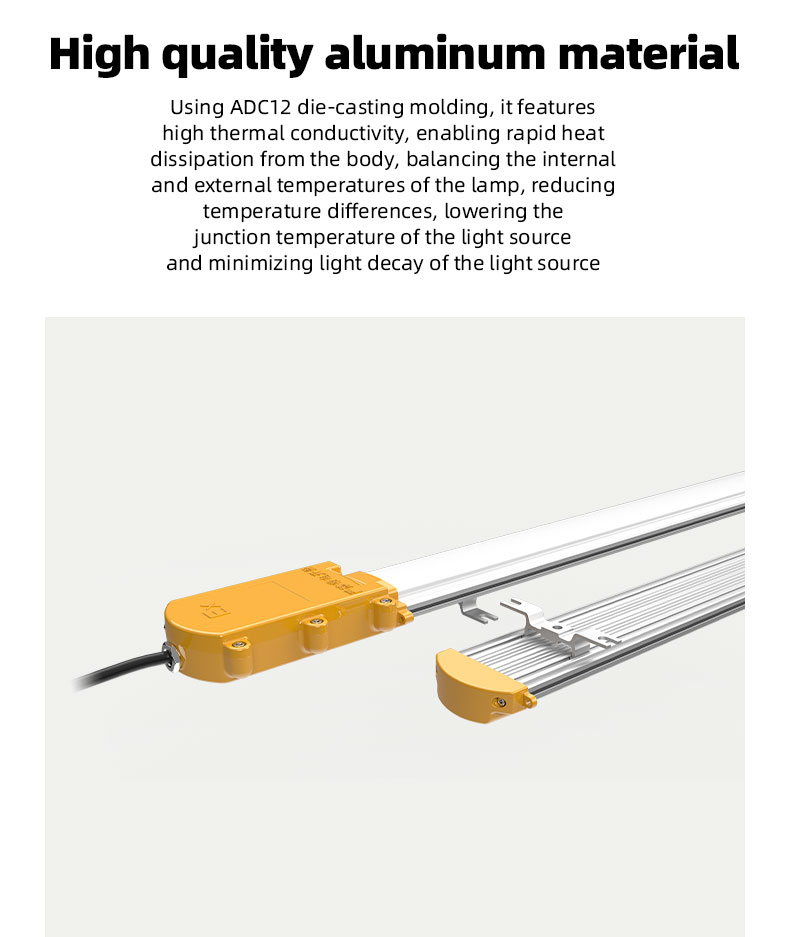

1. The lamp is made of aluminum alloy die-casting and coated with bitter powder on the surface, which has strong corrosion resistance. It uses tempered glass with high light transmittance and strong impact resistance.

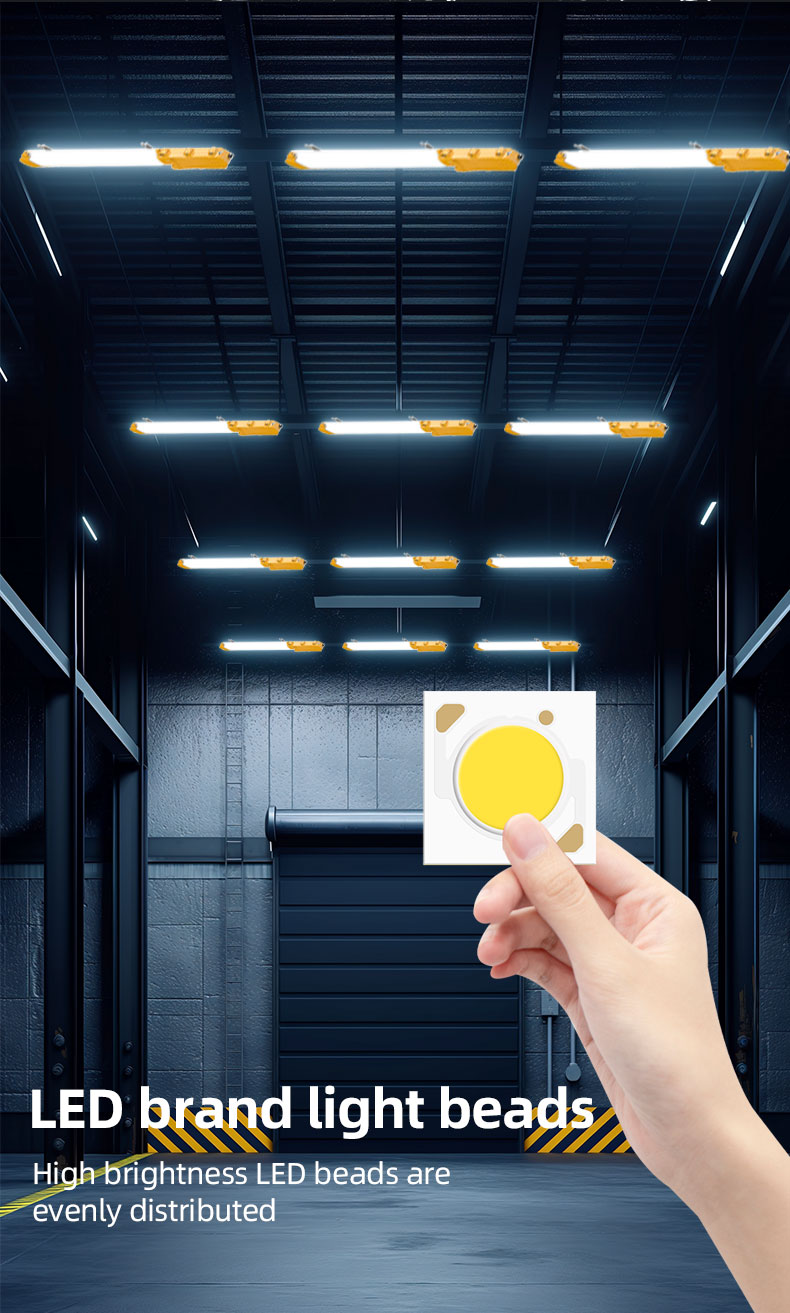

2. Using high-quality imported LED chips, it has high color rendering index, high luminous flux, low light attenuation, and saves 50-70% electricity compared to traditional light sources.

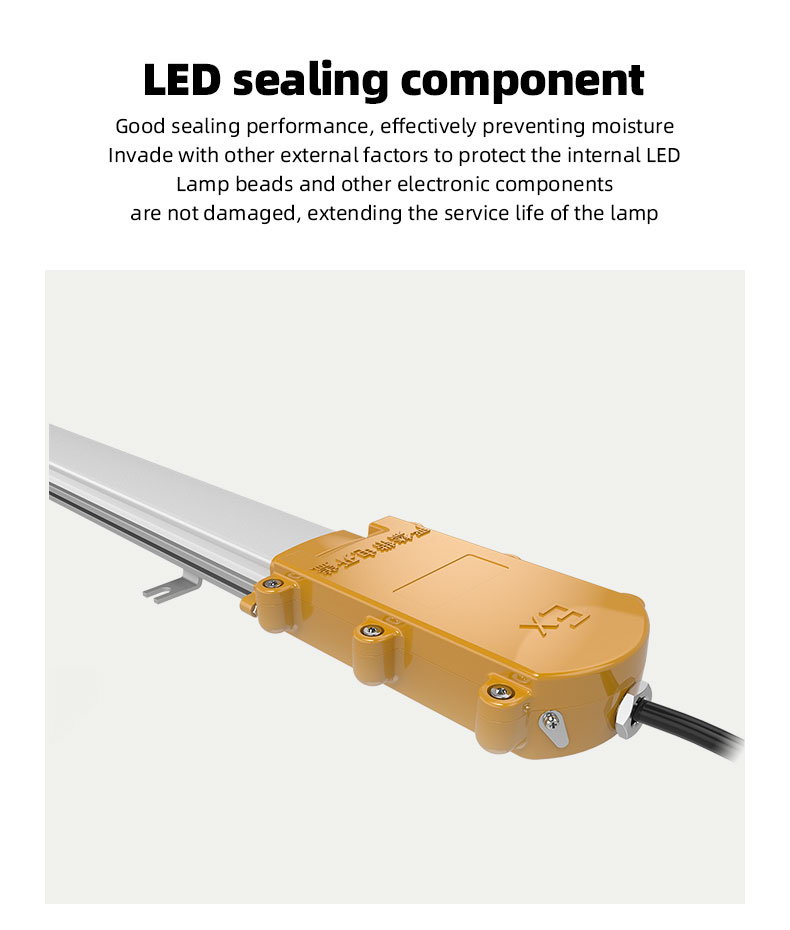

3. Adopting Huace explosion-proof high glue isolation drive, it has a surge resistance of 5KV, outputs low voltage current, and is safer in preventing leakage.
| photoelectric parameters | ||
| Model | ROF06-36 | ROF06-80 |
| Power | 36W | 80W |
| Lumen | 3960LM | 8800LM |
| Input voltage | AC100-265V | |
| Light efficiency | 110LM/W | |
| LED driver | Net | |
| Lumileds | Philips3030 | |
| CCT | 6000K(selectable3000-6500K) | |
| CRI | Ra≥70 | |
| PF | ≥0.9 | |
| Beam angle | 110 | |
| Body material | Aluminum shell materia | |
| IP Rating | IP65 | |
| Working Temp. | -25℃~+50℃ | |
| Life Span | 50000h | |
| Warranty | Three years | |
Size and Application Model | ||
| Model | ROF06-36 | ROF06-80 |
| Power | 36W | 80W |
| Product size(mm) | 600*115 | 1205*115 |
| Net weight(kg) | 1.72kg | 2.4kg |
| Packing size(mm) | / | / |
| Number of LED beads | / | / |
| Installation height(m) | / | / |
| Installation Space(m) | / | / |
| Installation method | Brackets | |

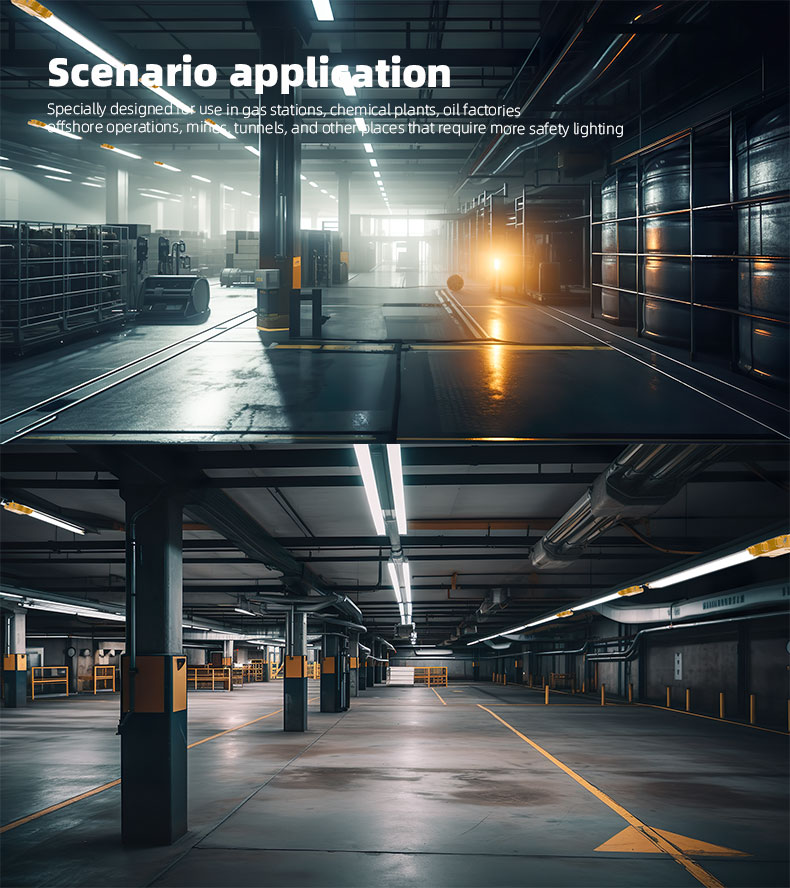

| Application | Oil extraction, refining, chemical industry, military industry | |
