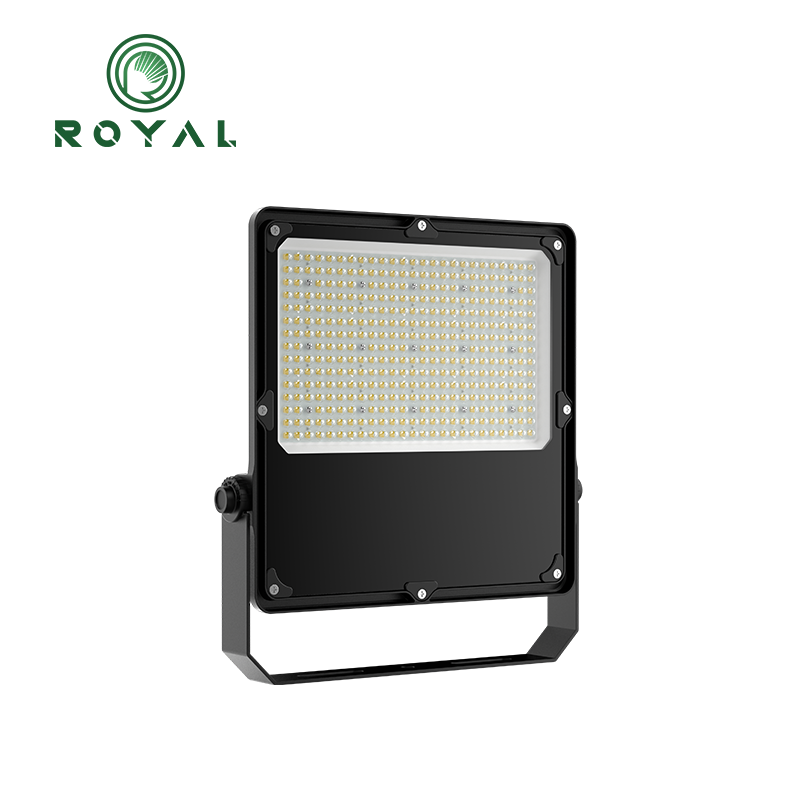

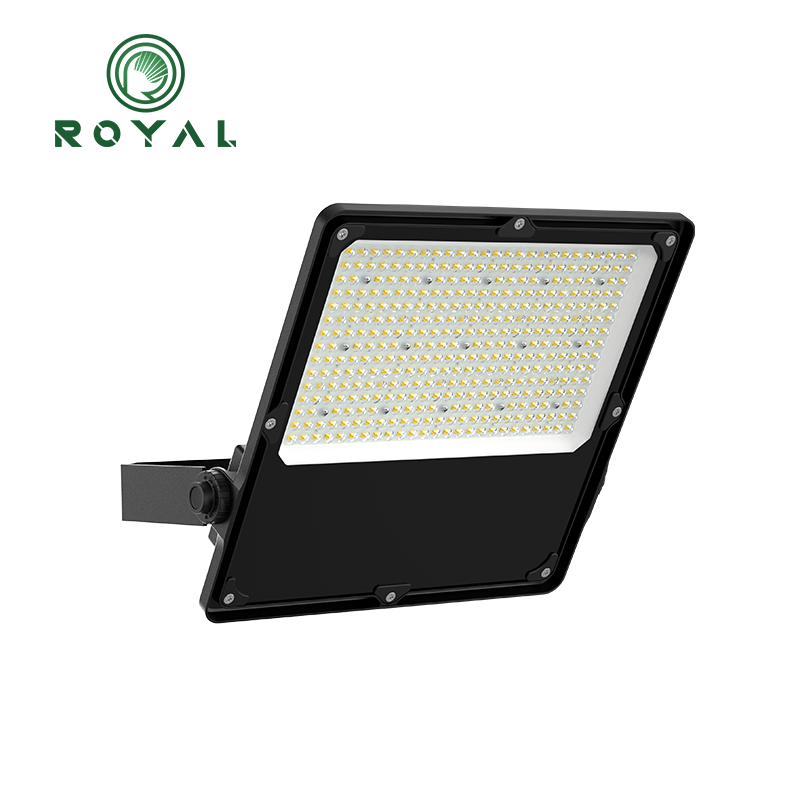

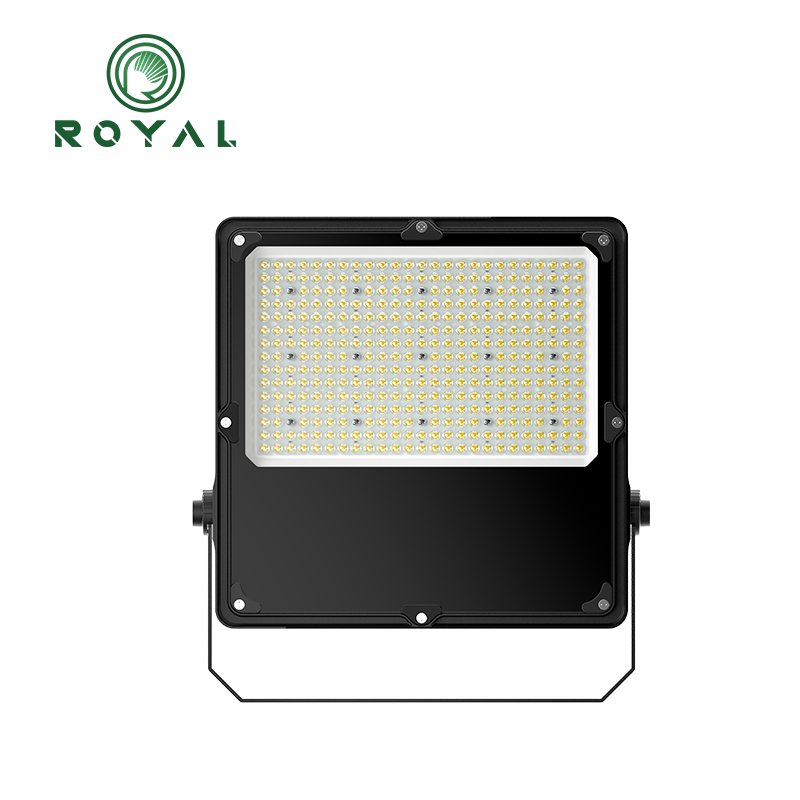

Brand light source, high brightness, low light decay, long lifespan.Brand driven, with features such as over temperature protection, high conversion efficiency,and high power factorBrand driven, with features such as ove···

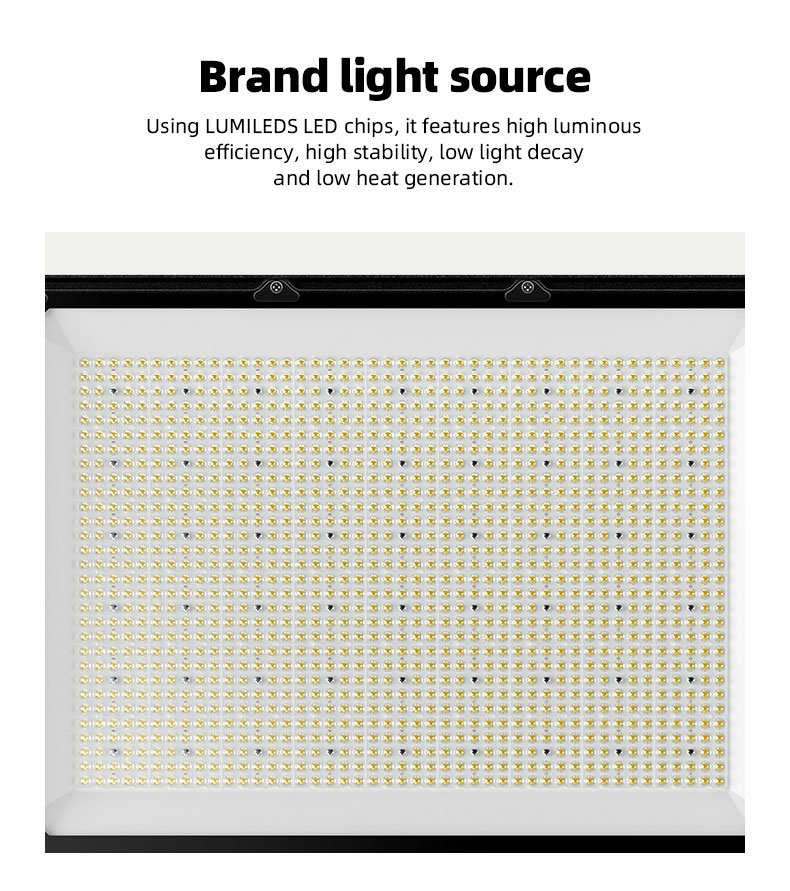

Brand light source, high brightness, low light decay, long lifespan.
Brand driven, with features such as over temperature protection, high conversion efficiency,and high power factorBrand driven, with features such as over temperature protection, highconversion efficiency, and high power factor.

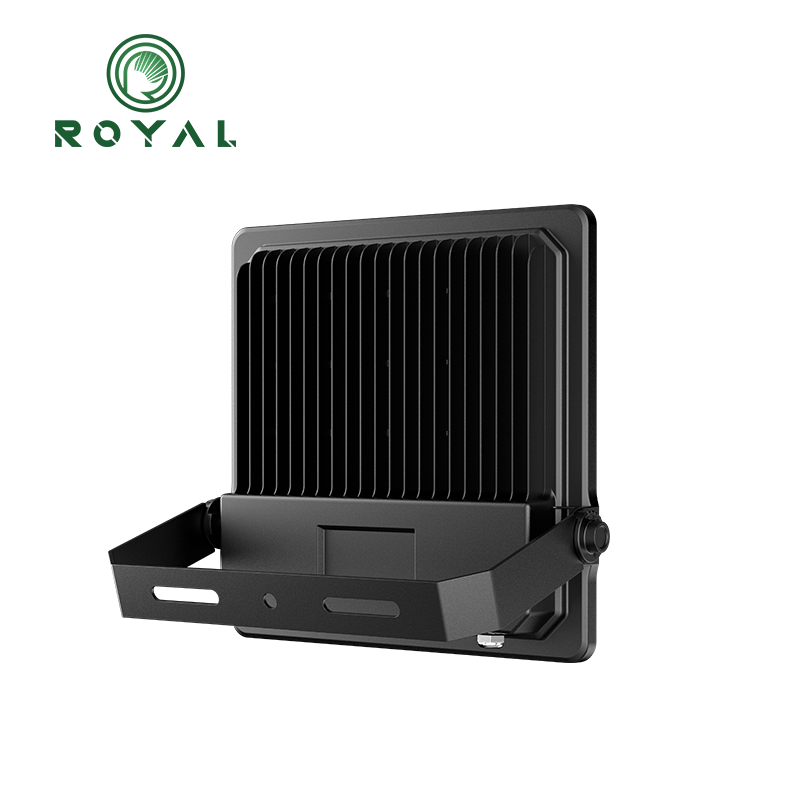

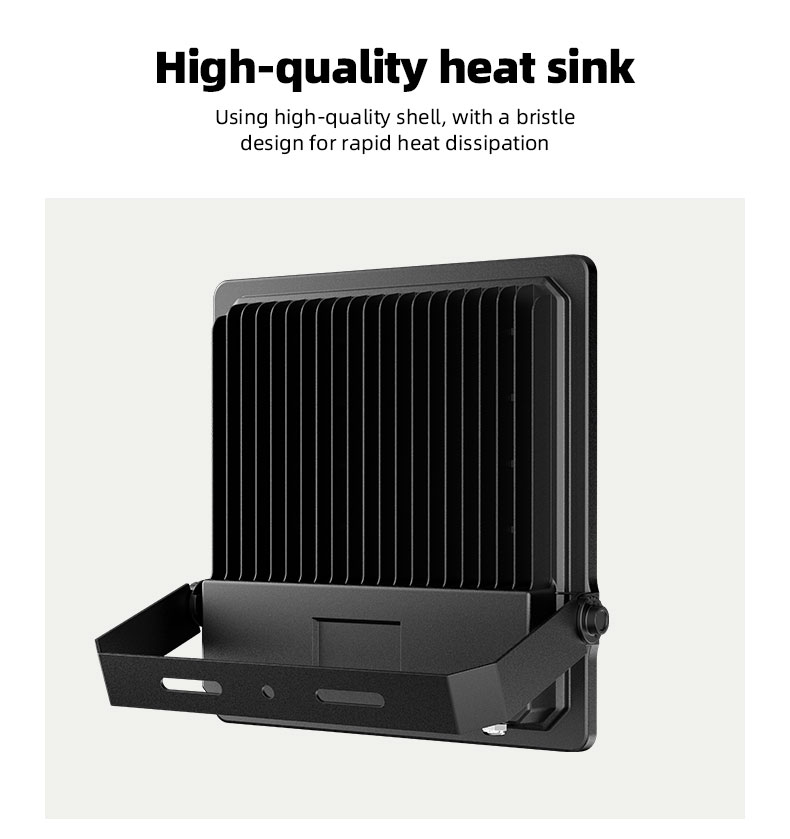

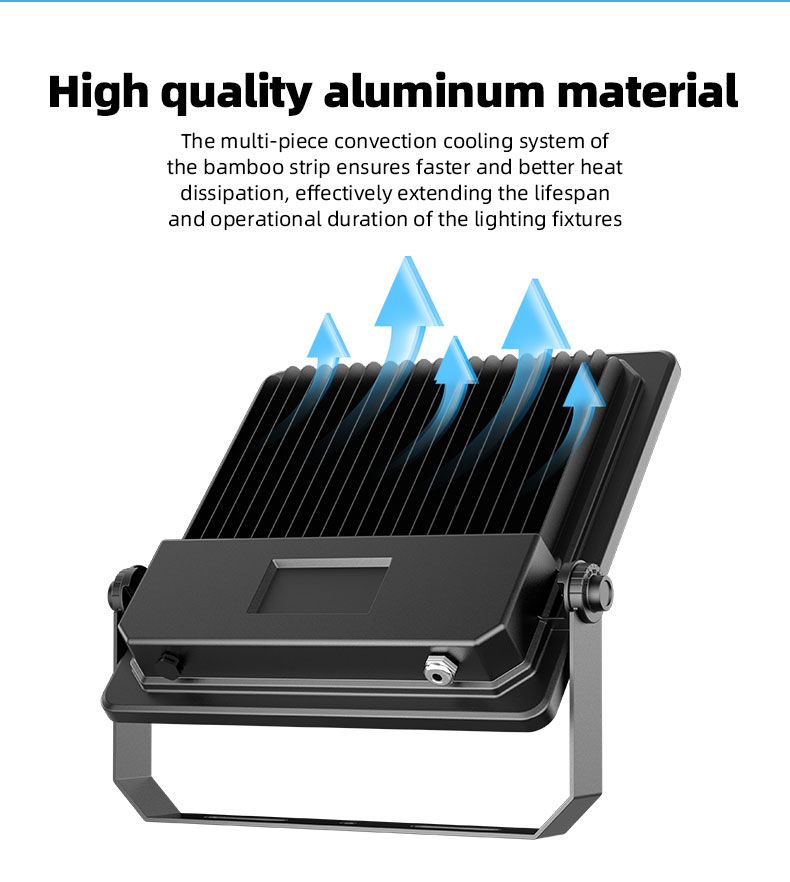

High thermal conductivity, allowing heat to quickly dissipate from the body and balance the temperature inside and outside the lamp body.
Tunnels, green landscapes, underground parking lots, park pedestrian walkways squares, etc.
| photoelectric parameters | |||||||||
Model | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 |
| Power | 30W | 50W | 100W | 150W | 200W | 300W | 400W | 500W | 600W |
| Lumen | 4500LM | 7500LM | 15000LM | 22500LM | 30000LM | 45000LM | 60000LM | 75000LM | 90000LM |
| Input voltage | AC100-277V | ||||||||
| Light efficiency | 150LM/W | ||||||||
| LED driver | SUNCOM/MOSO | ||||||||
| Lumileds | LUMILEDS | ||||||||
| CCT | 6000K(selectable3000-6500K） | ||||||||
CRI | Ra≥80 | ||||||||
PF | ≥0.9 | ||||||||
| Body material | Aluminum shell material | ||||||||
| Working Temp. | -25℃~+50℃ | ||||||||
Warranty | 5 YEARS | ||||||||
| Size and Application | |||||||||
| Model | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 | ROT04 |
Power | 30W | 50W | 100W | 150W | 200W | 300W | 400W | 500W | 600W |
Product size(mm) | 198*194*42 | 290*230*48 | 310*300*53 | 360*300*53 | 370*350*53 | 430*400*58 | 445*548*70 | 560*555*76 | 630*630*76 |
| Packing size(mm) | 202*205*47 | 235*297*53 | 305*317*58 | 305*367*58 | 361*377*58 | 361*377*58 | 460*555*75 | 605*580*130 | 675*645*130 |
| Application | Tunnels, green landscapes, underground parking lots, park pedestrian walkways squares, etc. | ||||||||
