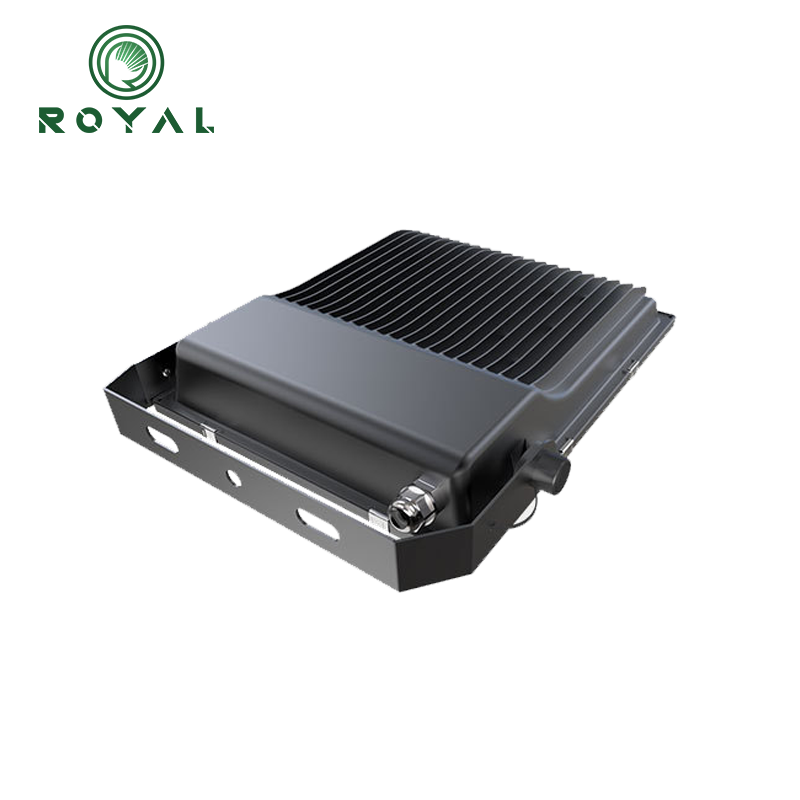

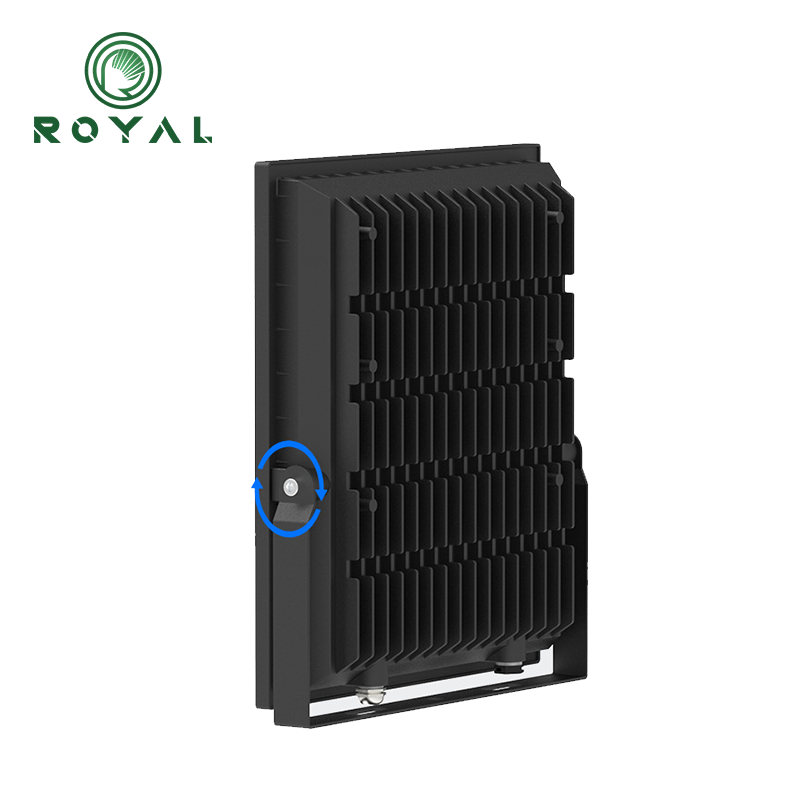

Streamlined design of ultra-thin lamp body has good heat dissipation effect and ensures service life.Surface powder baking process, corrosion resistance, suitable for harsh outdoor environmentUltra-white tempered glass p···
Streamlined design of ultra-thin lamp body has good heat dissipation effect and ensures service life.
Surface powder baking process, corrosion resistance, suitable for harsh outdoor environment
Ultra-white tempered glass panel, durable, high transmittance,strong impactresistance
Suitable for 120 pure aluminium reflector and 35 PC engineering plastic reflectorcup to meet the professional light distribution needs
| photoelectric parameters | ||||
| Model | ROTRA | ROTRA | ROTRA | ROTRA |
| Power | 50W | 100W | 150W | 200W |
| Lumen | 6000LM | 12000LM | 18000LM | 24000LM |
| Input voltage | AC100-277V | |||
| Light efficiency | 120LM/W | |||
| CCT | 6000K(selectable3000-6500K） | |||
| CRI | Ra≥75 | |||
| PF | ≥0.95 | |||
| Body material | Aluminum shell material | |||
| Working Temp. | ’-25℃~+50℃ | |||
| Life Span | 50000h | |||
| Size and Application | ||||
| Model | ROTRA | ROTRA | ROTRA | ROTRA |
| Power | 50W | 100W | 150W | 200W |
| Product size(mm) | 47*220*265 | 53*295*345 | 53*330*365 | 53*360*400 |
| Installation method | Bracket installation | |||
| Application | Tunnels, squares, sports stadiums, airports and other places | |||
