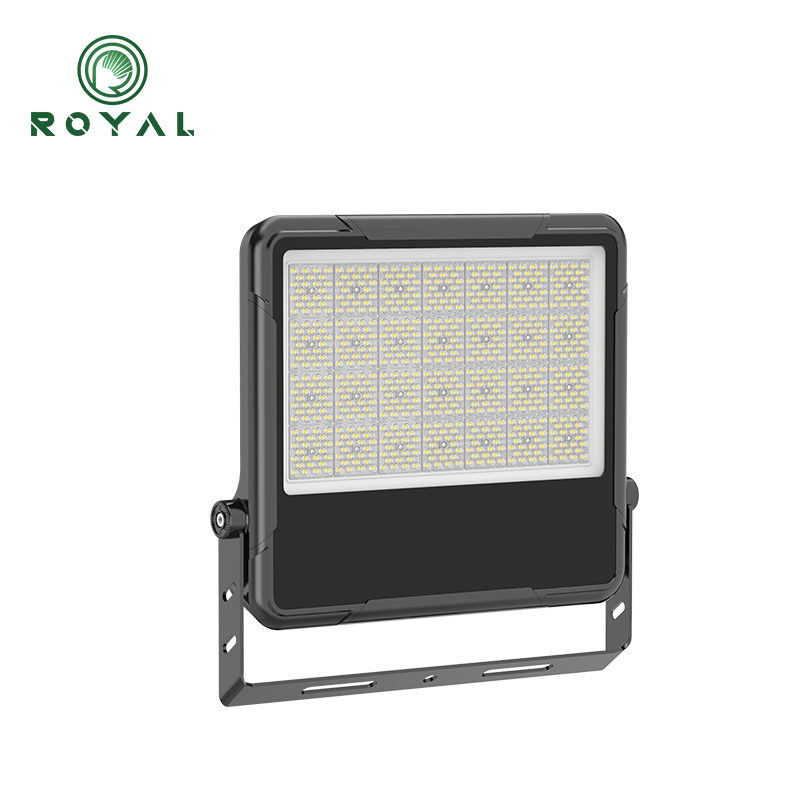

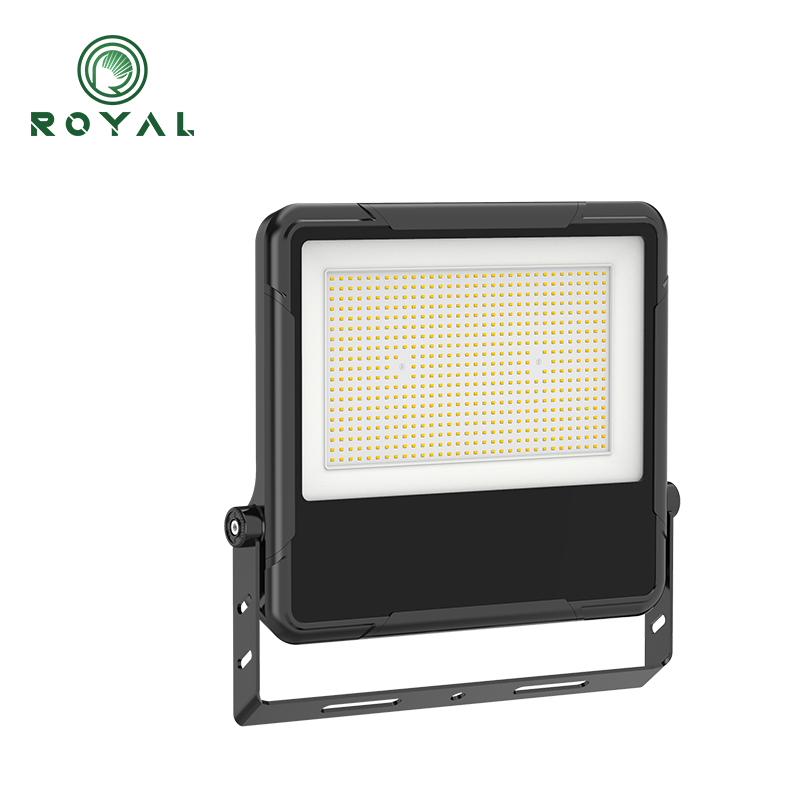

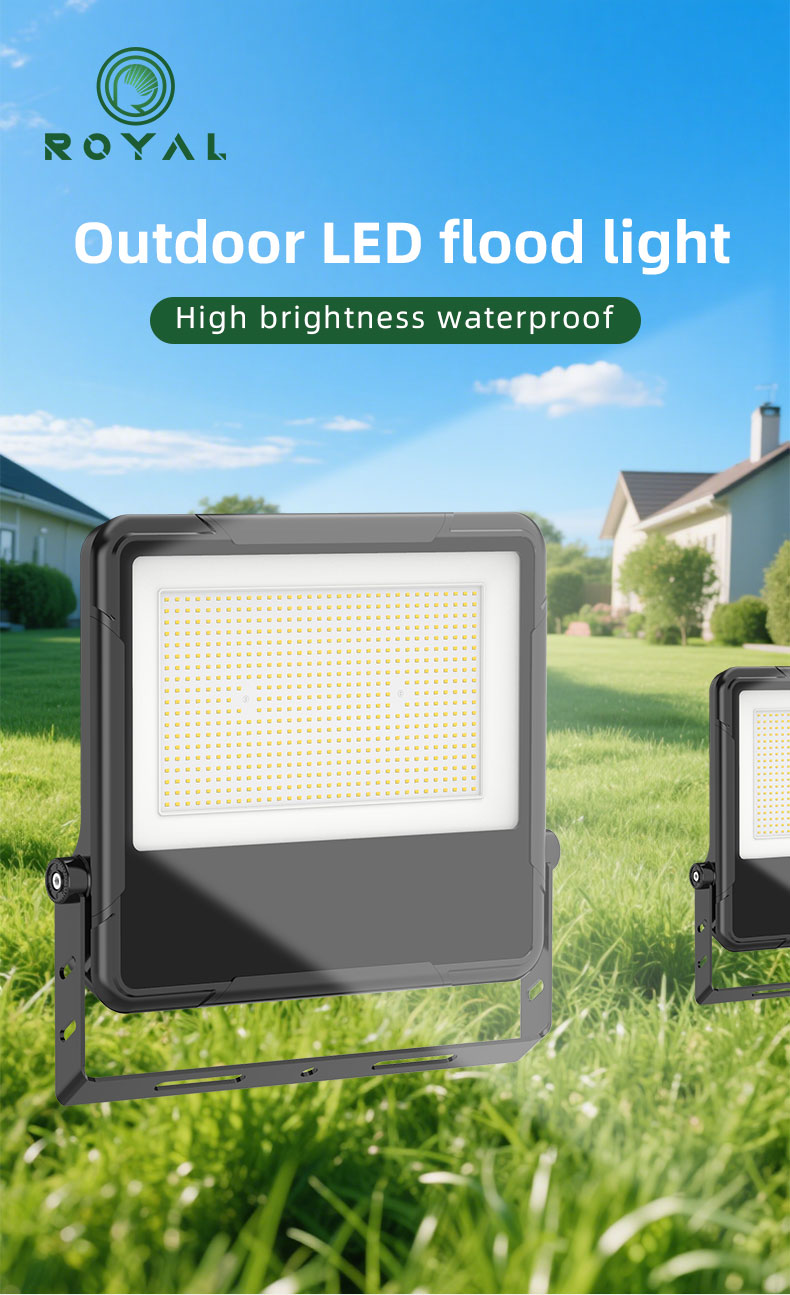

LED FLOOD LIGHT FUNITURE
LED Flood Light is the epitome of durability and efficiency in lighting.

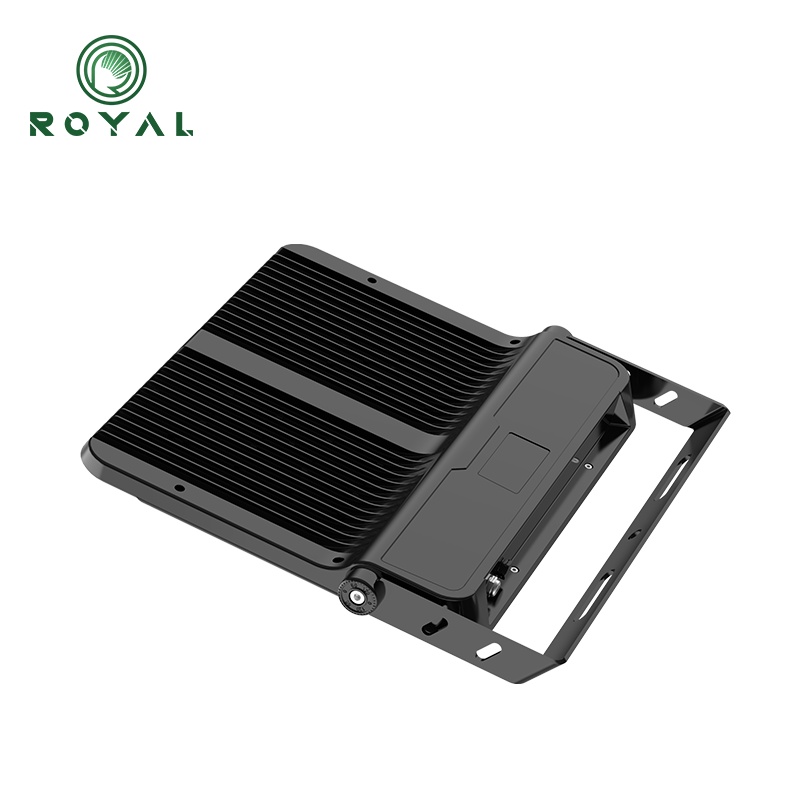

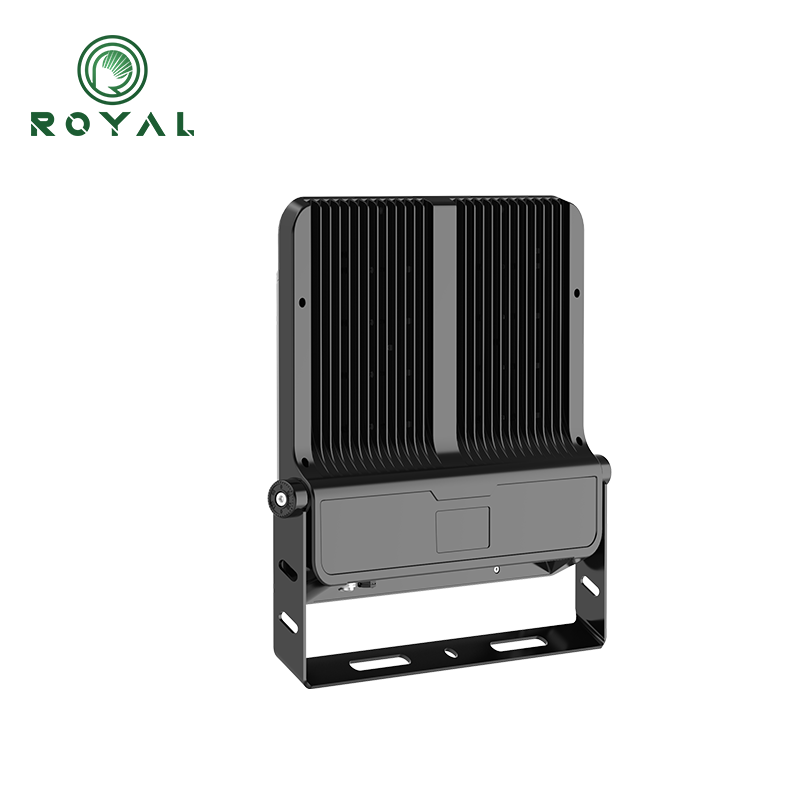

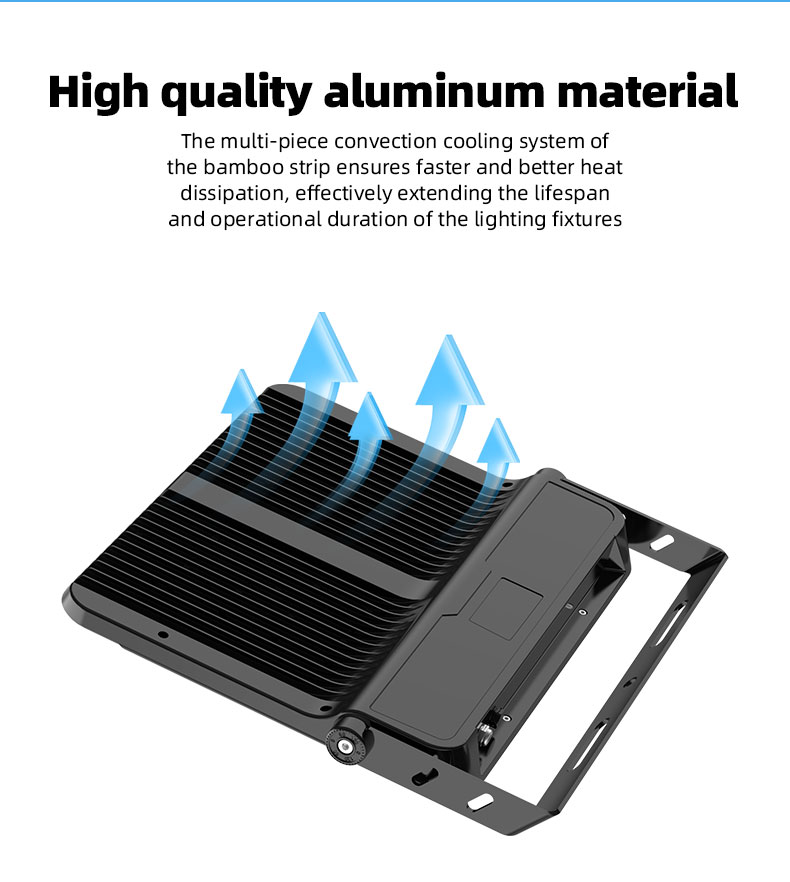

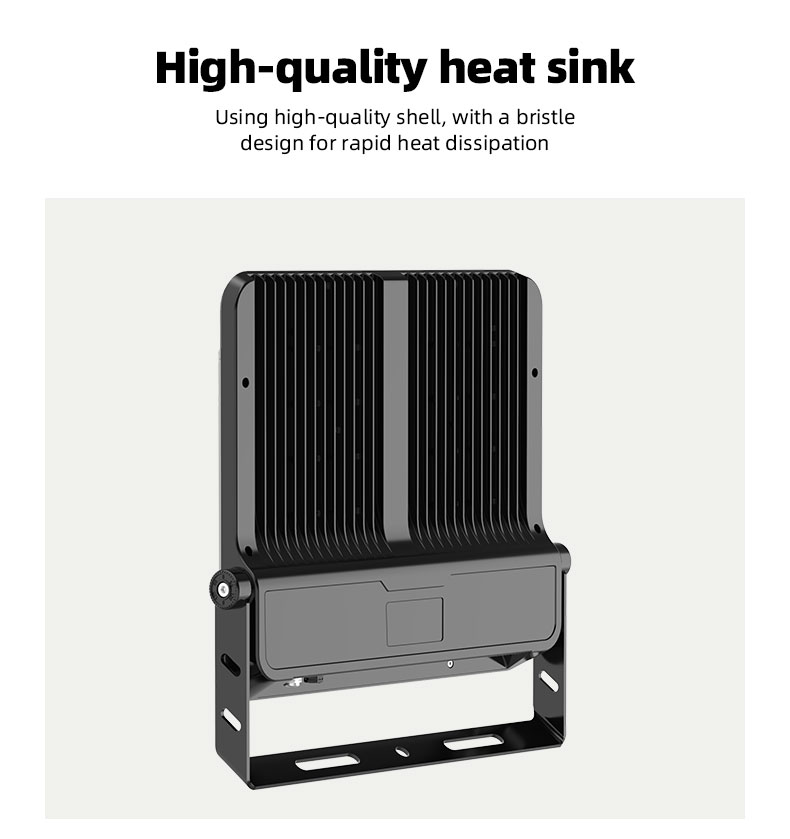

Designed with an optimized die-casting aluminum housing, this flood light excels in thermal management, ensuring longevity and consistent performance.
Boasting an IP66 rating, it offers high mechanical impact resistance and superior waterproof capabilities, making it ideal for demanding industrial environments. The flood light is equipped with top-branded LEDs and a reliable power supply, guaranteeing both product reliability and an extended life expectancy.
♦ Optimized die-casting aluminum housing design for superior thermal management;

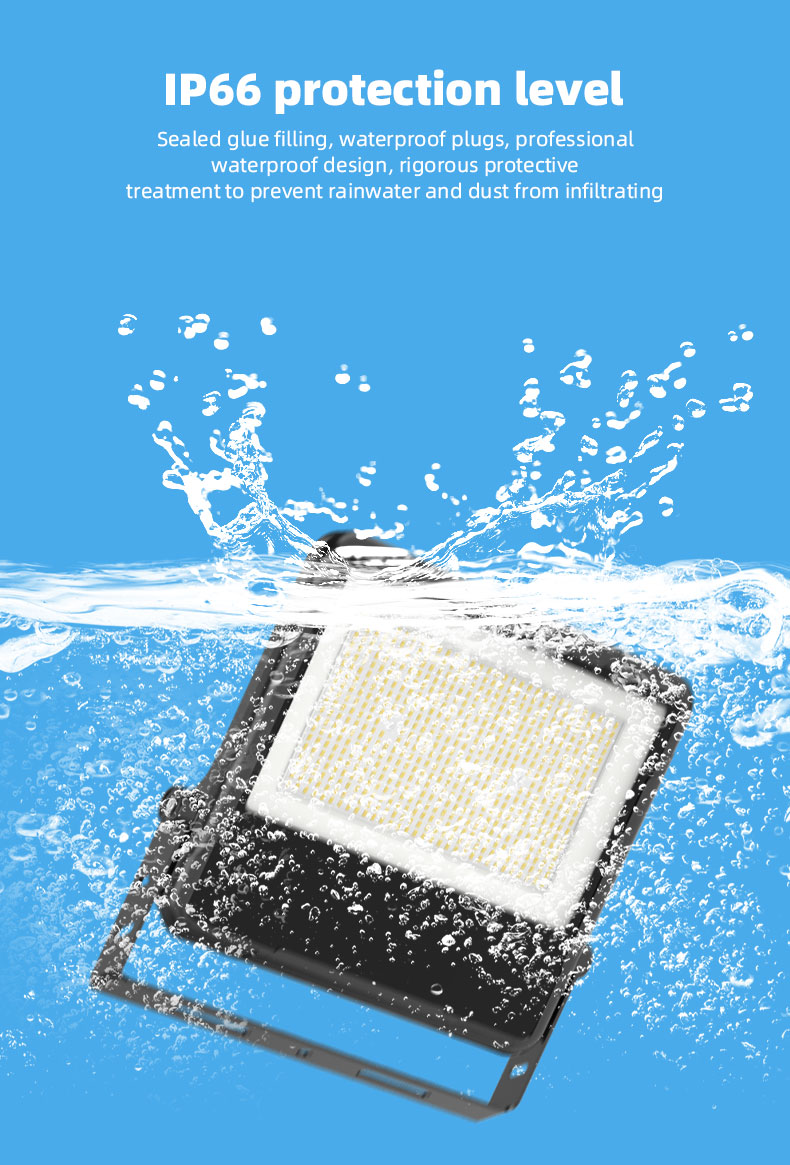

♦ High mechanical impact resistance and ingress protection, IP66 structural waterproof design;

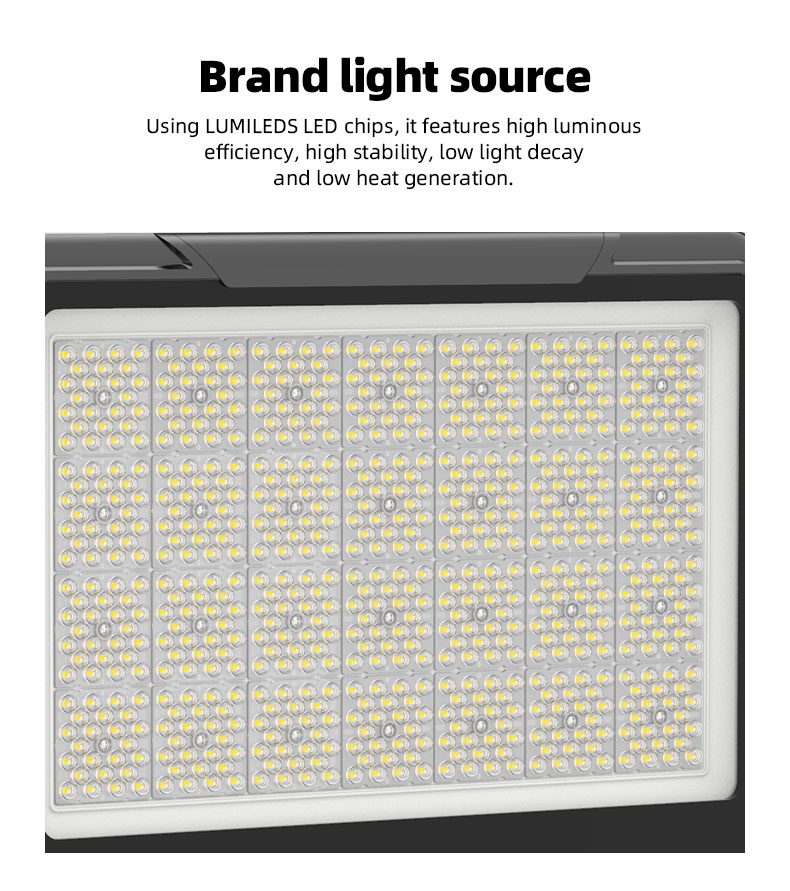

♦ Packed with top branded LEDs and power supply to ensure product reliability and life expectancy;

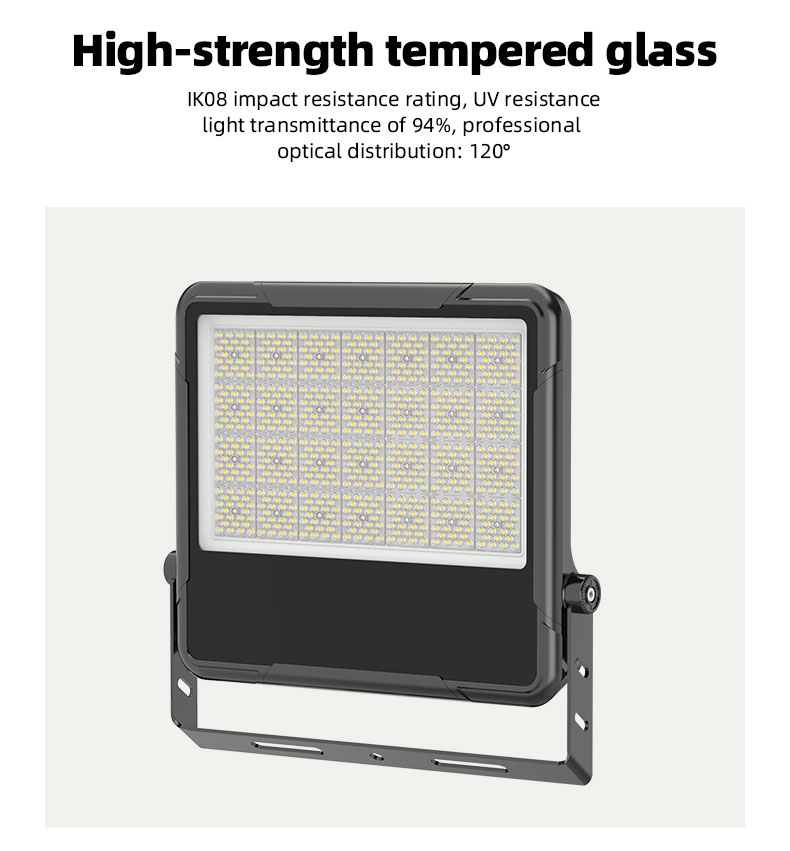

♦ Clear tempered glass cover decreases the risk of lamp breaking for strong industrial applications;
♦ Professional light distribution with different beam angles for various applications;
♦ Compact in size and easy for transportation;
♦ Long lifetime over 50,000 hours, 5 years warranty.
photoelectric parameters | |||||||||
Model | ROT01-B30 | ROT01-B50 | ROT01-B100 | ROT01-B150 | ROT01-B200 | ROT01-B250 | ROT01-B300 | ROT01-B400 | ROT01-B500 |
Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
Lumen | 4500LM | 7500LM | 15000LM | 22500LM | 30000LM | 37500LM | 45000LM | 60000LM | 75000LM |
Input voltage | AC100-277V | ||||||||
Light efficiency | 150LM/W | ||||||||
LED driver | Sosen OPTIOANL | ||||||||
Lumileds | Lumileds2835 | ||||||||
CCT | 6000K(selectable3000-6500K) | ||||||||
CRI | Ra≥80 | ||||||||
PF | ≥0.9 | ||||||||
Beam angle | 120 | ||||||||
Body material | Aluminum shell material | ||||||||
IP Rating | IP66 | ||||||||
Working Temp. | ’-25℃~+50℃ | ||||||||
Life Span | 50000h | ||||||||
Warranty | 5 years | ||||||||
Size and Application | |||||||||
Model | ROT01-B30 | ROT01-B50 | ROT01-B100 | ROT01-B150 | ROT01-B200 | ROT01-B250 | ROT01-B300 | ROT01-B400 | ROT01-B500 |
Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
Product size(mm) | 127*127*44 | 148*148*44 | 201*193*46 | 247*237*47 | 301*285*55 | 358*320*61 | 412*366*63 | 86*406*69 | 86*406*69 |

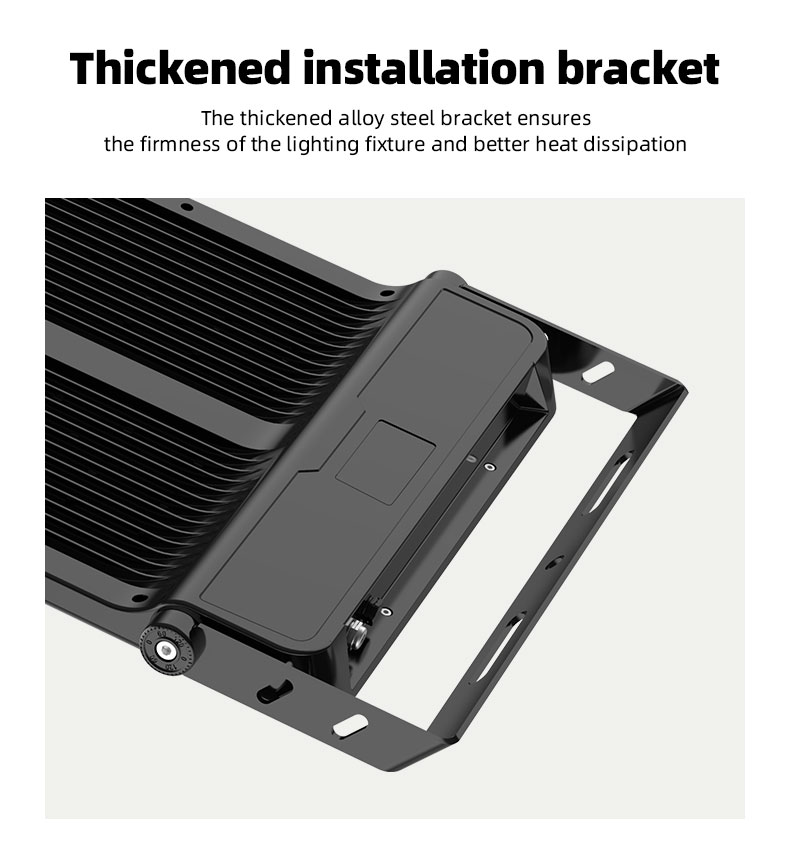

Installation method | Brackets | ||||||||
Application | Tunnels, squares, sports stadiums, airports and other places |
APPLICATION:
Tunnels, squares, sports stadiums, airports and other places
SERVICE:
DIAULUX REPORT can be designed freely
