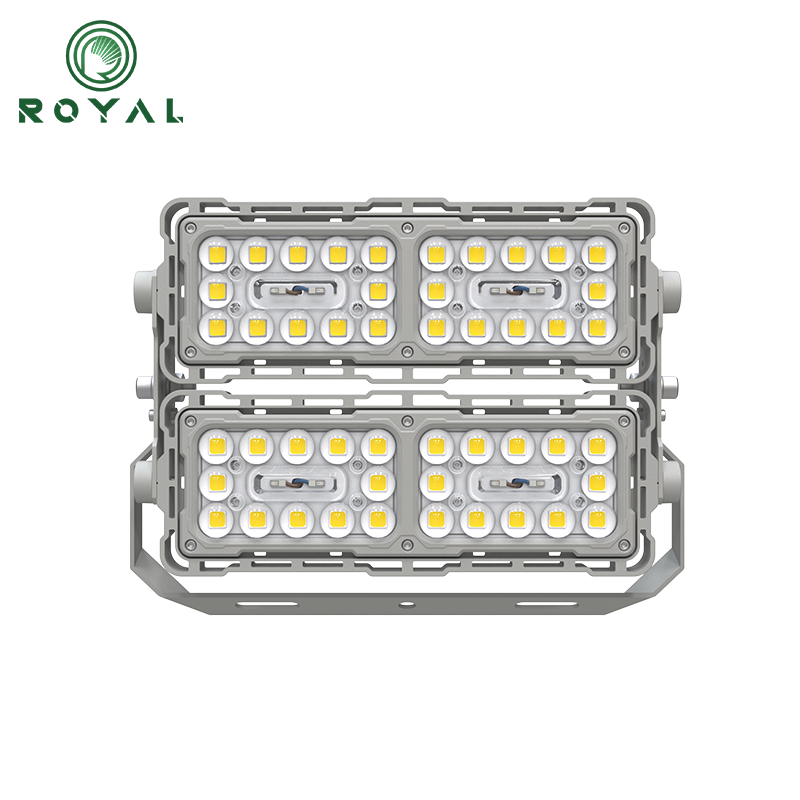

1. Matrix glass lens, Permanently non aging, non yellowing, corrosion-resistant, high temperature resistant, easy to clean, with a light transmittance of up to 95%.2.New Chinese style grille structure, integrated grill···
1. Matrix glass lens, Permanently non aging, non yellowing, corrosion-resistant, high temperature resistant, easy to clean, with a light transmittance of up to 95%.

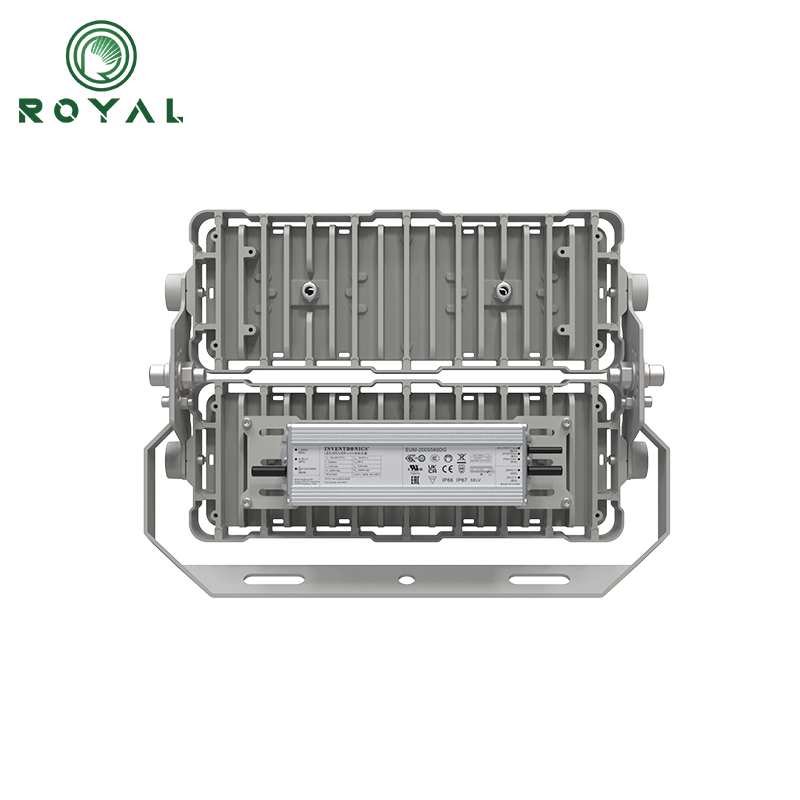

2.New Chinese style grille structure, integrated grille structure design, efficient heat dissipation performance; High mechanic strength.
3. Professional light distribution design, equipped with multiple patented lenses for even illumination and higher illuminance, meeting the optical needs of various application scenarios.
4. Infinite angle adjustment, capable of achieving ± 180 ° angle adjustment.
5. The light source modules are interconnected using wiring terminals to avoid virtual soldering caused by welding, allowing for easy tool replacement of the light source modules.
PARAMETERS | ||||||||
Model | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A |
Power | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
Lumen | 7500LM | 15000LM | 22500LM | 30000LM | 37500LM | 45000LM | 60000LM | 75000LM |
Input voltage | AC100-277V | |||||||
Light efficiency | 150LM/W | |||||||
LED driver | MOSO | |||||||

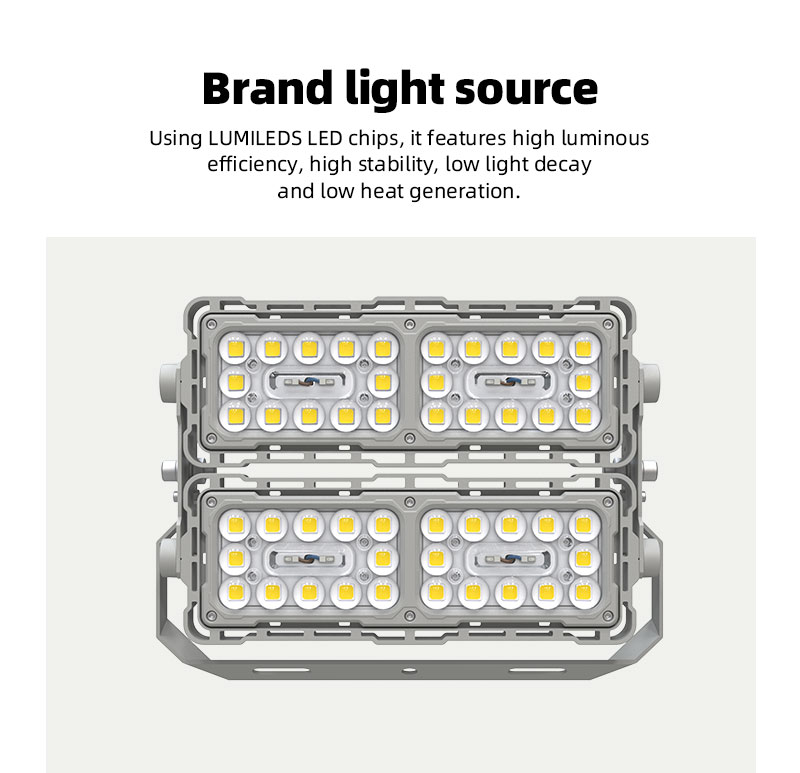

LED Chips | LUMILEDS | |||||||
CCT | 6000K (CUSTOMIZABLE 3000-6500K) | |||||||
CRI | Ra≥80 | |||||||
PF | ≥0.95 | |||||||

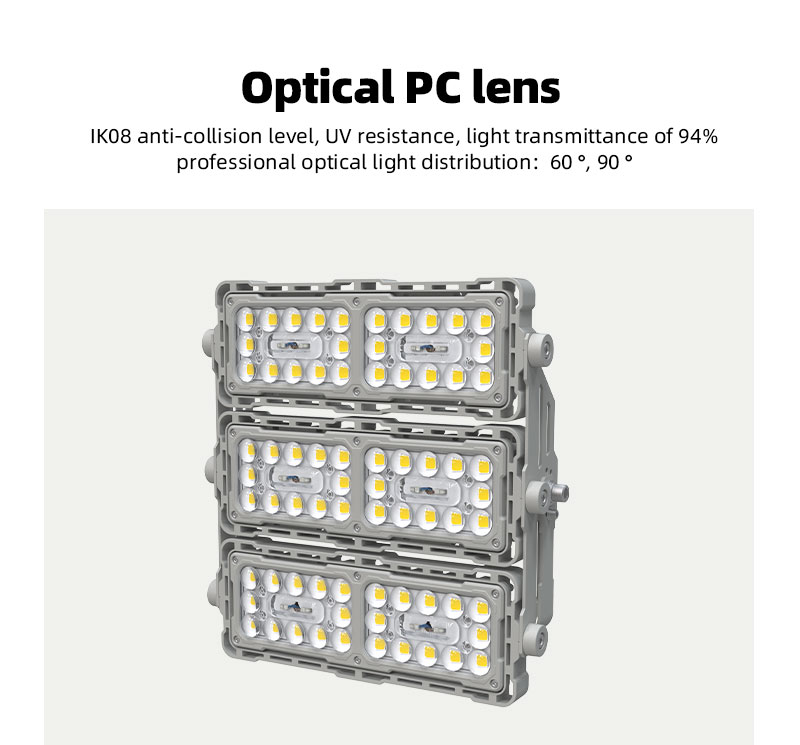

Beam angle | 60/90 | |||||||

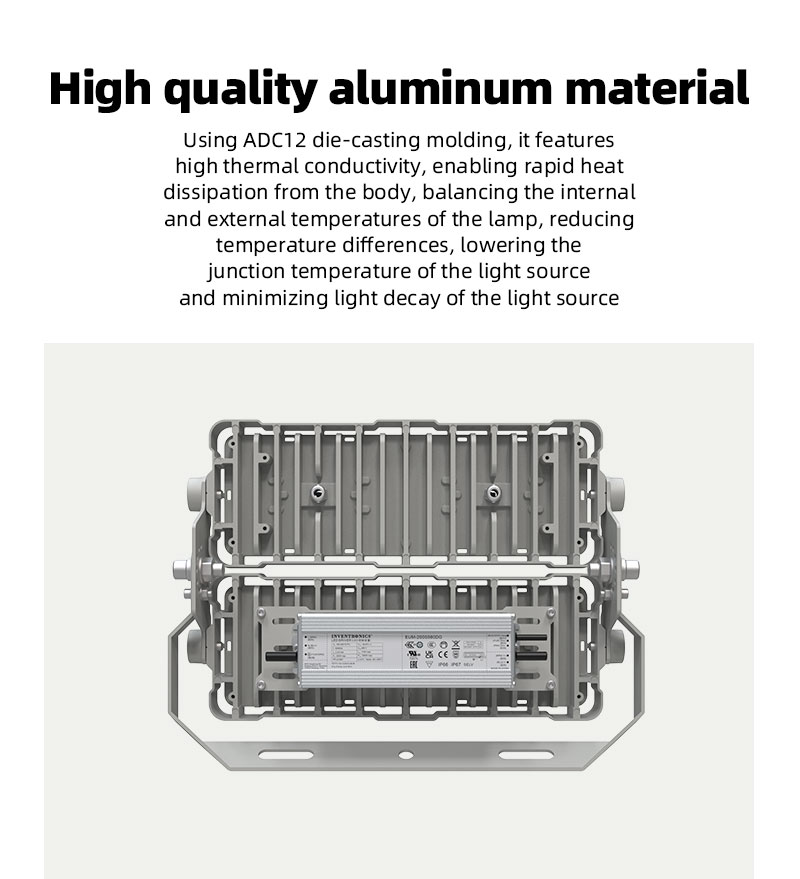

Body material | ALUMINUM SHELL | |||||||

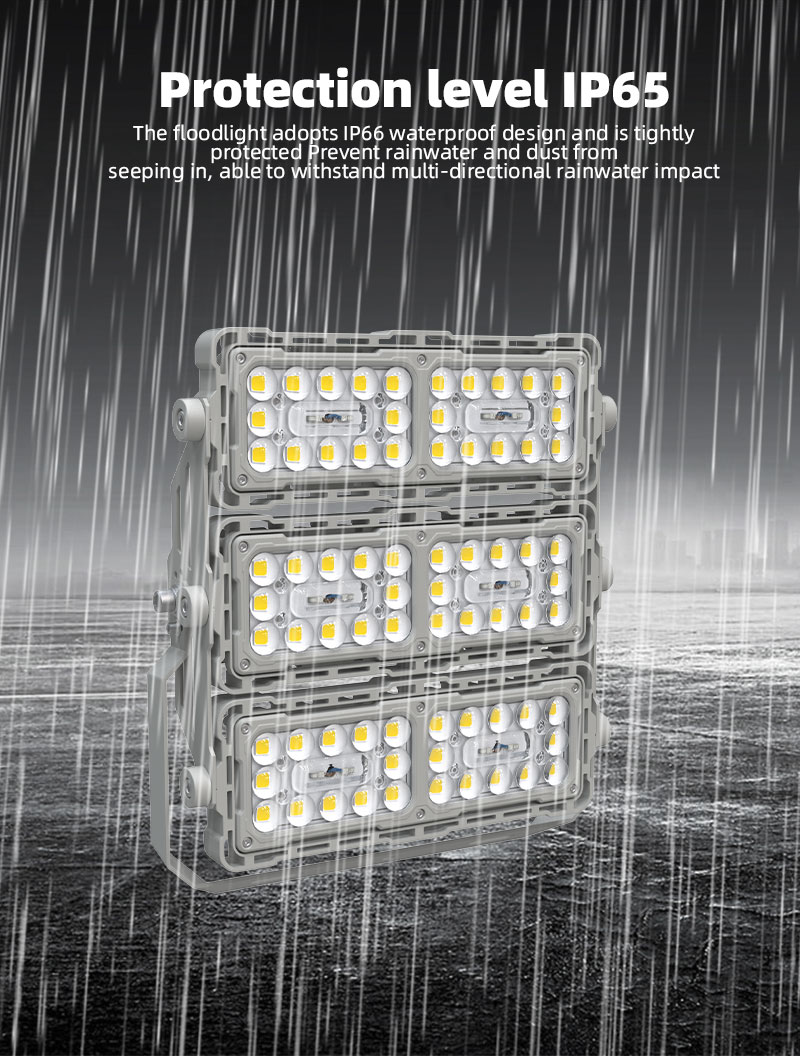

IP Rating | IP66 | |||||||
Working Temp | -25℃~+50℃ | |||||||
Life Span | 50000h | |||||||
Warranty | 5 YEARS | |||||||
APPLICATION | Widely used in places such as highways, tunnels, factories, sports venues, parks, etc |

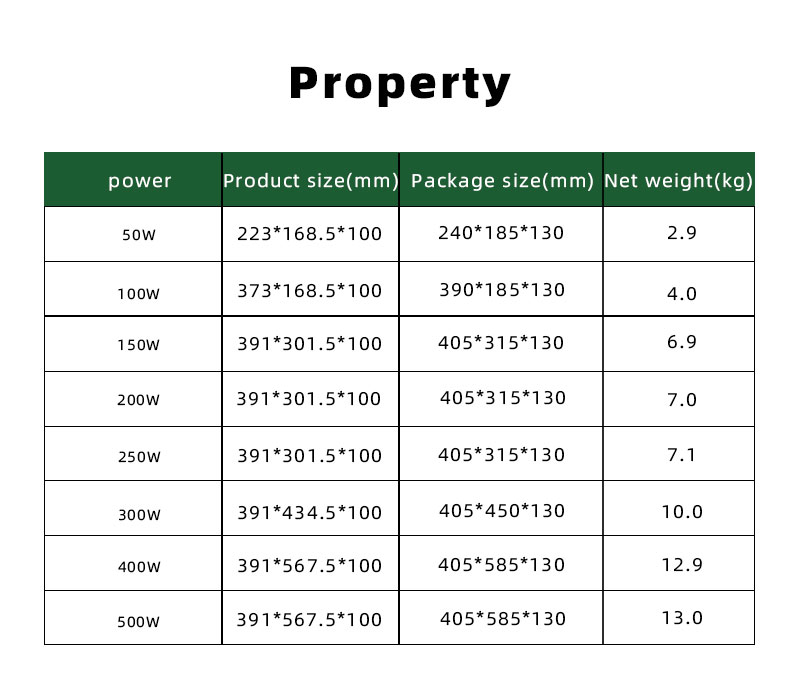

Product model | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A | ROS02A |
power | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
Product size(mm) | 223*168.5*100 | 373*168.5*100 | 391*301.5*100 | 391*301.5*100 | 391*301.5*100 | 391*434.5*100 | 391*567.5*100 | 391*567.5*100 |
Packing size(mm) | 240*185*130 | 390*185*130 | 405*315*130 | 405*315*130 | 405*315*130 | 405*450*130 | 405*585*130 | 405*585*130 |
Net weight(kg) | 2.9 | 4.0 | 6.9 | 7.0 | 7.1 | 10.0 | 12.9 | 13.0 |
