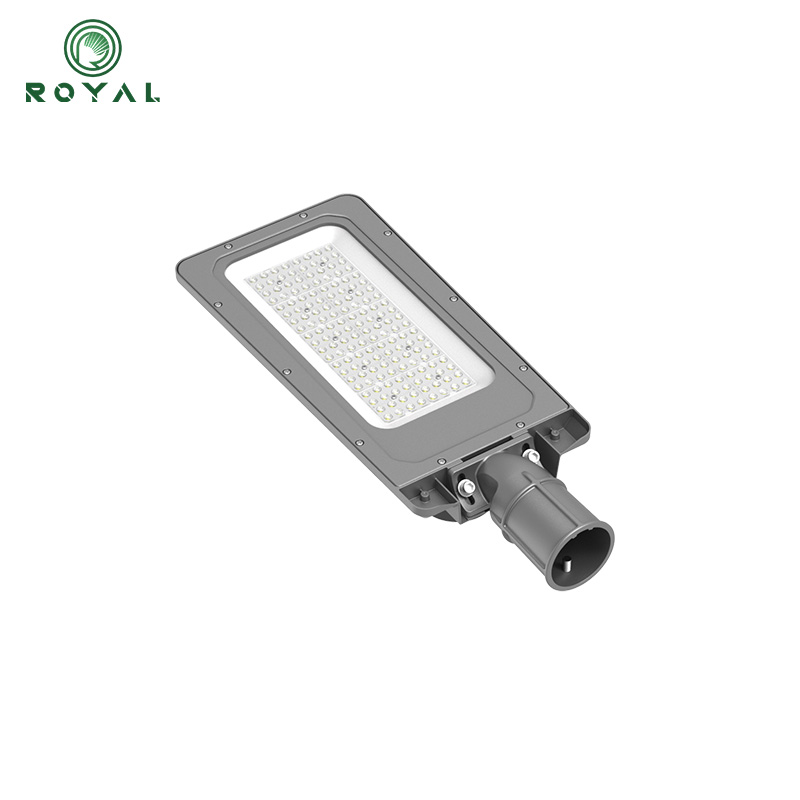

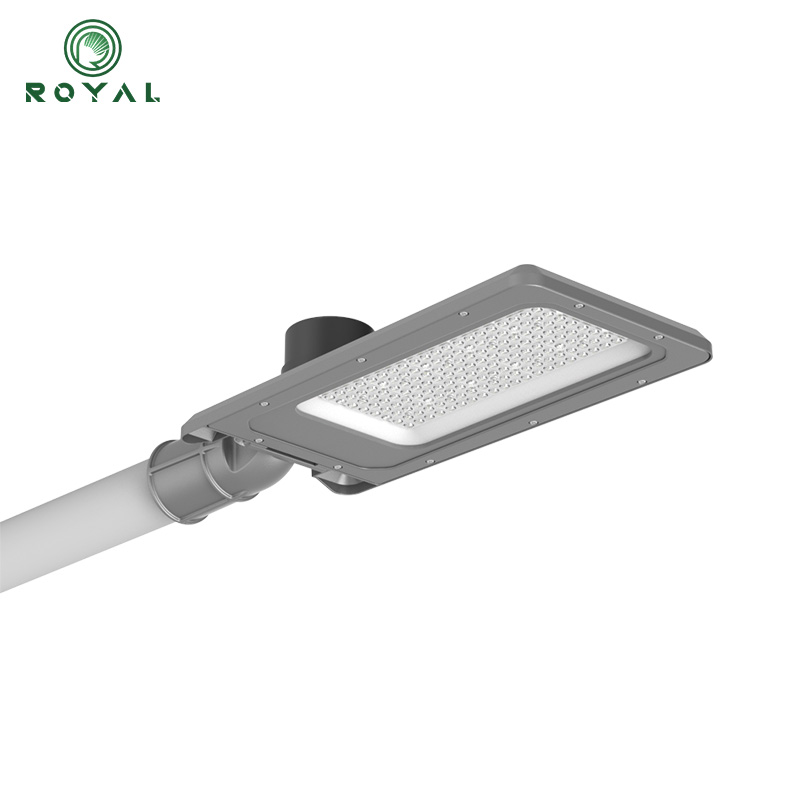

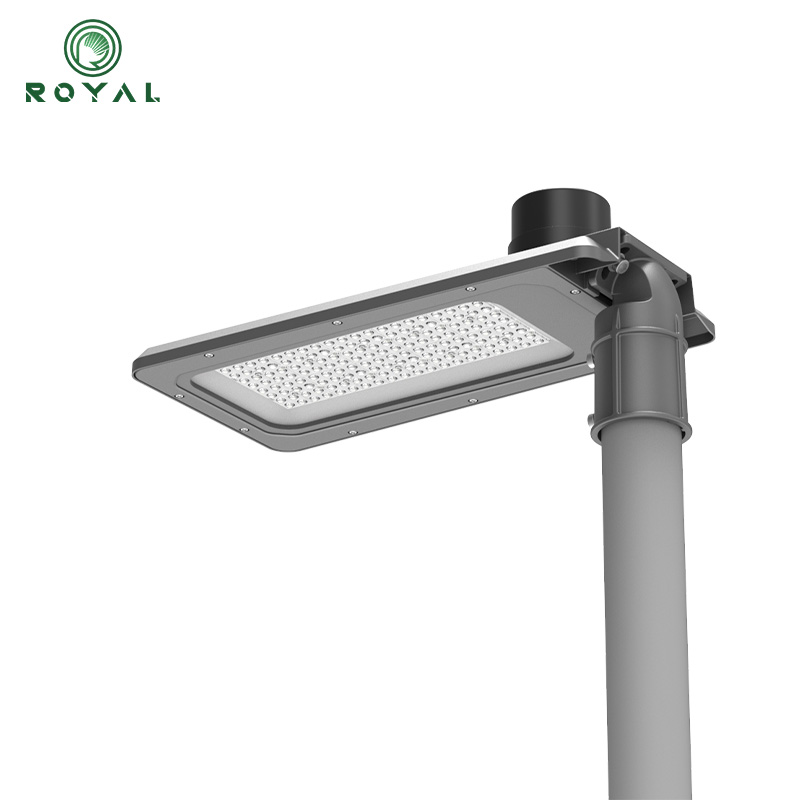

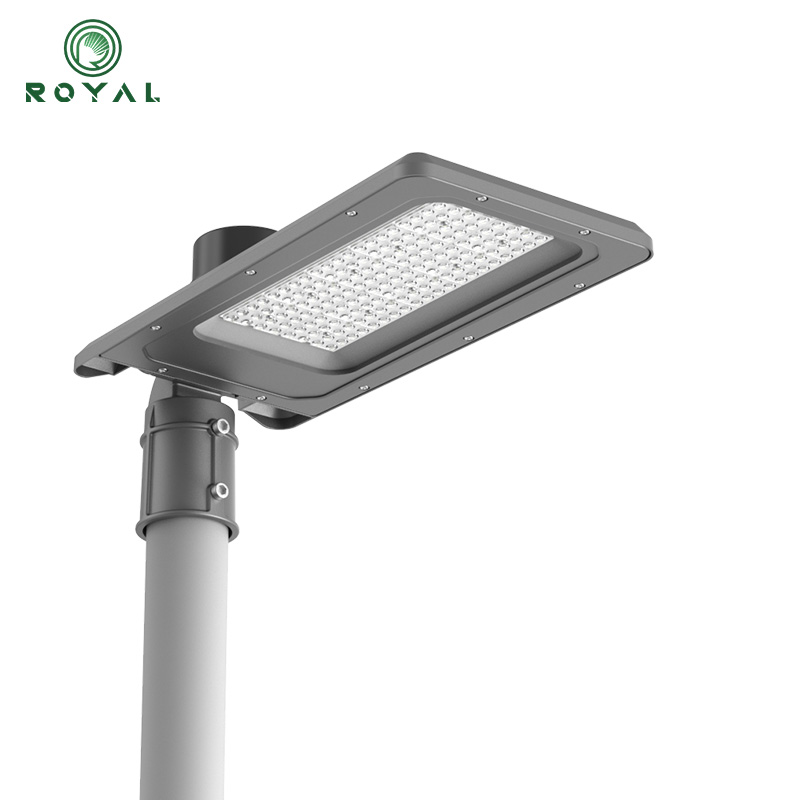

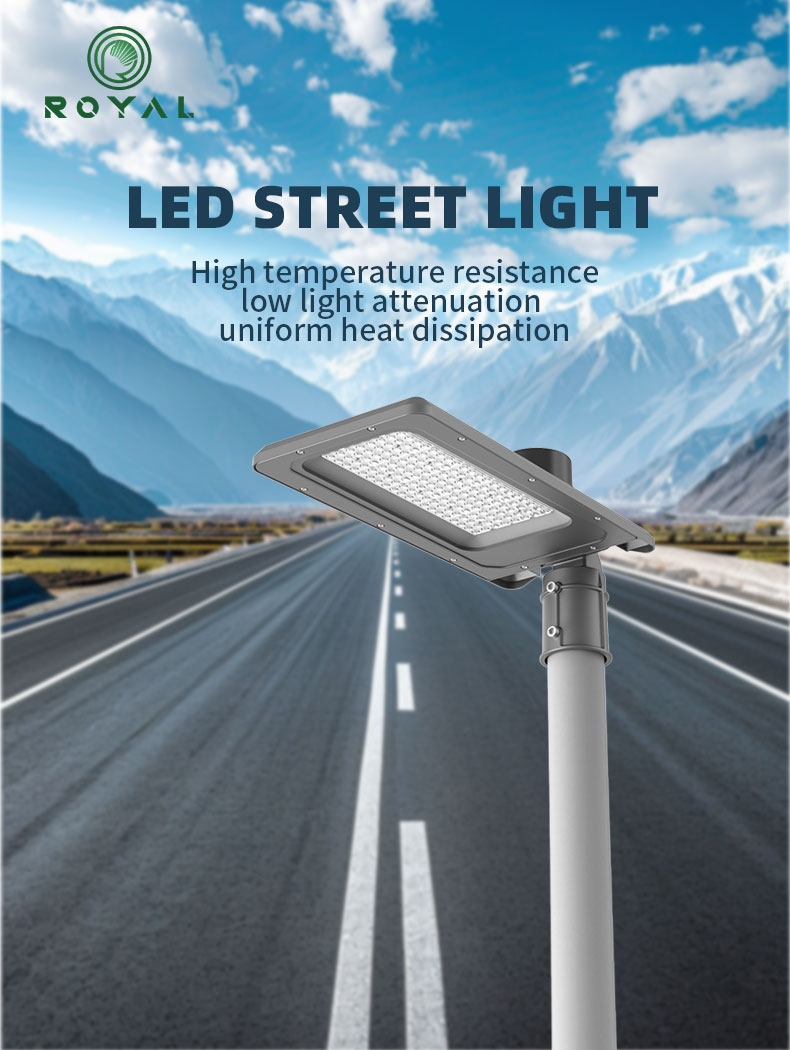

LED Street Light Photocell Sensor

Product Features of Roya ROL01 LED Photocell Sensor Street LightSmart Photocell Sensor ControlEquipped with a high-sensitivity photosensor, the lamp automatically switches to full brightness when ambient light drops belo···

Category:LED Public Light
Wechat/WhatsApp:+8618896522176;+86 18962501390
Time:2025-08-22 15:15:13

    Product Features of Roya ROL01 LED Photocell Sensor Street Light

    Smart Photocell Sensor Control

    Equipped with a high-sensitivity photosensor, the lamp automatically switches to full brightness when ambient light drops below 10lux (e.g., dusk, rainy weather) and dims to energy-saving mode above 50lux. This millisecond-level response ensures optimal illumination while reducing unnecessary energy consumption (annual savings up to 35%).


    Brand-Selected LED & Optical Precision

    Utilizes brand-name LED chips for high luminous efficiency (up to 150lm/W) and low light attenuation (<10% after 30,000 hours). Paired with a customized optical lens, it delivers a 120° uniform light distribution, eliminating dark spots on roads or pathways.

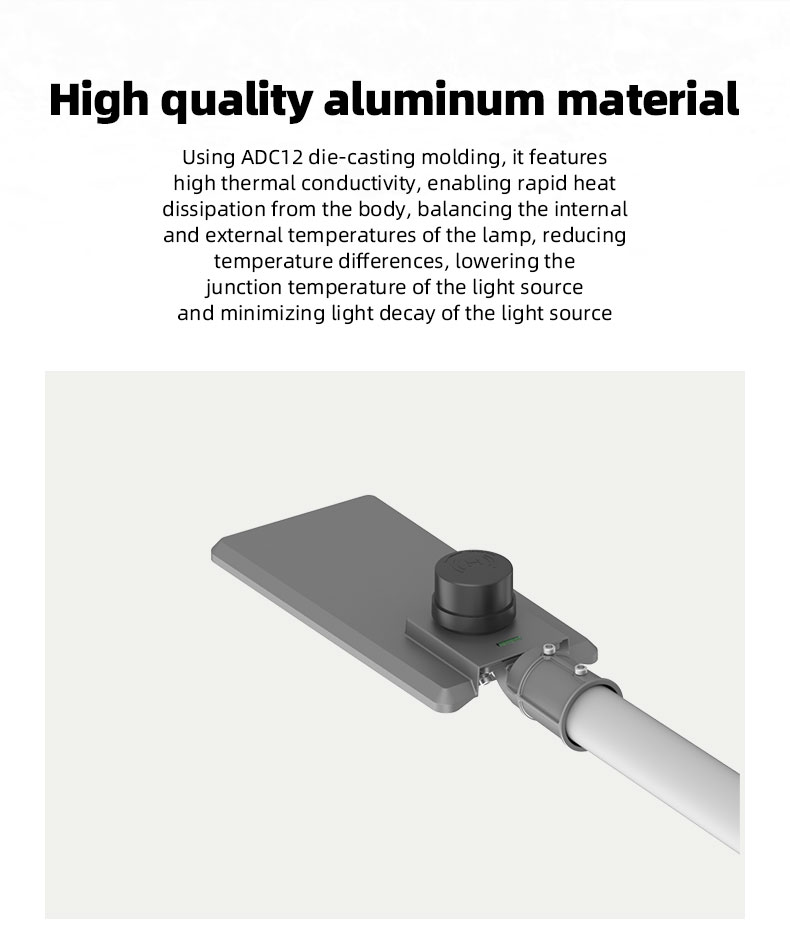

    ADC12 Aluminum Heat Dissipation
    Constructed with ADC12 die-cast aluminum, the housing enables rapid and uniform heat dissipation, keeping the light source junction temperature ≤65℃. This design enhances thermal stability, resisting high-temperature deformation and extending service life.

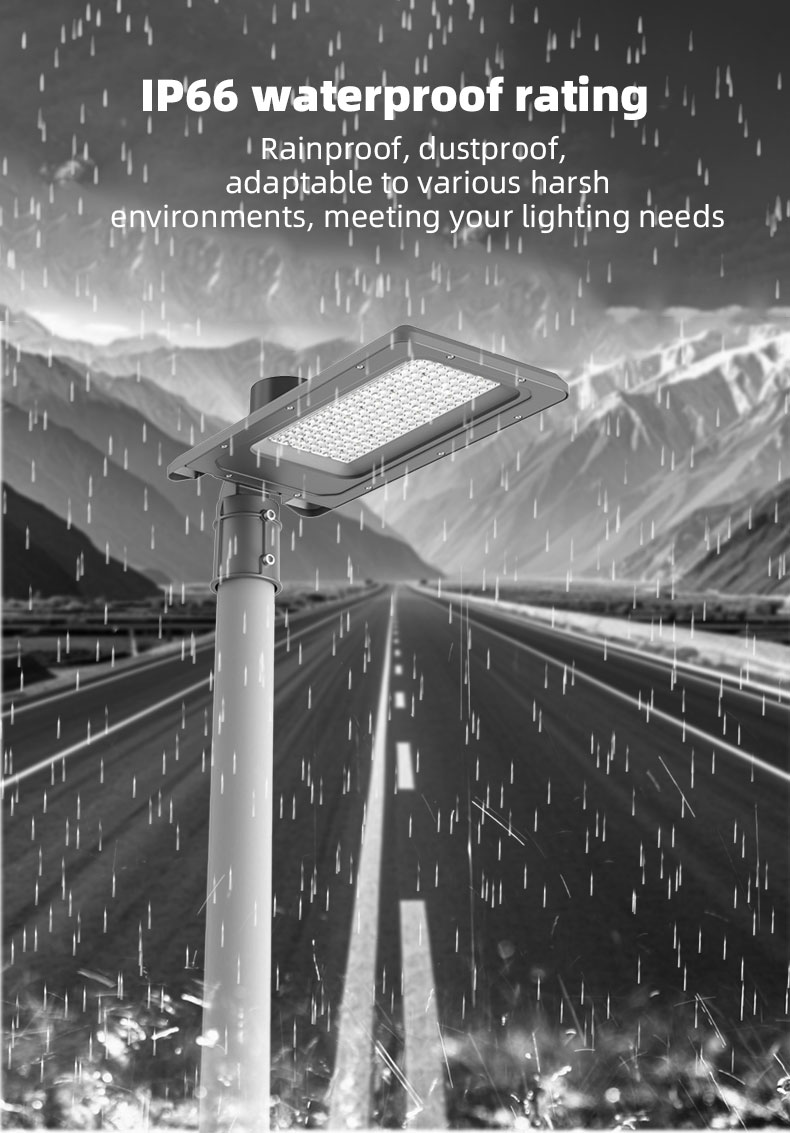

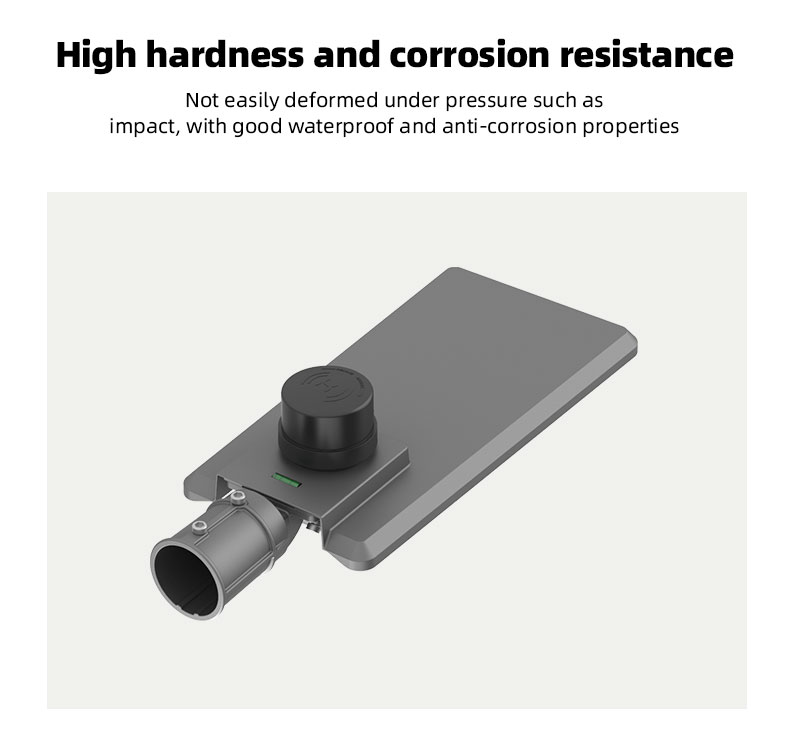

    IP66 Protection & Robust Durability
    Certified IP66 for complete dust and waterproofing (withstands 1m deep water for 30 minutes), plus 8kV lightning protection and IK08 impact resistance. It performs stably in extreme environments (e.g., salt spray, sandstorms, -40℃ to 60℃ temperatures).



    Long Lifespan & Low Maintenance
    The integrated design of smart sensing, premium materials, and protective features ensures a lifespan of ≥50,000 hours. Built-in self-diagnosis reduces manual inspections, cutting maintenance costs by up to 70%.





    photoelectric parameters
    ModelROL01-50ROL01-100ROL01-150ROL01-200
    Power50W100W150W200W
    Lumen7500LM15000LM22500LM30000LM
    Input voltageAC100-277V
    Light efficiency130LM/W
    LED driverSuncom
    LumiledsZhaochi3030
    CCT6000K(selectable3000-6500K)
    CRIRa≥70
    PF
    ≥0.9
    Beam angle70*140
    Body materialAluminum shell material
    IP RatingIP66
    Working Temp.-25℃~+50℃
    Life Span50000h
    WarrantySix years

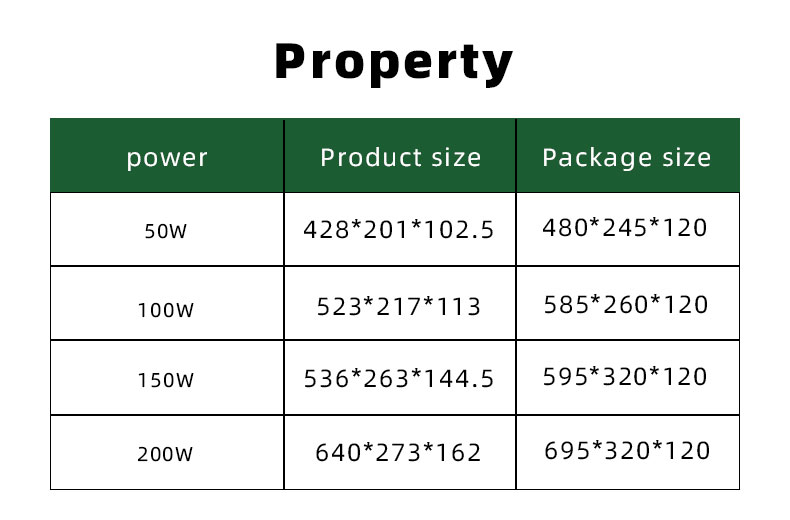

    Size and Application



    ModelROL01-50ROL01-100ROL01-150ROL01-200
    Power50W100W150W200W
    Product size(mm)428*201*102.5

    523*217*11

    536*263*144.5

    640*273*162
    Packing size(mm)

    480*245*120

    585*260*120

    595*320*120

    695*320*120

    Installation methodBrackets
    ApplicationTunnels, squares, sports stadiums, airports and other places
