CHARACTERISTIC:

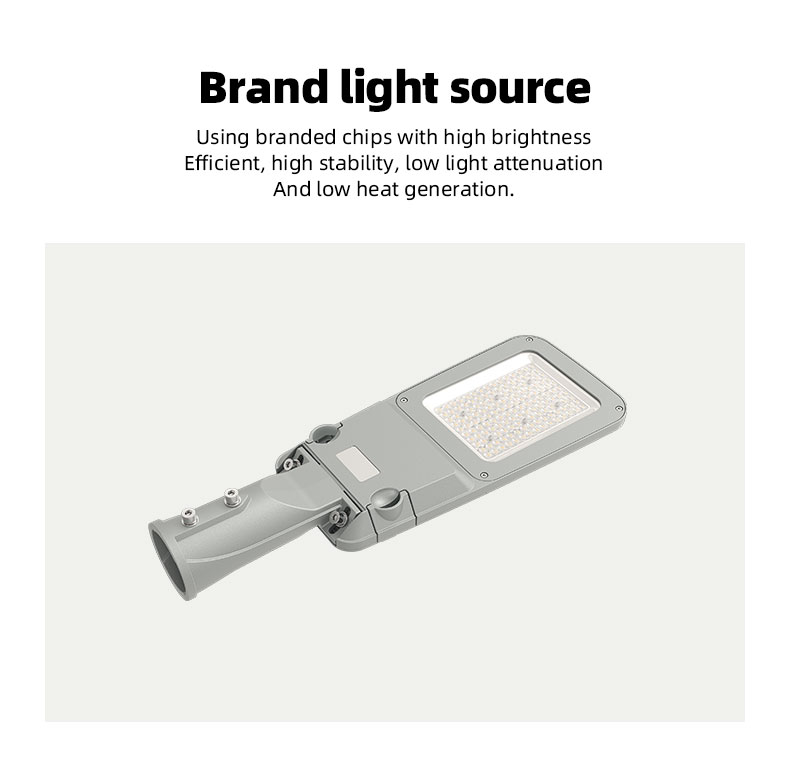

1. Adopting imported LUMILEDS light source, high brightness, low light decay, and long lifespan;
2. Driven by top international brands, it features over temperature protection, high conversion rate, high power factor, and high lightning protection;

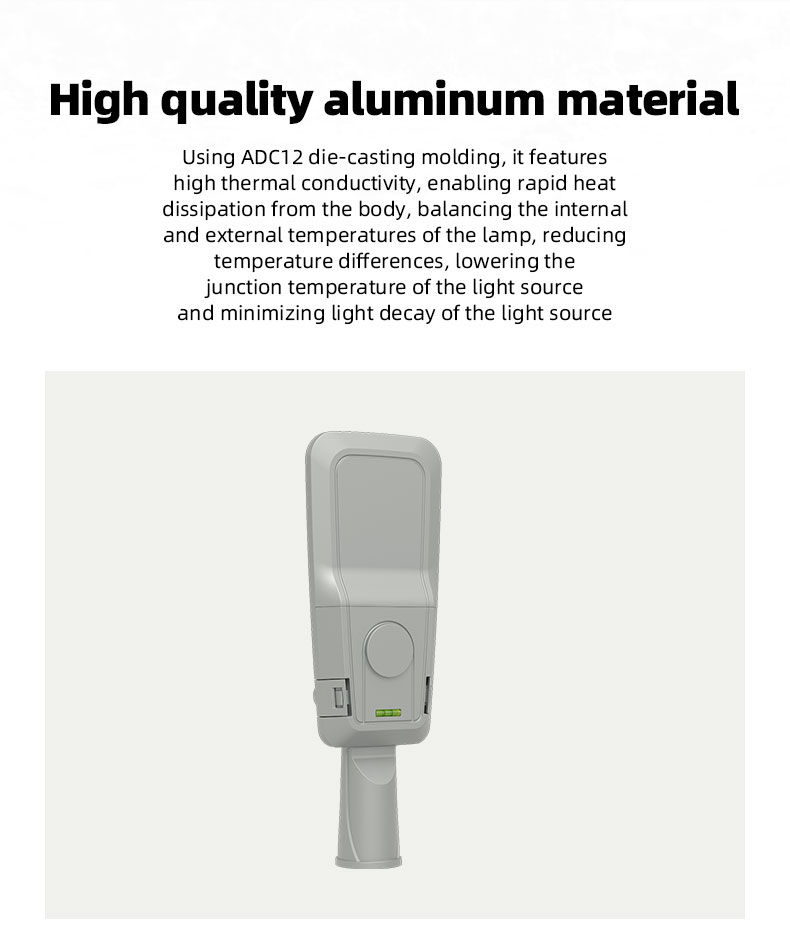

3. ADC12 is die cast and has high thermal conductivity, which allows heat to be quickly dissipated from the body, balances the temperature inside and outside the lamp body, reduces temperature differences, lowers the junction temperature of the light source, and reduces light attenuation of the light source;

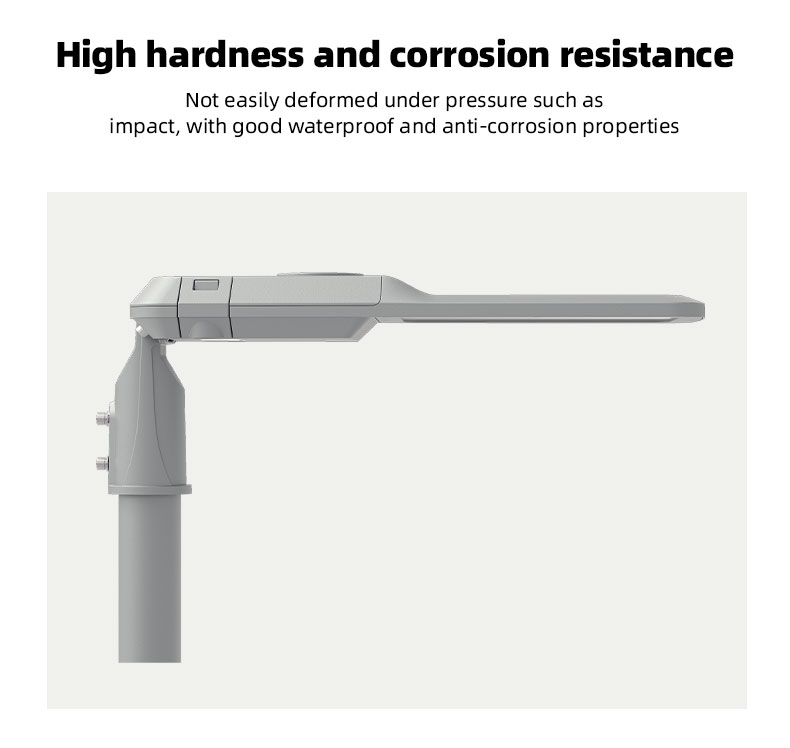

4. Optical PC lens, IK08 anti-collision rating, UV resistance, 94% transmittance, professional optical light distribution: 70 * 140;
5. Outdoor lighting places such as highways, elevated roads, urban streets, overpasses, sidewalks, squares, schools, etc.
PARAMETERS | ||||||
Model | ROL02 | ROL02 | ROL02 | ROL02 | ROL02 | ROL02 |
Power | 50W | 100W | 150W | 200W | 240W | 320W |
Lumen | 7500LM | 15000LM | 22500LM | 30000LM | 36000LM | 48000LM |
Input voltage | AC100-277V | |||||
Light efficiency | 150LM/W | |||||
LED driver | SOSEN | |||||
LED Chips | PHILIPS | |||||
CCT | 6000K (CUSTOMIZABLE 3000-6500K) | |||||
CRI | Ra≥80 | |||||
PF | ≥0.9 | |||||
Beam angle | 70*140 | |||||
Body material | ALUMINUM SHELL | |||||
IP Rating | IP66 | |||||
Working Temp | -25℃~+50℃ | |||||
Life Span | 50000h | |||||
Warranty | FIVE YEARS | |||||
APPLICATIONS | villa, expresswa, park, quare |
SIZE SPECIFICATIONS | ||||||
Model | ROL02 | ROL02 | ROL02 | ROL02 | ROL02 | ROL02 |
power | 50W | 100W | 150W | 200W | 240W | 320W |
Net weight(kg) | 3 | 4 | 5 | 7 | 7 | 8 |
Product size(cm) | 542*189*66 | 590*219*66 | 717*259*66 | 797*280*66 | 797*280*66 | 857*324*66 |
Packing size(cm) | 570*220*140 | 620*250*140 | 750*290*140 | 830*310*140 | 830*310*140 | 900*360*140 |
Installation method | Installation of lamp posts |
