Imported LUMILEDS light source, high brightness, low light decay, long lifespan.Driven by top international brands, it features over temperature protection, high conversion efficiency, high power factor, and high lightn···
Imported LUMILEDS light source, high brightness, low light decay, long lifespan.
Driven by top international brands, it features over temperature protection, high conversion efficiency, high power factor, and high lightning protection.
Adopting ADC12 die-casting molding, it has high thermal conductivity, allowing heat to be quickly dissipated from the body, balancing the temperature inside and outside the lamp body, reducing temperature difference, lowering the junction temperature of the light source, and reducing light source attenuation
Adopting optical PC lens, IK08 anti-collision rating, UV resistance, 94% transmittance, professional optical light distribution.
Highways, elevated roads, urban streets, overpasses, sidewalks, squares, schools, and other outdoor lighting locations
| photoelectric parameters | |||||
| Model | ROL03A | ROL03A | ROL03A | ROL03A | |
| Power | 30/50W | 80/100W | 120/150W | 200W | |
| Lumen | 3900/6500LM | 10400/13000LM | 15600/19500LM | 26000LM | |
| Input voltage | AC100-277V | ||||
| Light efficiency | 130LM/W | ||||
| Lumileds | LUMILEDS | ||||
| CCT | 6000K(selectable3000-6500K） | ||||
| CRI | Ra≥70 | ||||
| PF | ≥0.95 | ||||
| Body material | Aluminum shell material | ||||
| Working Temp. | ’-25℃~+50℃ | ||||
| Life Span | 50000h | ||||
| Warranty | 3 years | ||||
| Size and Application | |||||
| Model | ROL03A | ROL03A | ROL03A | ROL03A | |
| Power | 30/50W | 80/100W | 120/150W | 200W | |
| Product size(mm) | 449*144*100 | 552*166*100 | 618*207*100 | 236*103*69.5 | |
| Packing size(mm) | 147*103*45.5 | 168*10.3*55.8 | 210*103*62.5 | 236*103*69.5 | |
| Net weight(kg) | 1 | 1.2 | 2.2 | 3 | |

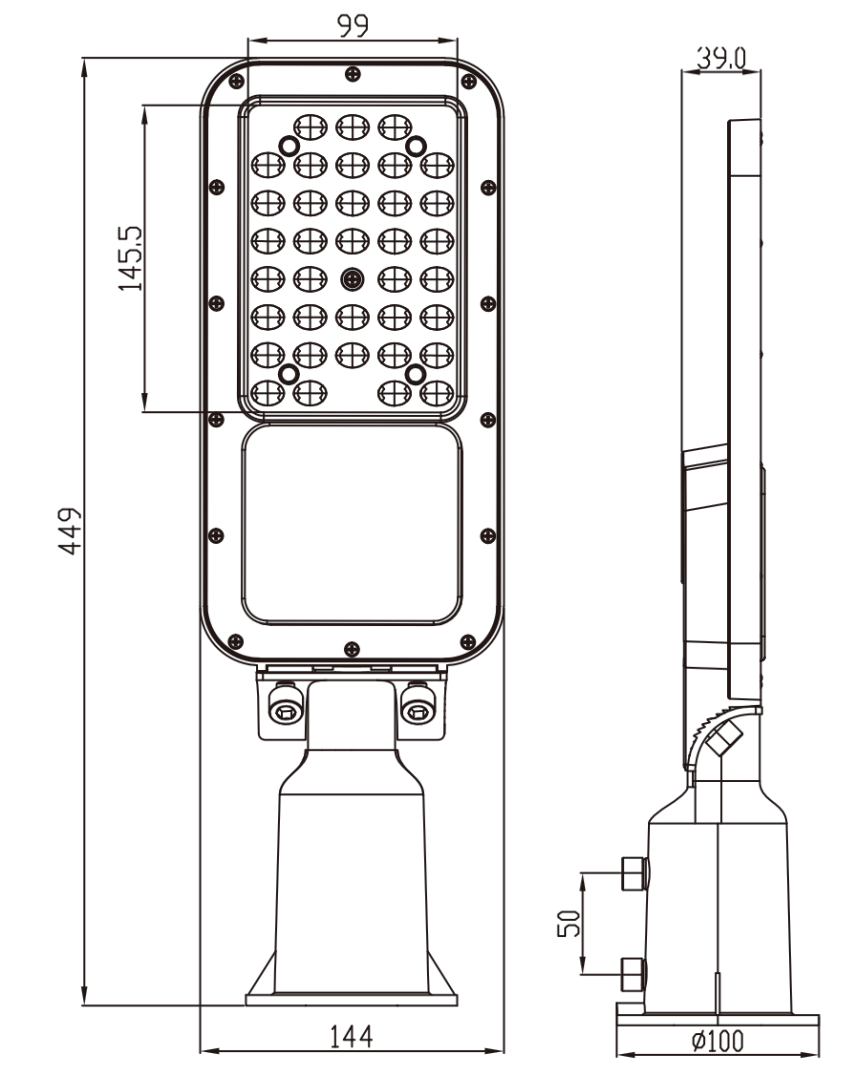

30/50w

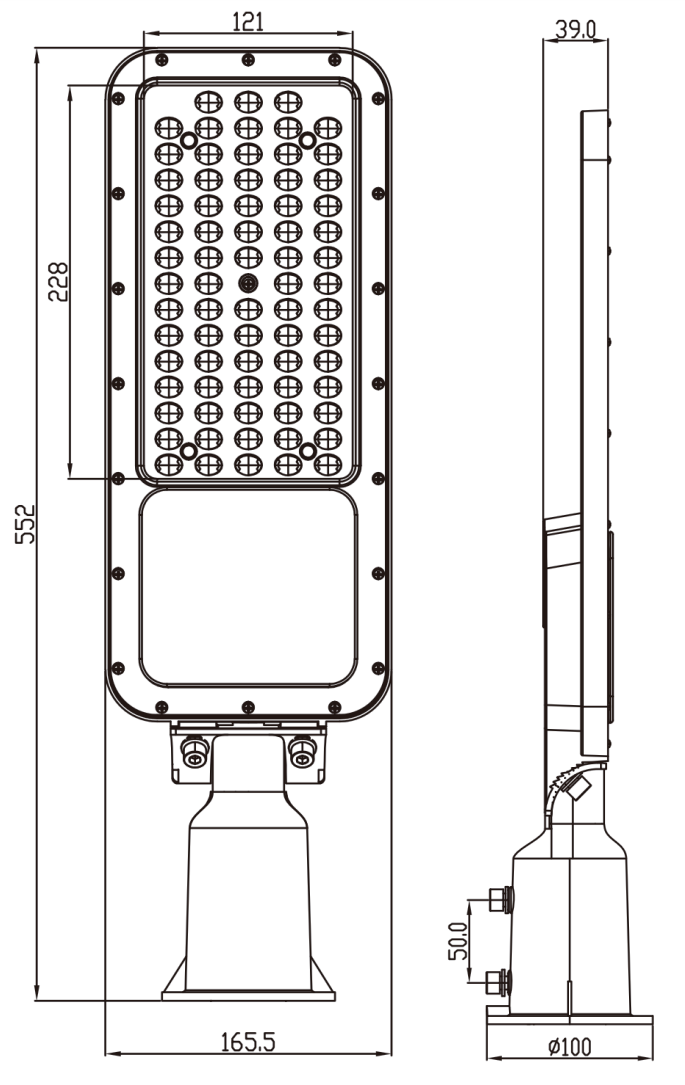

80/100w

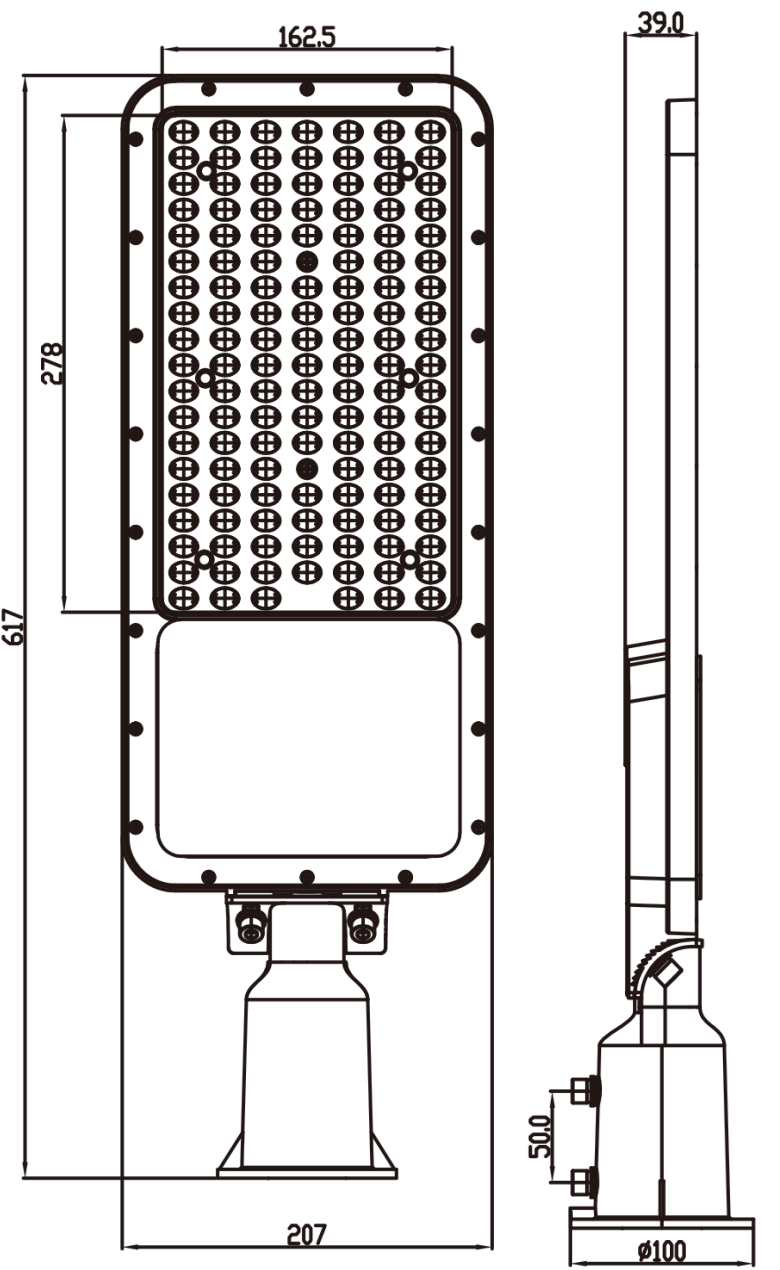

120/150w

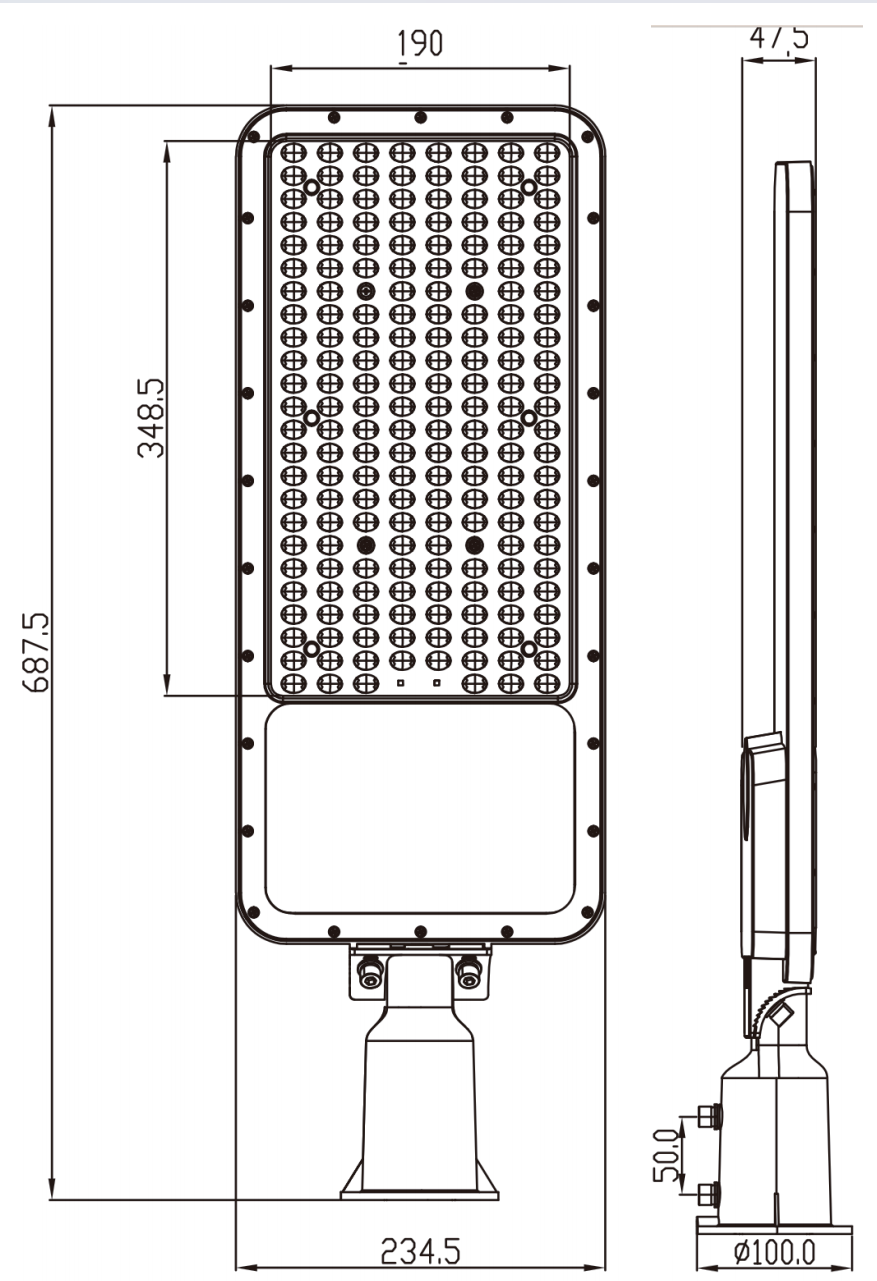

200w
