Lumileds chips, high brightness, low light decay & long lifeme.lnternational driver brand, overheat protection, high convert efficiency, high PF & surge protection.ADC12 is die cast and has high thermal conductiv···
Lumileds chips, high brightness, low light decay & long lifeme.
lnternational driver brand, overheat protection, high convert efficiency, high PF & surge protection.
ADC12 is die cast and has high thermal conductivity, which allows heat to be quickly dissipated from the body,balances the temperature inside and outside the lamp body, reduces temperature differences, lowers the junctiontemperature of the light source, and reduces light attenuation of the light source.
| photoelectric parameters | |||||
| Model | ROL06 | ROL06 | ROL06 | ROL06 | ROL06 |
| Power | 30W | 50W | 100W | 150W | 200 |
| Lumen | 4500LM | 7500LM | 15000LM | 22500LM | 30000LM |
| Input voltage | AC100-277V | ||||
| Light efficiency | 150LM/W | ||||
| Lumileds | LUMILEDS | ||||
| CCT | 6000K(selectable3000-6500K） | ||||
| CRI | Ra≥70 | ||||
| PF | ≥0.95 | ||||
| Body material | Aluminum shell material | ||||
| Working Temp. | ’-25℃~+50℃ | ||||
| Life Span | 50000h | ||||
| Warranty | 5 years | ||||
| Size and Application | |||||
| Model | ROL06 | ROL06 | ROL06 | ROL06 | ROL06 |
| Power | 30W | 50W | 100W | 150W | 200 |

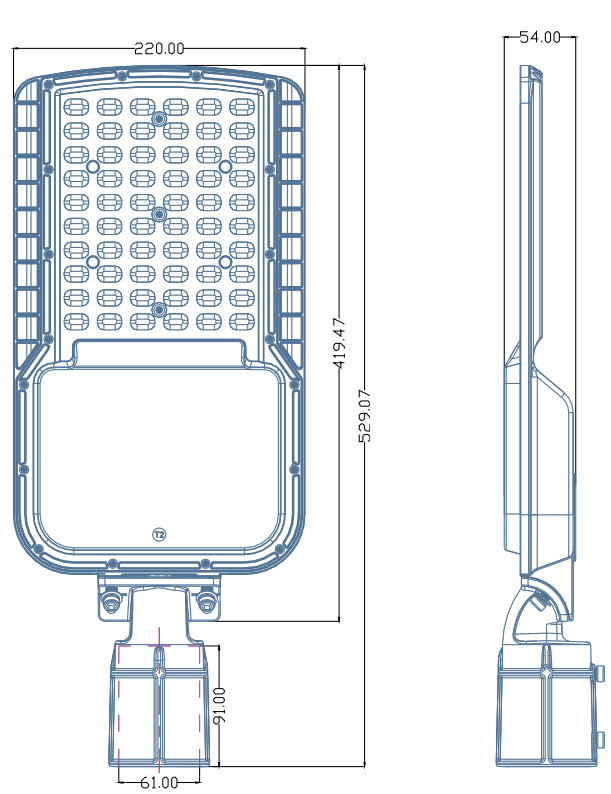

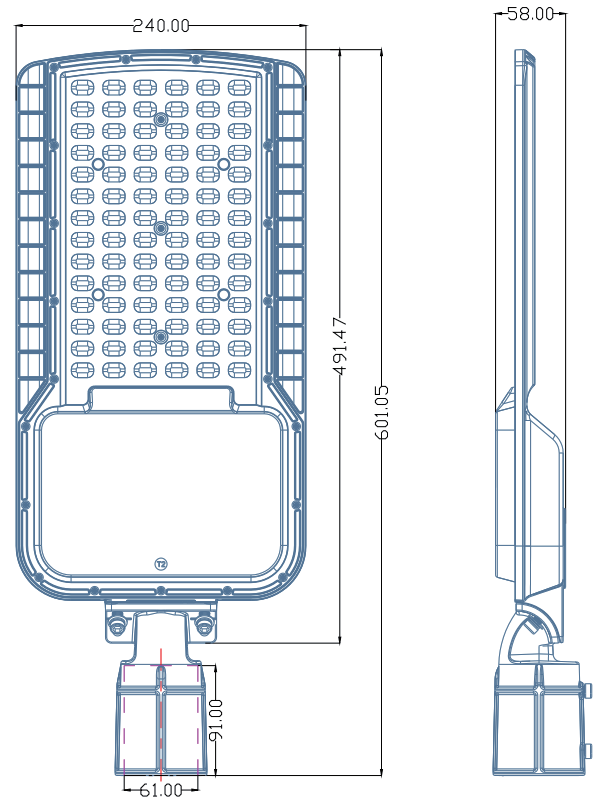

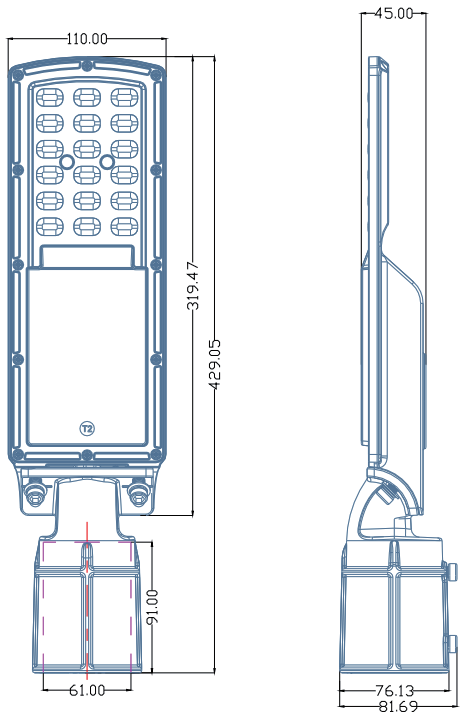

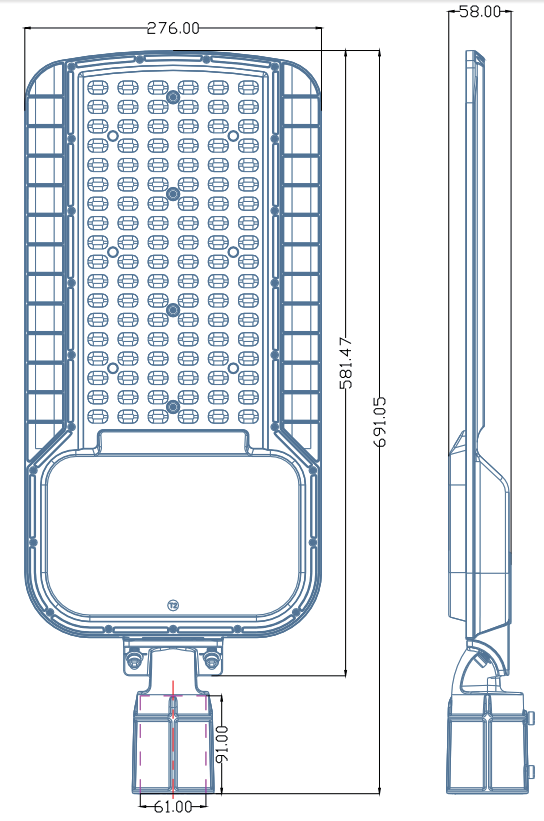

| Product size(mm) | 110*429.05*61 | 180*465.05*61 | 220*529.05*61 | 240*601.05*61 | 276*691.05*61 |
| Packing size(mm) | 460*260*290 | 500*215*120 | 565*255*120 | 630*275*120 | 720*310*120 |
| Net weight(kg) | 0.88 | 1.32 | 1.72 | 2.06 | 2.75 |
30w
50w
100w
150w
200w
