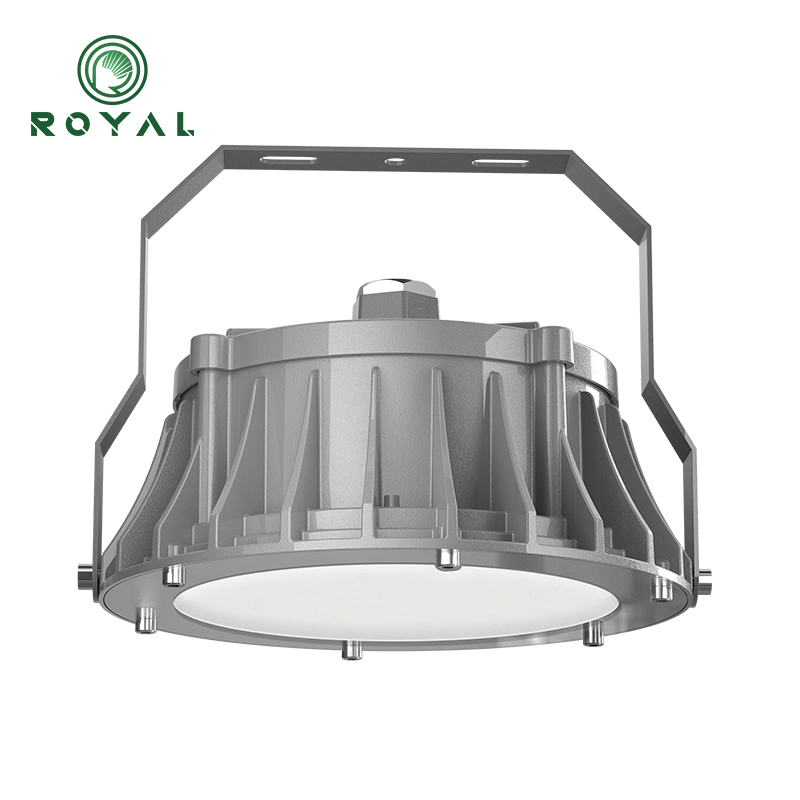

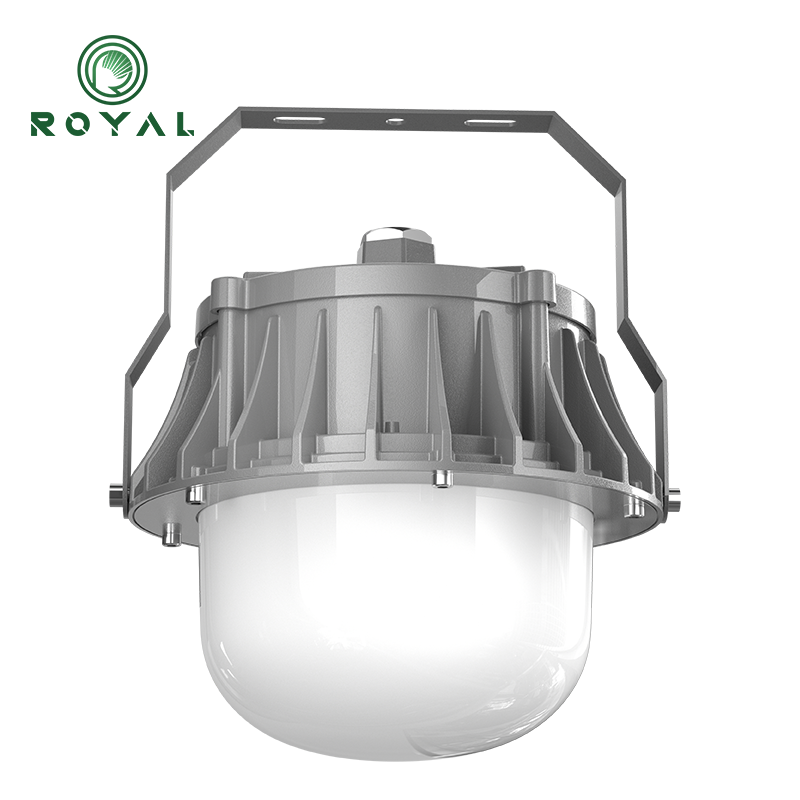

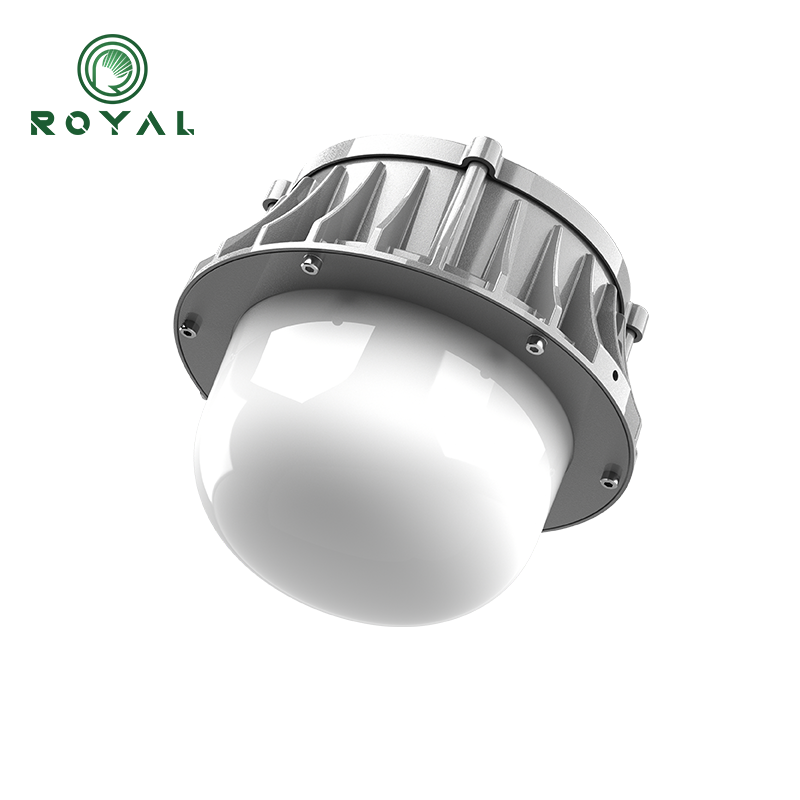

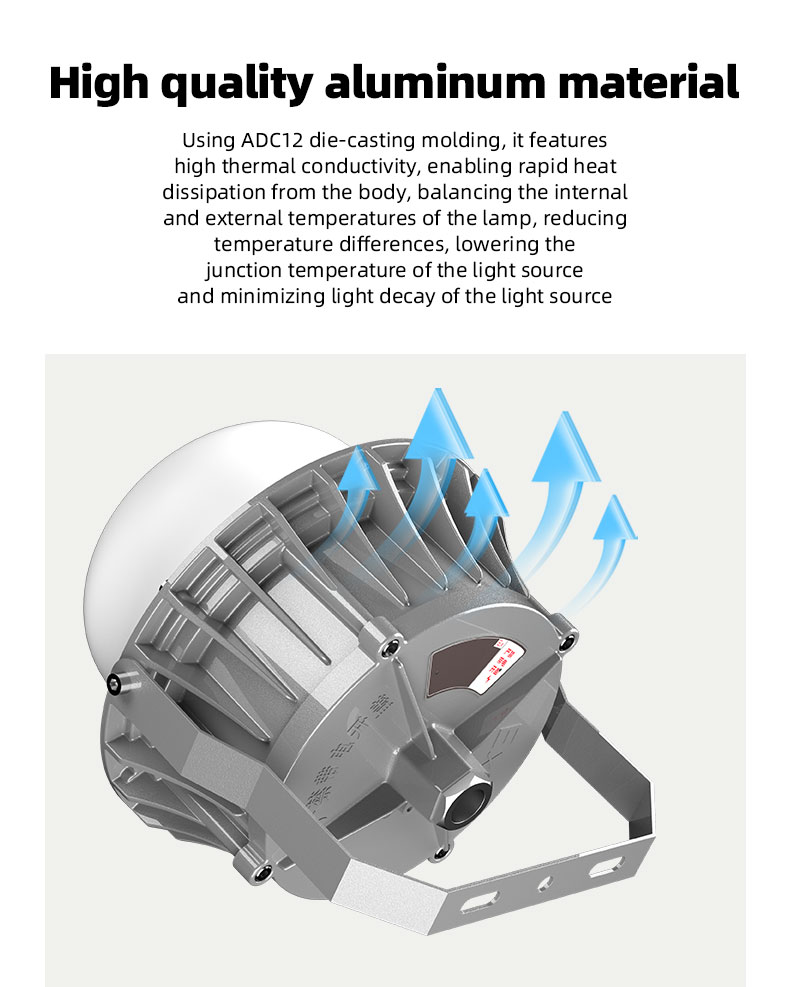

1. The lamp is made of aluminum alloy die-casting and coated with bitter powder on the surface, which has strong corrosion resistance. It uses tempered glass with high light transmittance and strong impact resistance.
2. The exposed fasteners of the lamp are made of high-quality stainless steel material and equipped with rubber gaskets for reliable sealing and strong waterproof, dustproof, and anti-corrosion properties.
3. Built in rubber parts, wire sheaths, and plastic are all made of high-temperature and flame-retardant materials, making them safer and more reliable.
| photoelectric parameters | ||||
| Model | ROF08-50 | ROF08-100 | ROF08-150 | ROF08-200 |
| Power | 50W | 100W | 150W | 200W |
| Lumen | 5500LM | 11000LM | 16500W | 22000LM |
| Input voltage | AC100-265V | |||
| Light efficiency | 110LM/W | |||
| LED driver | Net | |||

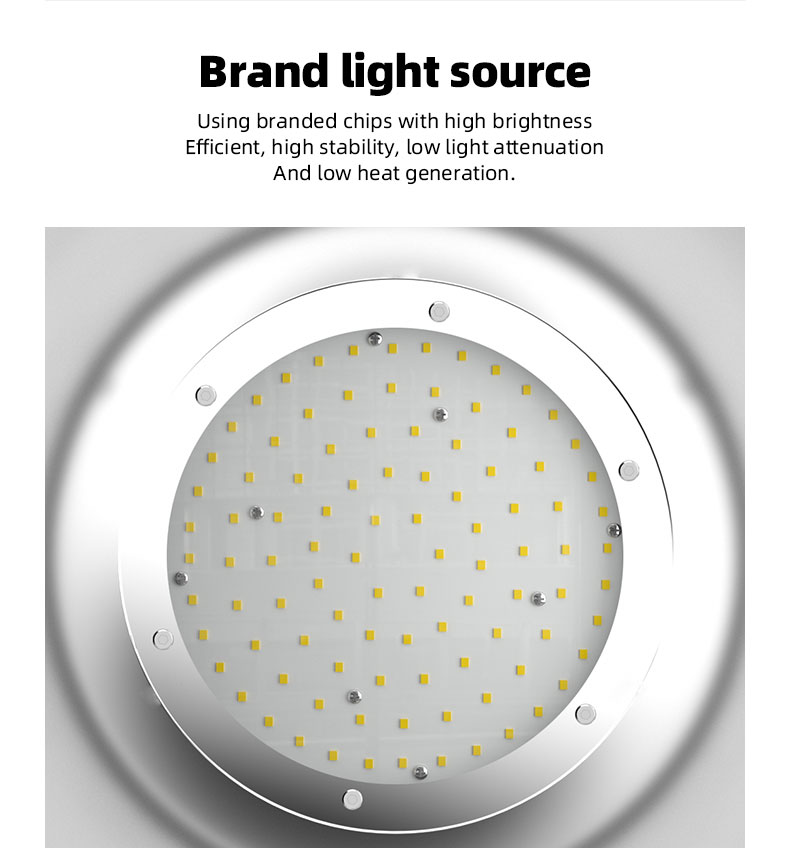

| Lumileds | Philips3030 | |||
| CCT | 6000K(selectable3000-6500K） | |||
| CRI | Ra≥70 | |||
| PF | ≥0.9 | |||
| Beam angle | 110 | |||
| Body material | Aluminum shell material | |||

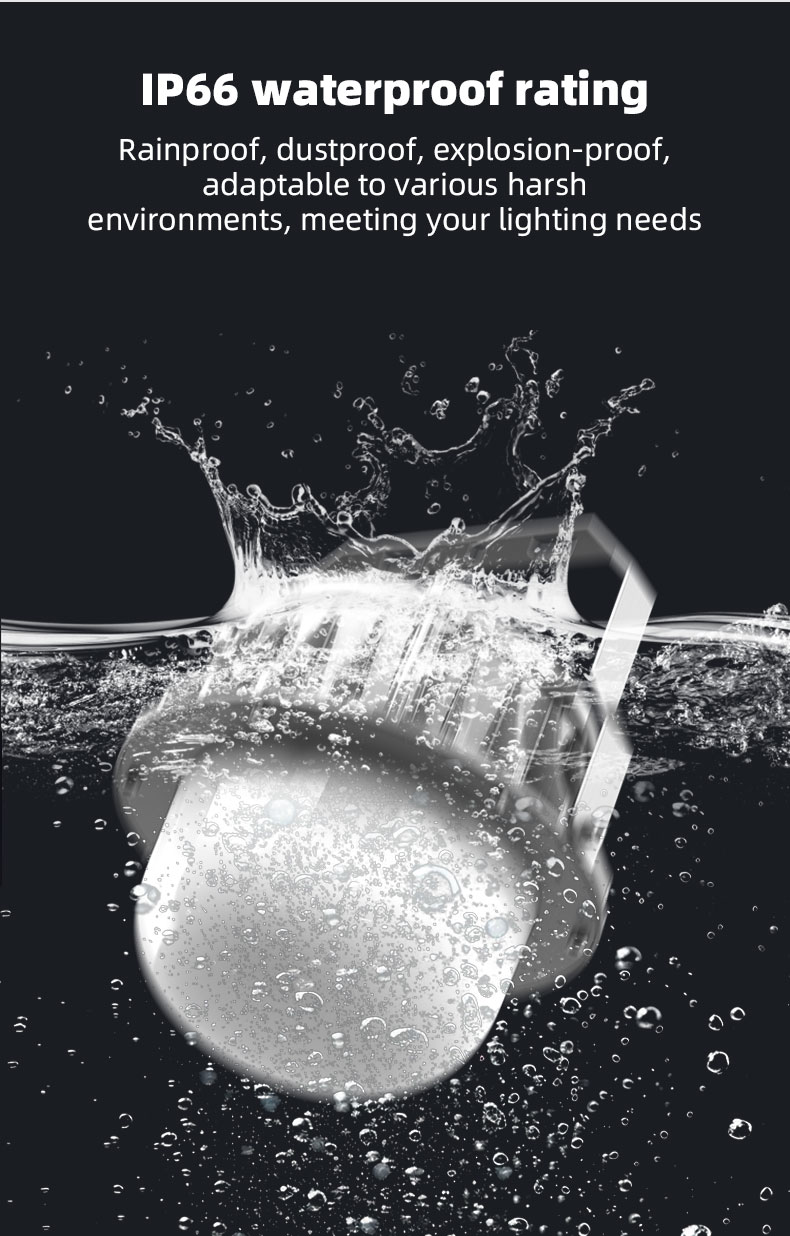

| IP Rating | IP65 | |||
| Working Temp. | ’-25℃~+50℃ | |||
| Life Span | 50000h | |||
| Warranty | Three years | |||
| Size and Application | ||||
| Model | ROF08-50 | ROF08-100 | ROF08-150 | ROF08-200 |
| Power | 50W | 100W | 150W | 200W |

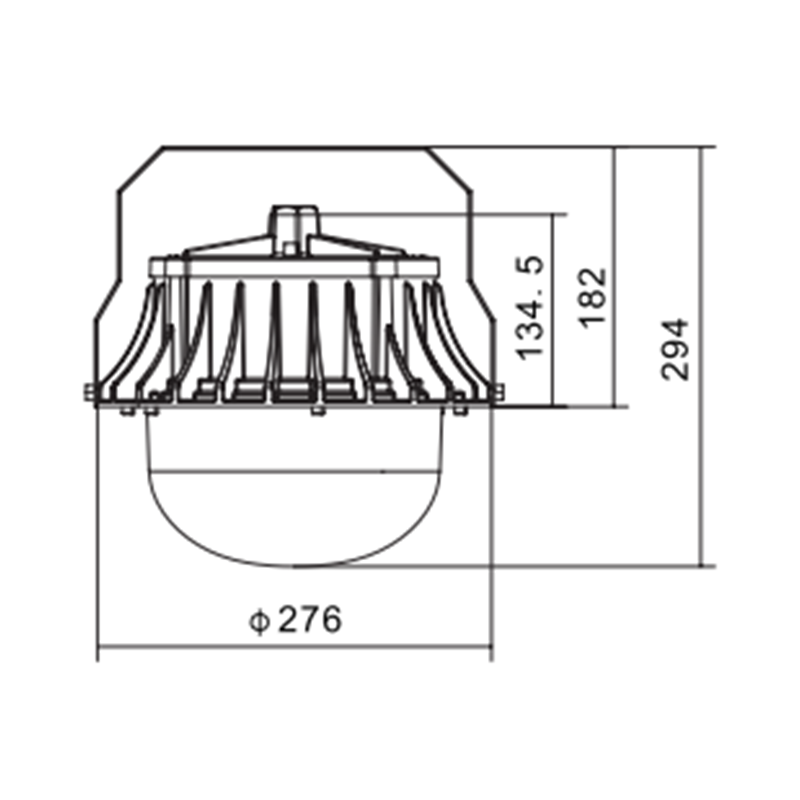

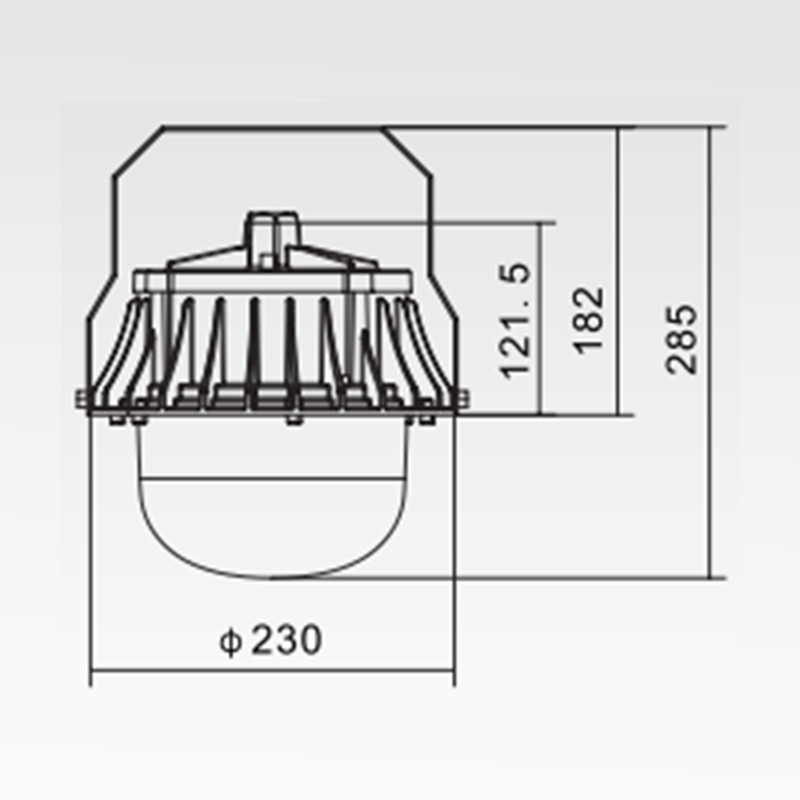

| Product size(mm) | 230*285 | 230*285 | 276*294 | 276*294 |
| Net weight(kg) | / | / | / | / |
| Packing size(mm) | / | / | / | / |
| Number of LED beads | / | / | / | / |
| Installation height(m) | / | / | / | / |
| Installation Space(m) | / | / | / | / |

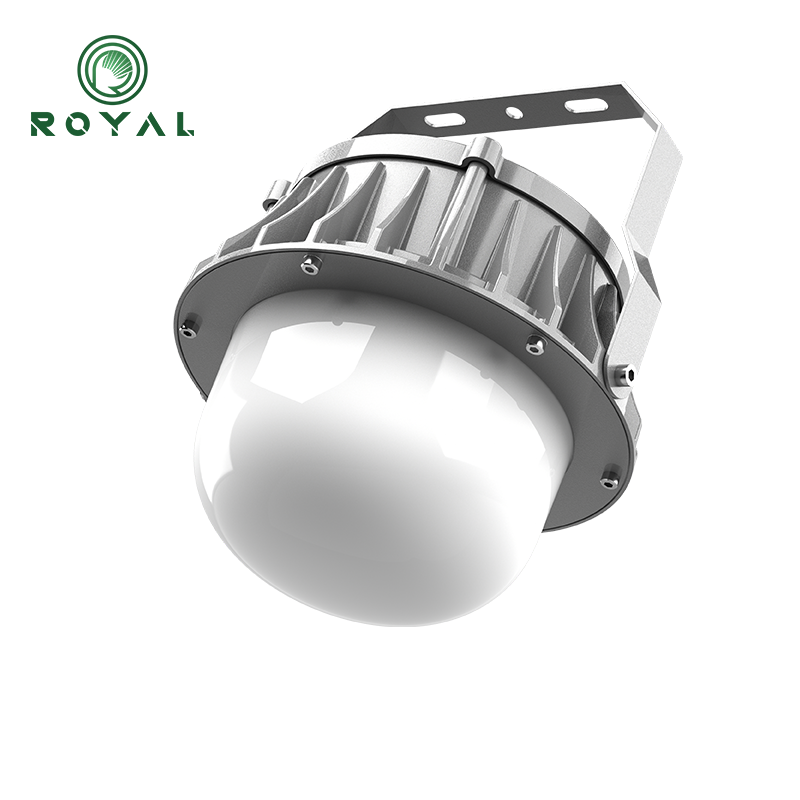

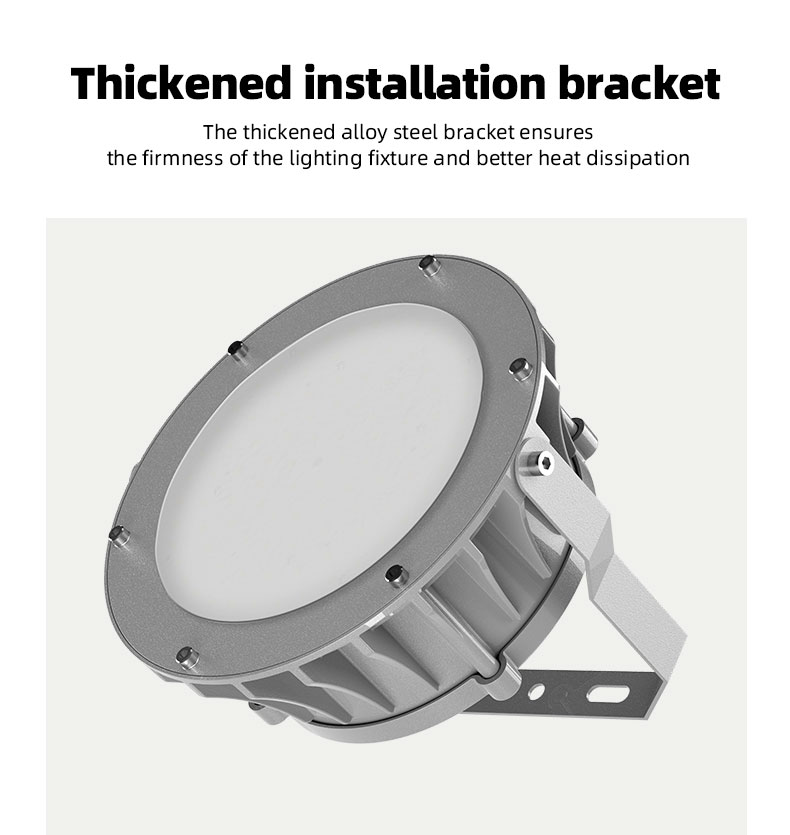

| Installation method | Brackets | |||

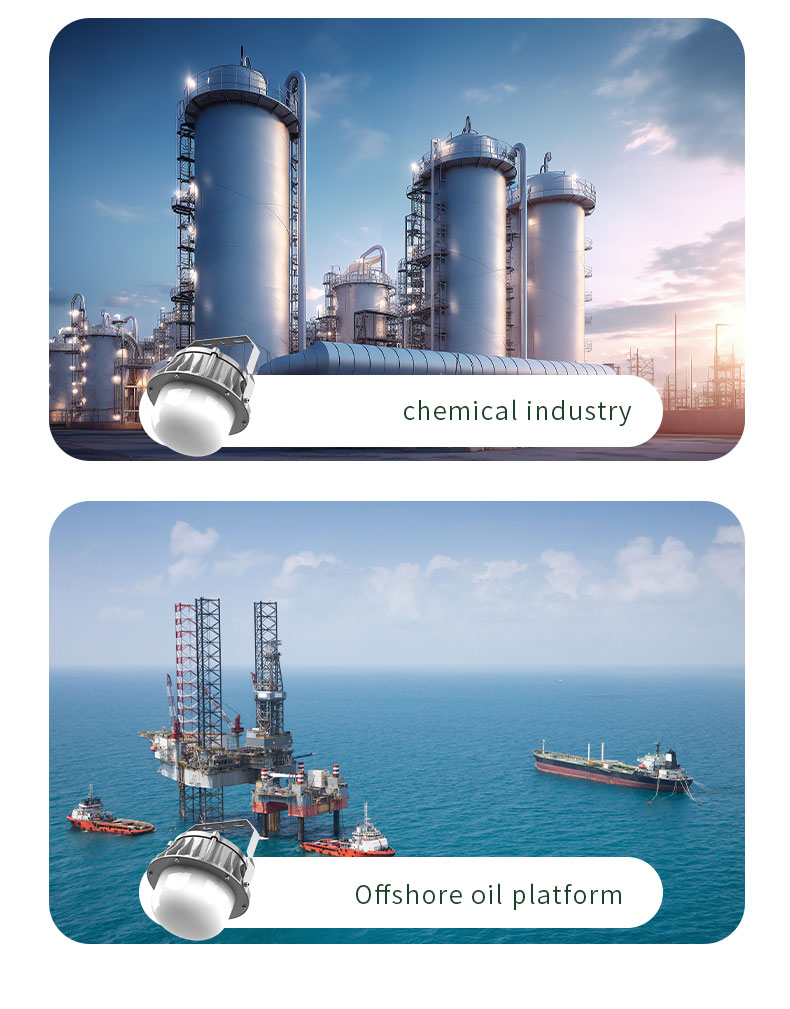

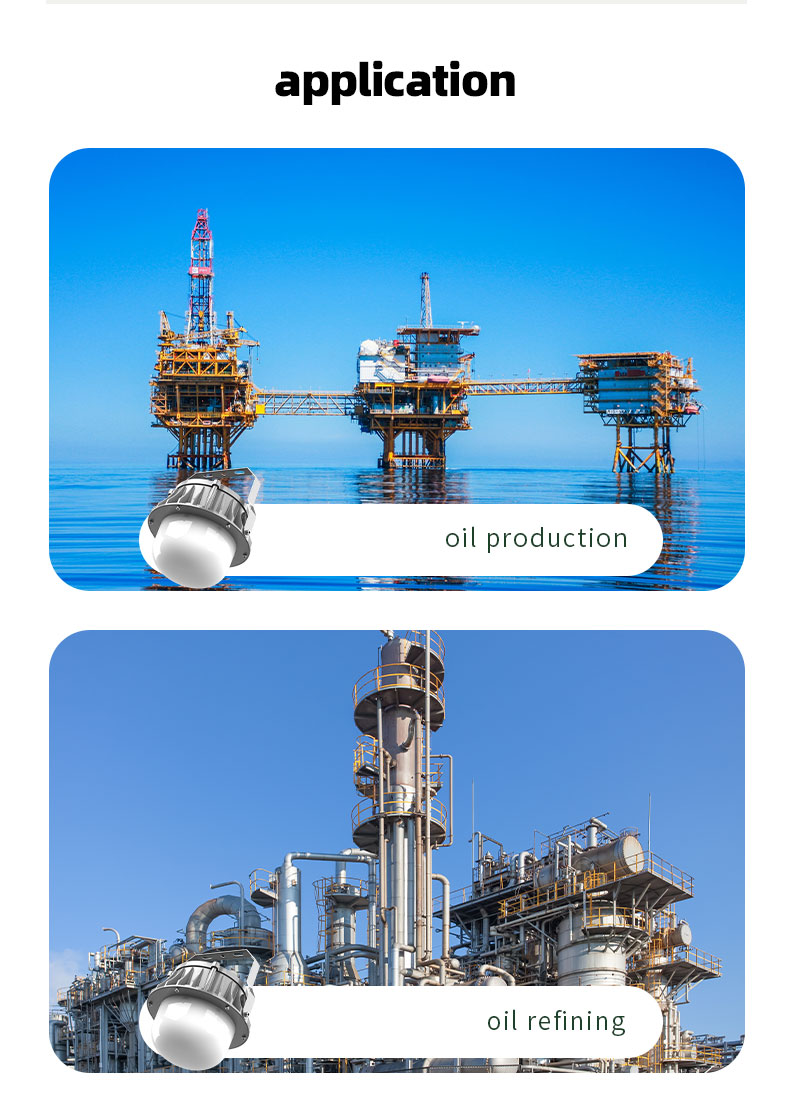

| Application | Oil extraction, refining, chemical industry, military industry | |||
