Features for linear explosion proof light
Application:
Linear explosion proof lamps are widely used in places such as oil refining, chemical engineering, storage tanks,
and engine rooms in industries like petroleum, chemical engineering,pharmaceuticals, metallurgy. and aviation.
Since all these industries are flammable and explosive sites, it is very important to choose lighting equipment with
good explosion -proof performance. Linear explosion proof lamps are increasingly widely used in these industries and
have become essential equipment to ensure work safety.
| photoelectric parameters | ||
| Model | ROF06-36 | ROF06-80 |
| Power | 36W | 80W |
| Lumen | 3960LM | 8800LM |
| Input voltage | AC100-265V | |
| Light efficiency | 110LM/W | |
| LED driver | Net | |
| Lumileds | Philips3030 | |
| CCT | 6000K(selectable3000-6500K） | |
| CRI | Ra≥70 | |
| PF | ≥0.9 | |
| Beam angle | 110 | |
| Body material | Aluminum shell material | |
| IP Rating | IP65 | |
| Working Temp. | ’-25℃~+50℃ | |
| Life Span | 50000h | |
| Warranty | Three years | |
| Size and Application | ||
| Model | ROF06-36 | ROF06-80 |
| Power | 36W | 80W |
| Product size(mm) | 600*115 | 1205*115 |
| Net weight(kg) | 1.72kg | 2.4kg |
| Packing size(mm) | / | / |
| Number of LED beads | / | / |
| Installation height(m) | / | / |
| Installation Space(m) | / | / |
| Installation method | Brackets | |
| Application | Oil extraction, refining, chemical industry, military industry | |

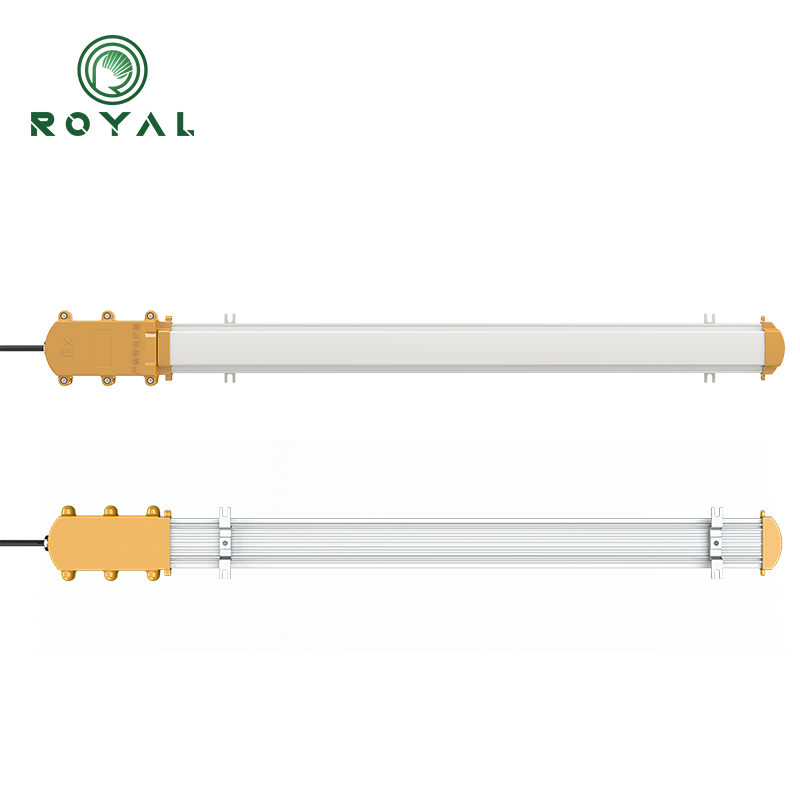

Drawing for linear explosion proof light
