Features for Explosion proof high bay lightBody color: Yollow, grey is availablelamp cover can be matchedInstallation method: suspending, pipe , brackets optional
Features for Explosion proof high bay light
Body color: Yollow, grey is available
lamp cover can be matched

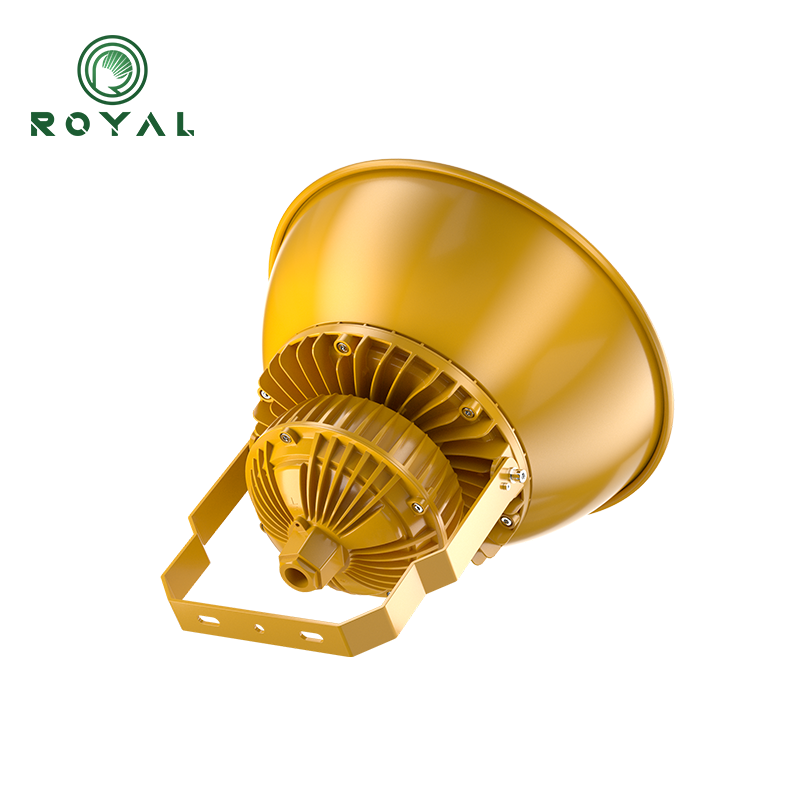

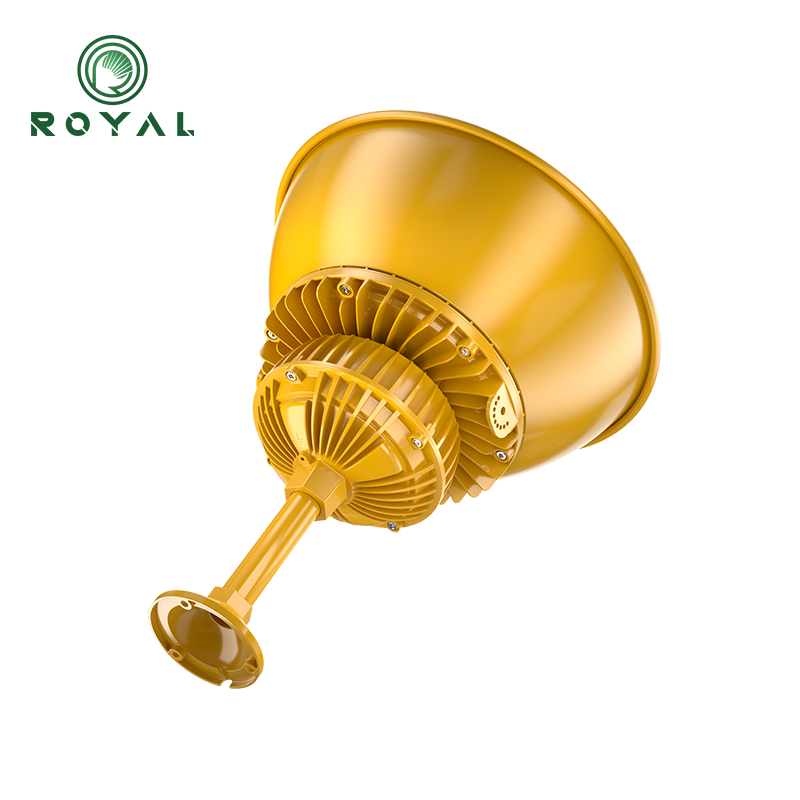

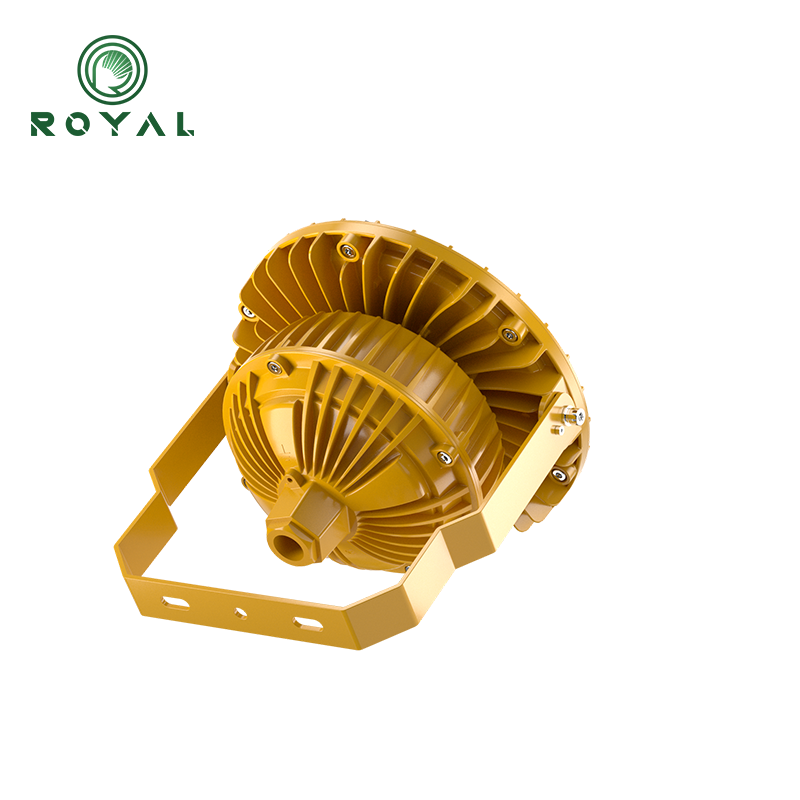

Installation method: suspending, pipe , brackets optional
| photoelectric parameters | ||||||
| Model | ROF05-50 | ROF05-70 | ROF05-100 | ROF05-150 | ROF05-200 | ROF05-250 |
| Power | 50W | 70W | 100W | 150W | 200W | 250W |
| Lumen | 5500LM | 7700LM | 11000LM | 16500LM | 22000LM | 27500LM |
| Input voltage | AC100-277V | |||||
| Light efficiency | 110LM/W | |||||
| LED driver | Net/ Sosen, optional | |||||
| CCT | 6000K(selectable3000-6500K） | |||||
| CRI | Ra≥70 | |||||
| PF | ≥0.9 | |||||
| Beam angle | 110 | |||||

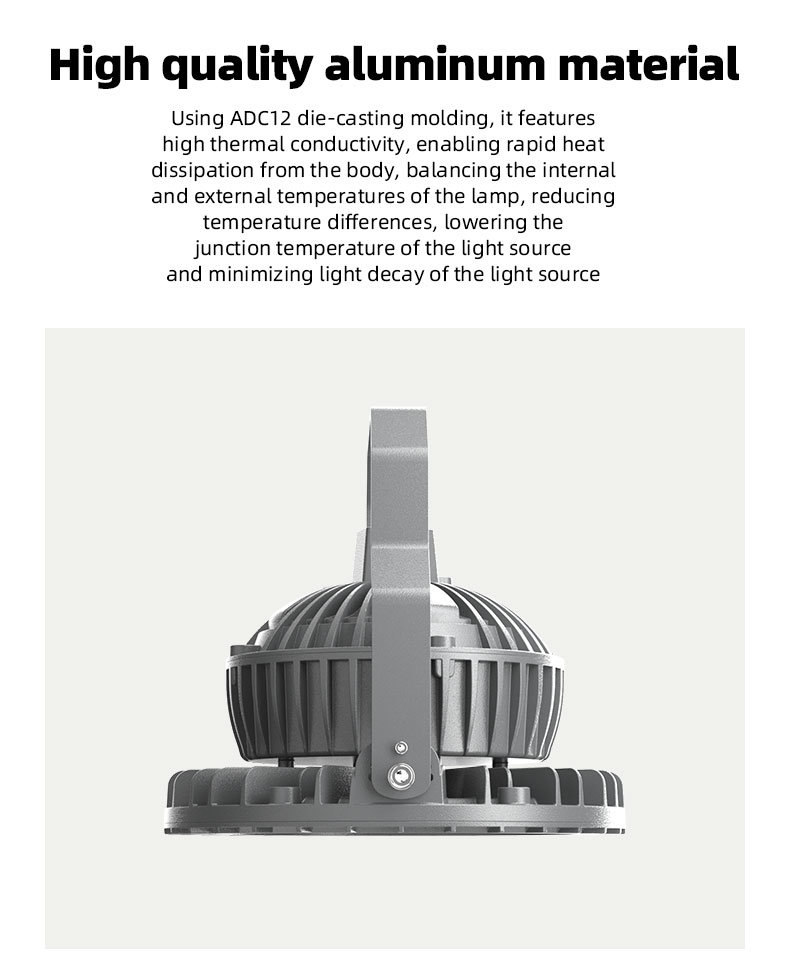

| Body material | Aluminum shell material | |||||

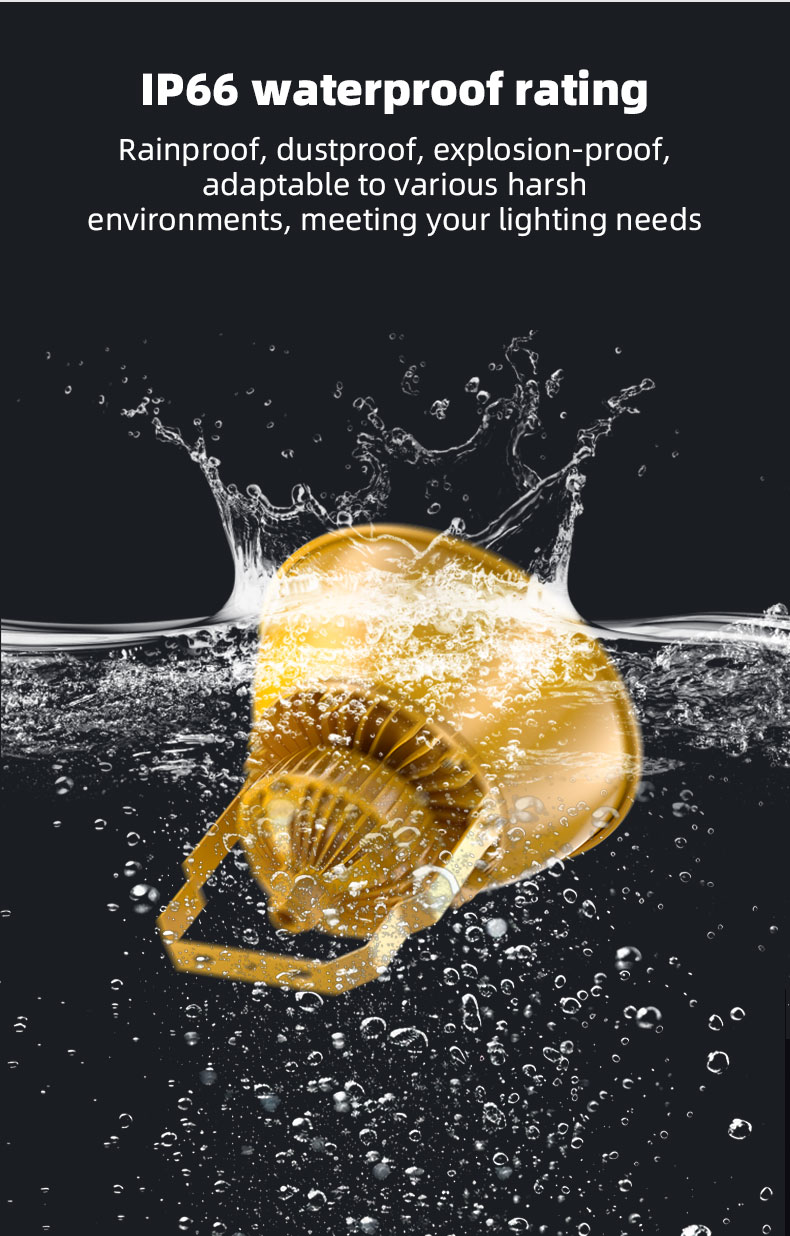

| IP Rating | IP66 | |||||
| Working Temp. | ’-25℃~+50℃ | |||||
| Life Span | 50000h | |||||
| Warranty | Three years | |||||
| Size and Application | ||||||
| Model | ROF05-50 | ROF05-70 | ROF05-100 | ROF05-150 | ROF05-200 | ROF05-250 |
| Power | 50W | 70W | 100W | 150W | 200W | 250W |
| Product size(mm) | 230*206 | 230*206 | 270*221 | 270*221 | 330*235 | 330*235 |
| Net weight(kg) | 2.4kg | 2.6kg | 3.5kg | 3.9kg | 4.7kg | 5kg |
| Packing size(mm) | 255*255*235 | 255*255*235 | 300*300*245 | 300*300*245 | 355*355*260 | 355*355*260 |

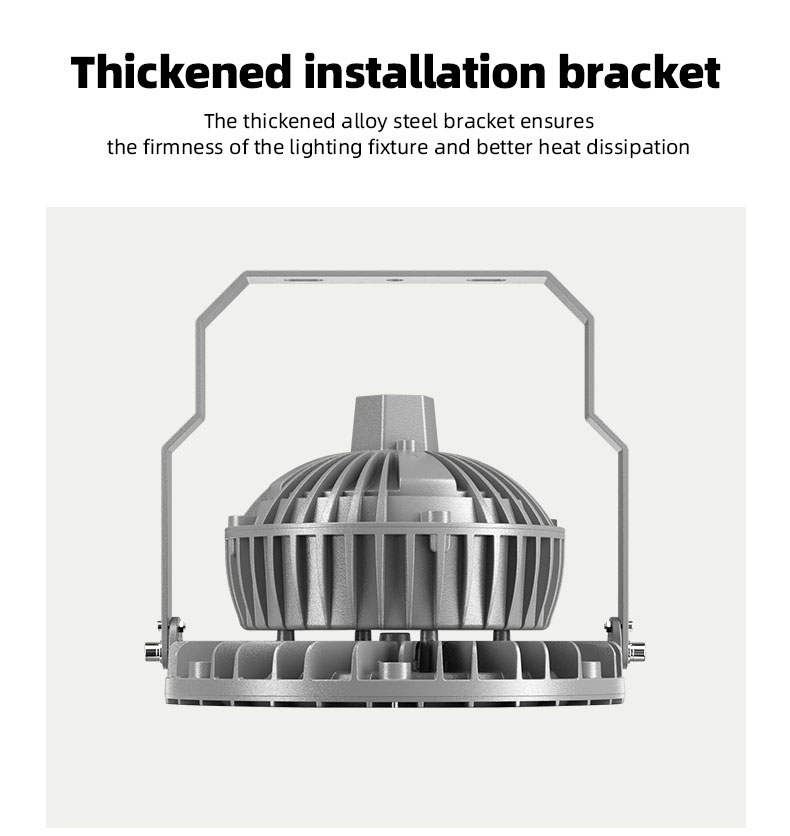

| Installation method | Brackets | |||||

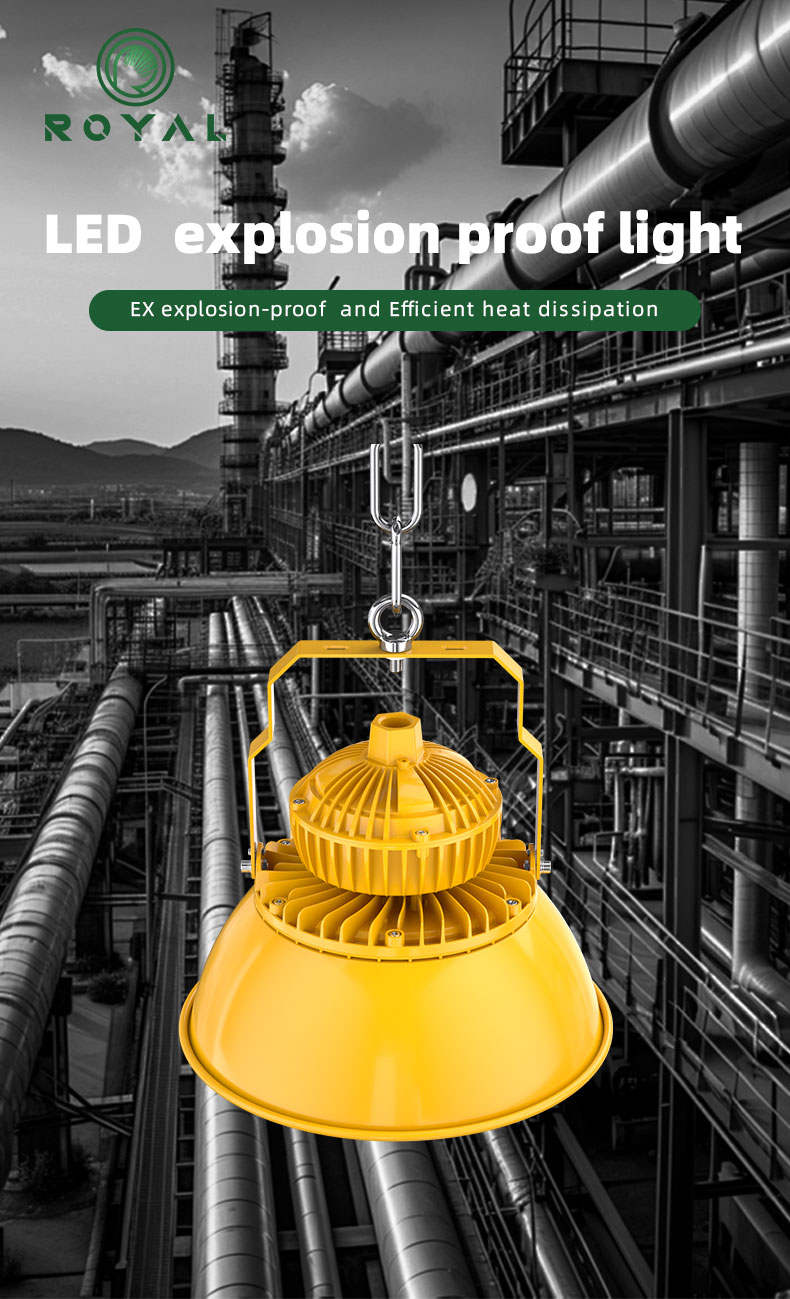

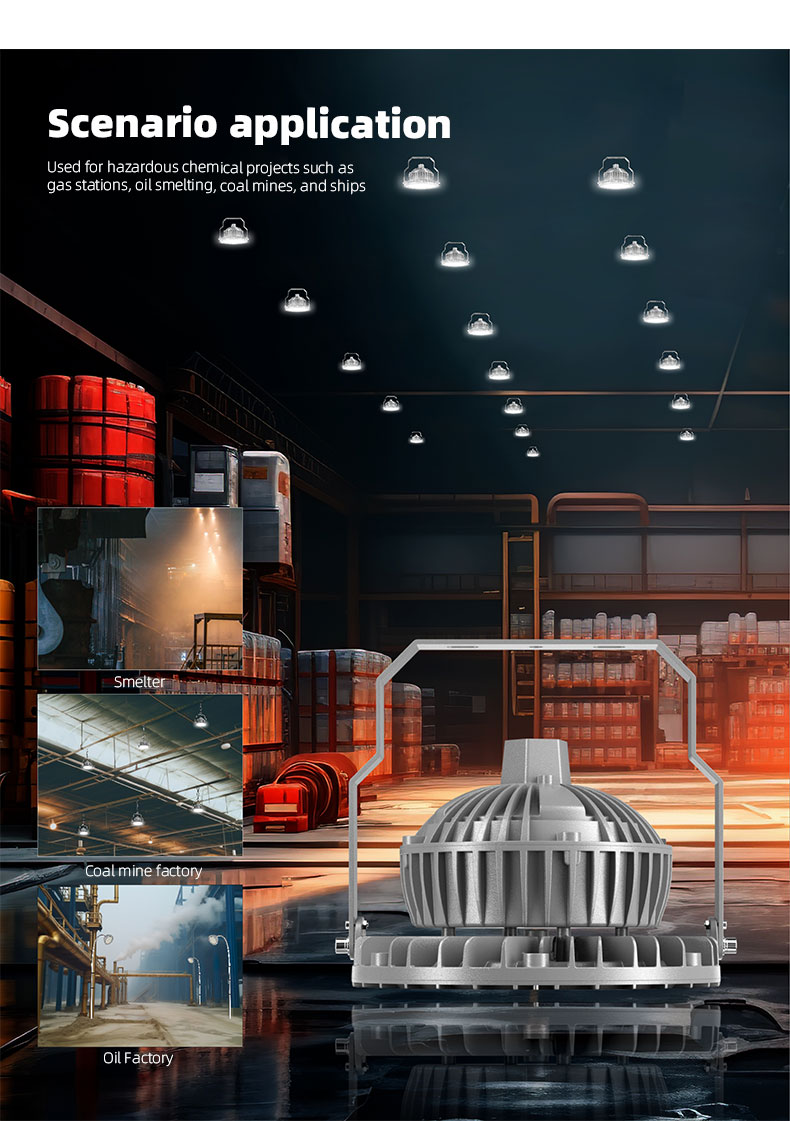

| Application | Oil extraction, refining, chemical industry, military industry | |||||
Drawing
