| photoelectric parameters | |||||
| Model | ROL02-50 | ROL02-100 | ROL02-150 | ROL02-200 | ROL02-300 |
| Power | 50W | 100W | 150W | 200W | 300W |
| Lumen | 6500LM | 13000LM | 19500LM | 26000LM | 39000LM |
| Input voltage | AC100-265V | ||||
| Light efficiency | 130LM/W | ||||
| LED driver | Suncom | ||||
| Lumileds | Puri2235 | ||||
| CCT | 6000K(selectable3000-6500K） | ||||
| CRI | Ra≥70 | ||||
| PF | ≥0.9 | ||||
| Beam angle | 70*140 | ||||
| Body material | Aluminum shell material | ||||
| IP Rating | IP65 | ||||
| Working Temp. | ’-25℃~+50℃ | ||||
| Life Span | 50000h | ||||
| Warranty | Three years | ||||

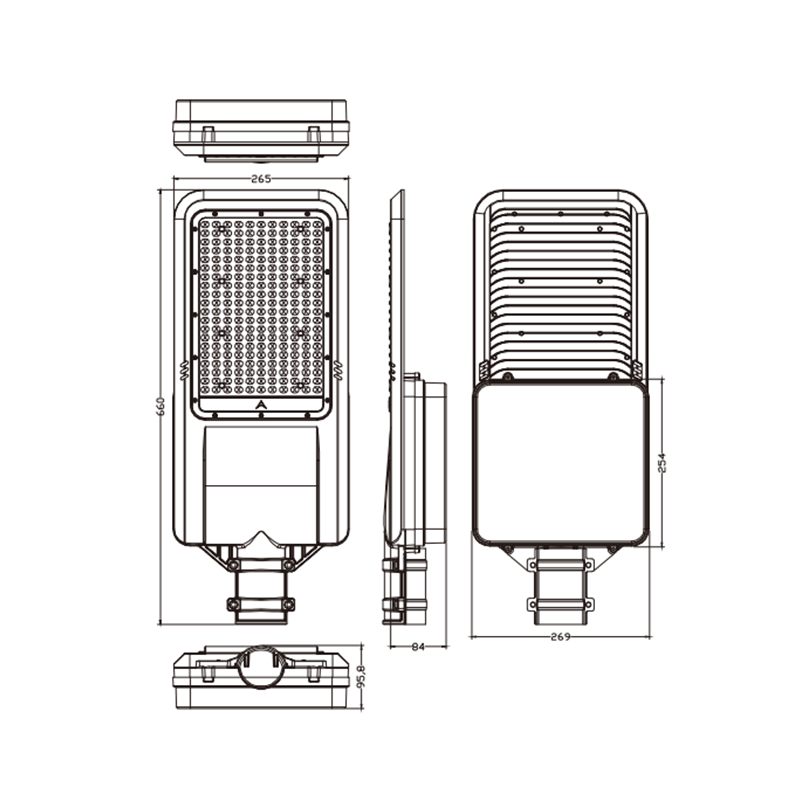

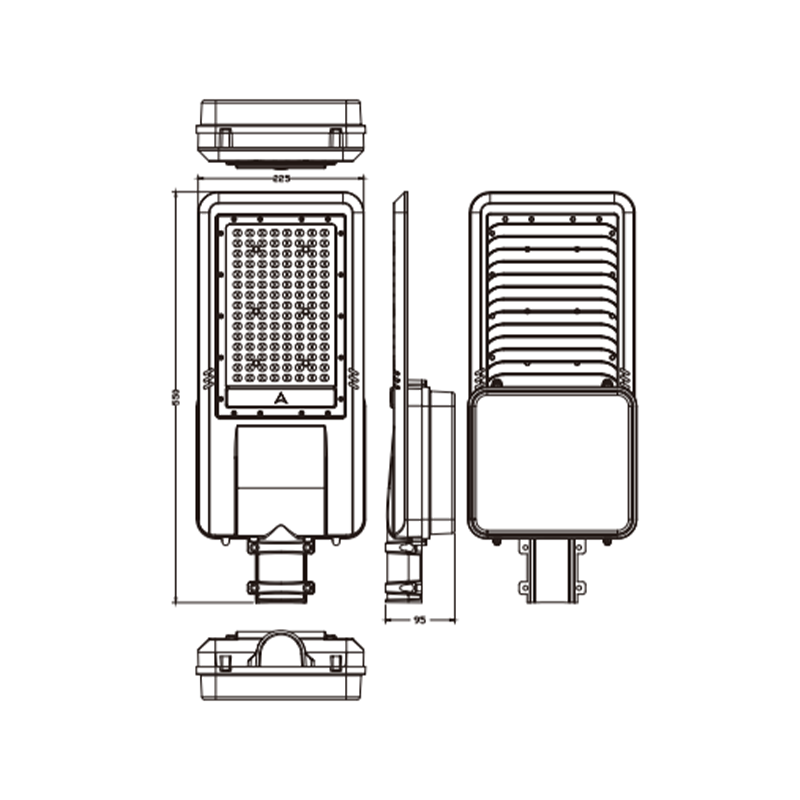

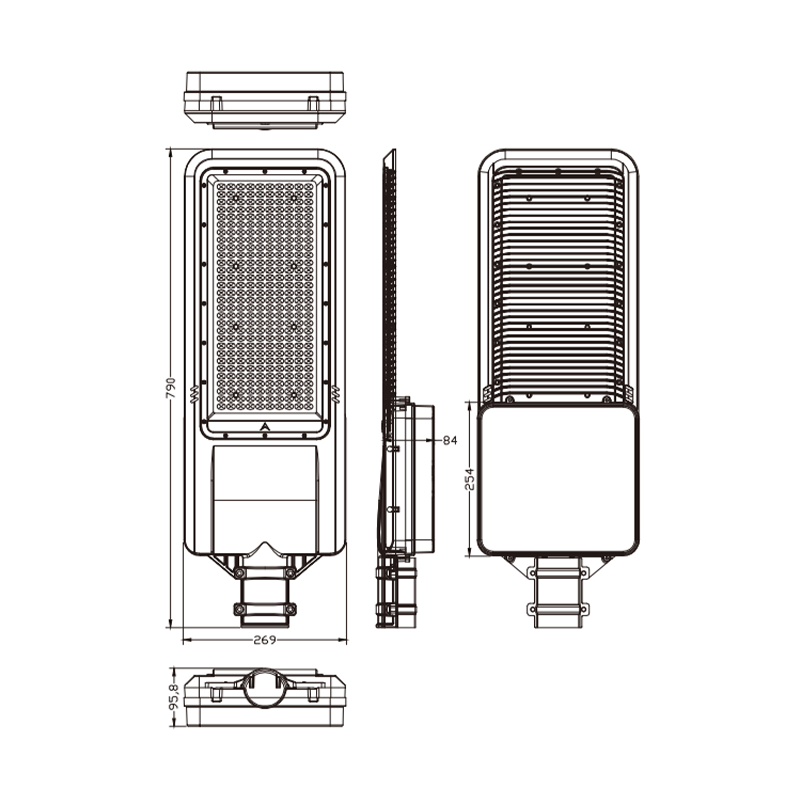

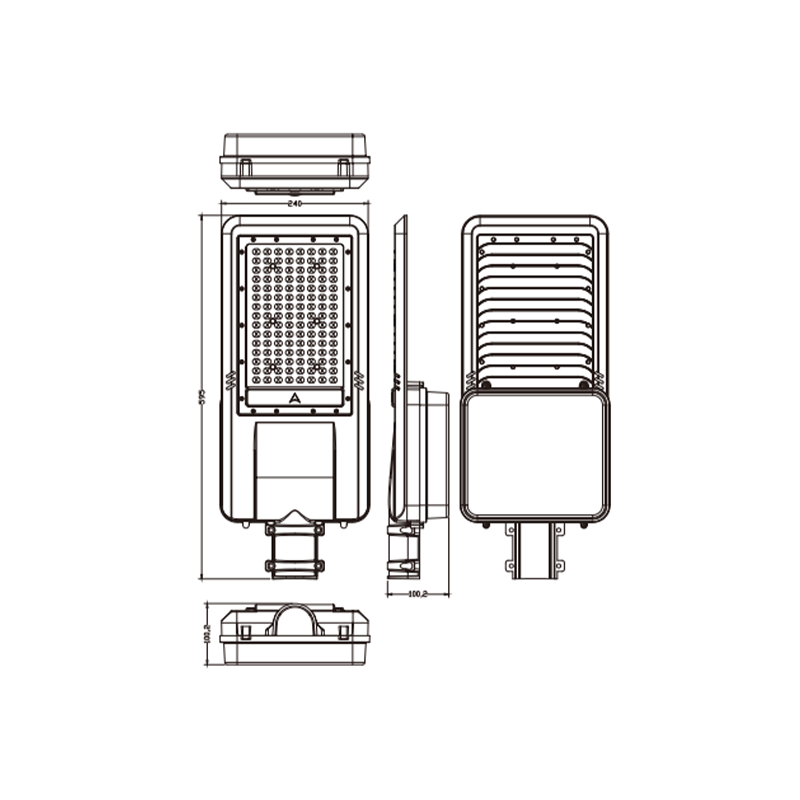

| Size and Application | |||||
| Model | ROL02-50 | ROL02-100 | ROL02-150 | ROL02-200 | ROL02-300 |
| Power | 50W | 100W | 150W | 200W | 300W |
| Product size(mm) | 50*21*6.5 | 55*22.5*6.5 | 60*24.5*9 | 66*26.5*7 | 79*26.5*10 |
| Net weight(kg) | / | / | / | / | / |
| Packing size(mm) | 53*21.5*9 | 56*23*10 | 61*26*12 | 67*28*10 | 80*28*10 |
| Number of LED beads | / | / | / | / | / |
| Installation height(m) | / | / | / | / | / |
| Installation Space(m) | / | / | / | / | / |
| Installation method | Brackets | ||||
| Application | Tunnels, squares, sports stadiums, airports and other places | ||||
